3M Products & Supplies

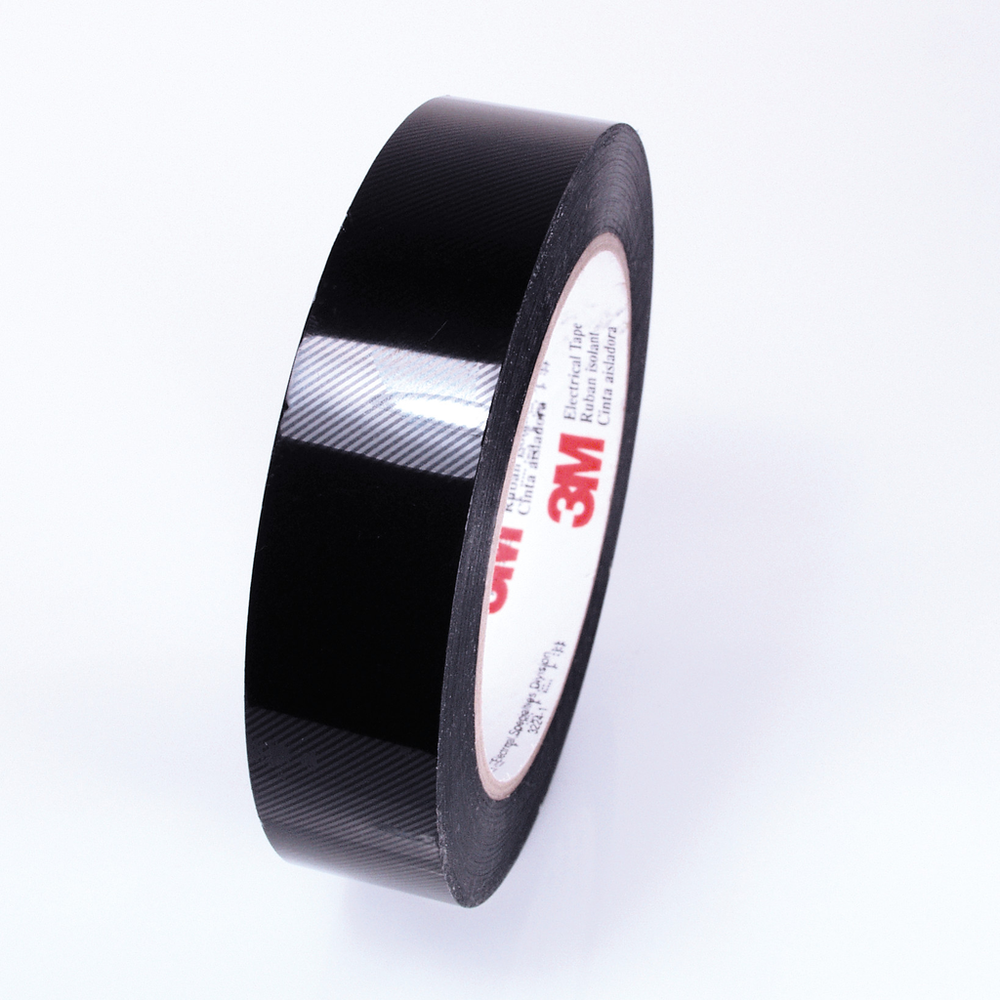

3M™ Polyester Film Electrical Tape 1350F-1, 24 in 72 yd Log, 3-in plastic core, Log roll, Black, 1 Roll/Case - 7000132838

SKU: 7000132838
MPN: 7000132838
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128582961
3M ID: 80611088743
5 Digit UPC: 58296
$616.00 each
Hurry up! Current stock:

Product Description

3M™ Polyester Film Electrical Tape 1350F-1 tape is a yellow, white, or black, UL recognized flame retardant, 2.5-mil (0.064 mm) thick tape composed of a 1-mil (0.025 mm) polyester film backing coated on one side with a non-corrosive, acrylic pressure-sensitive adhesive.

Features

  • UL Recognized and CSA certified 130°C temperature rating
  • UL Recognized flame retardant
  • Pressure-sensitive acrylic adhesive with polyester film backing
  • Printable
  • 5 year shelf-life when stored per 3M recommended conditions
  • Nominal thickness: 0.064 mm (2.5 mil)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Adhesive TypeAcrylic
Insulation Resistance> 10^6 megohms
ApplicationInsulation
Overall Width (Metric)609.6
Overall Width (Imperial)24.0
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialPolyester
Dielectric Strength UOMV
Total Tape Thickness without Liner (Metric)0.064
Dielectric Strength5500.0
Minimum Operating Temperature (Fahrenheit)32.0
Total Tape Thickness without Liner (Imperial)2.5
Maximum Operating Temperature (Celsius)130.0
Tape GradeProfessional
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Product ColorBlack
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed
Electrolytic Corrosion Factor1.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)266.0
