3M Products & Supplies

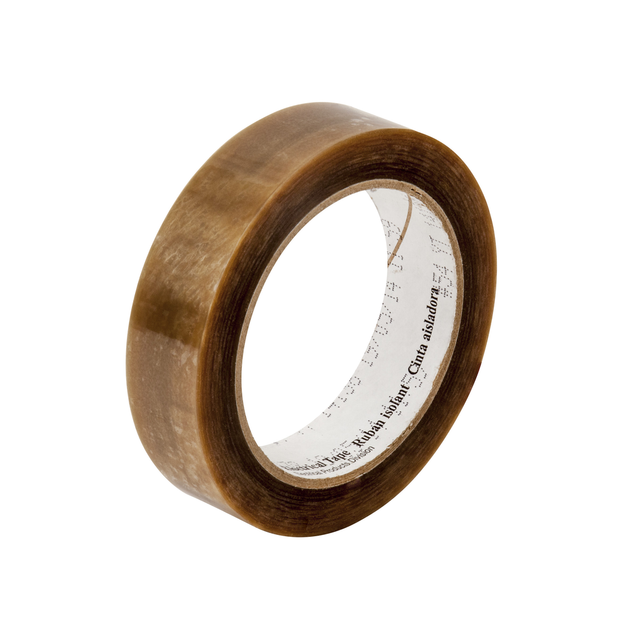

3M™ Polyester Film Electrical Tape 54, Translucent, Rubber Thermosetting Adhesive, 22.5 in x 72 yd, Log Roll, 1 Roll/Case - 7000057484

SKU: 7000057484
MPN: 7000057484
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007273998
3M ID: 80008004717
5 Digit UPC: 27399
$540.62 each
Hurry up! Current stock:

Product Description

3M™ Tape 54 is a polyester film electrical tape that is suitable for wrapping fine wire coils. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Suitable for wrapping fine wire coils
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Highly conformable with a thermosetting, rubber adhesive
  • General-purpose tape
  • UL Listed and RoHS 2011/65/EU Compliant

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Elongation at Break100
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeThermosetting Rubber
ApplicationInsulation
Maximum Operating Temperature (Fahrenheit)266.0
Overall Length (Imperial) UOMyd
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Electrolytic Corrosion Factor1.0
Overall Width (Metric)571.5
Overall Length (Metric) UOMm
Dielectric Strength UOMV
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)66.0
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Celsius)130.0
Product ColorTransparent
Minimum Operating Temperature (Celsius)0.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)72.0
Total Tape Thickness without Liner (Metric)0.064
Overall Width (Imperial)22.5
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.025
Minimum Operating Temperature (Fahrenheit)32.0
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Dielectric Strength5000.0
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Imperial)2.5
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMYear
