3M Products & Supplies

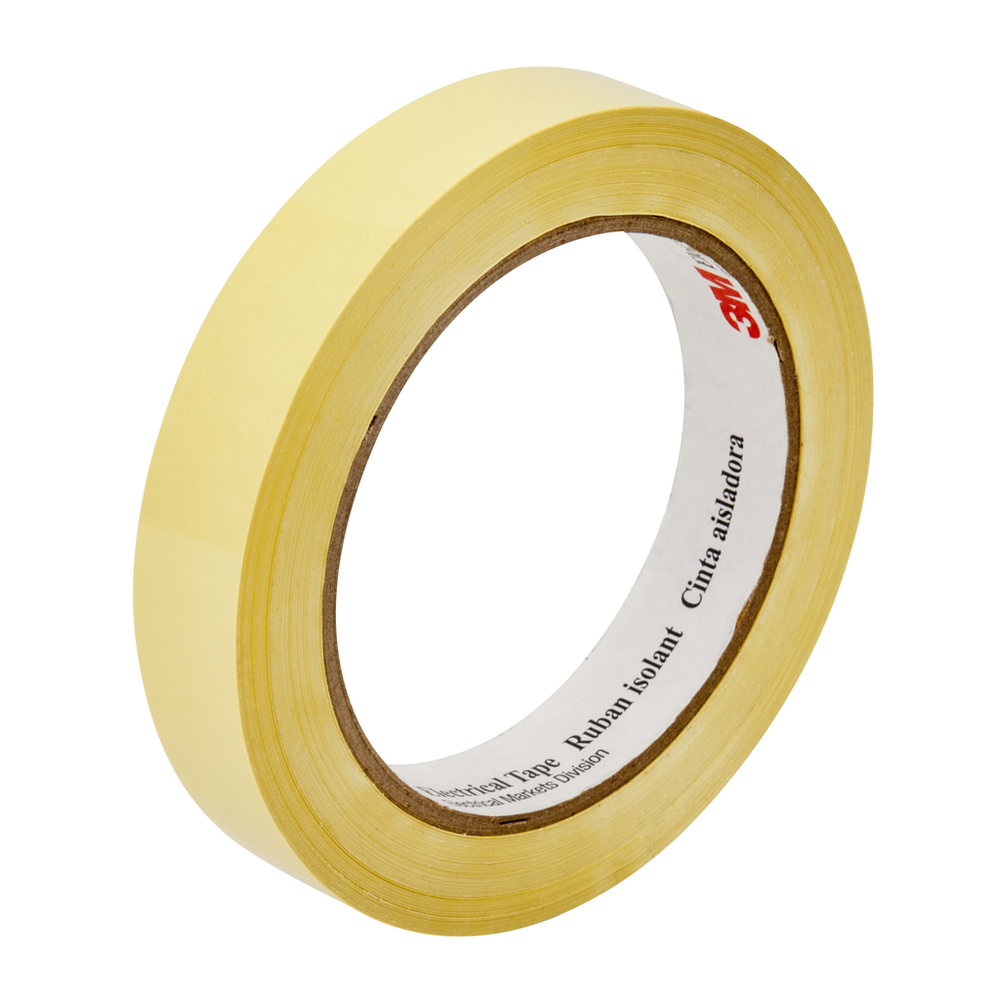

3M™ Polyester Film Electrical Tape 56, 1 1/2 in x 72 yd, 3-in paper core, Bulk (SLP), 24 Rolls/Case - 7100074552

Sold As: 24-Pack
SKU: 7100074552
MPN: 7100074552
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128563731
3M ID: 80611429616
5 Digit UPC: 56373
$1,125.57 ($46.90 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
  • Suitable for use as a coil cover and as layer insulation
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Backing (Carrier) MaterialPolyester
Overall Length (Imperial)72.0
Minimum Operating Temperature (Fahrenheit)32.0
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Maximum Operating Temperature (Fahrenheit)266.0
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)1.5
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)38.1
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)0.0
Tape GradeProfessional
ApplicationInsulation
Shelf Life UOMYear
Overall Width (Imperial) UOMin
Overall Length (Metric)66.0
Maximum Operating Temperature (Celsius)130.0
Overall Length (Metric) UOMm
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric) UOMmm
