3M Products & Supplies

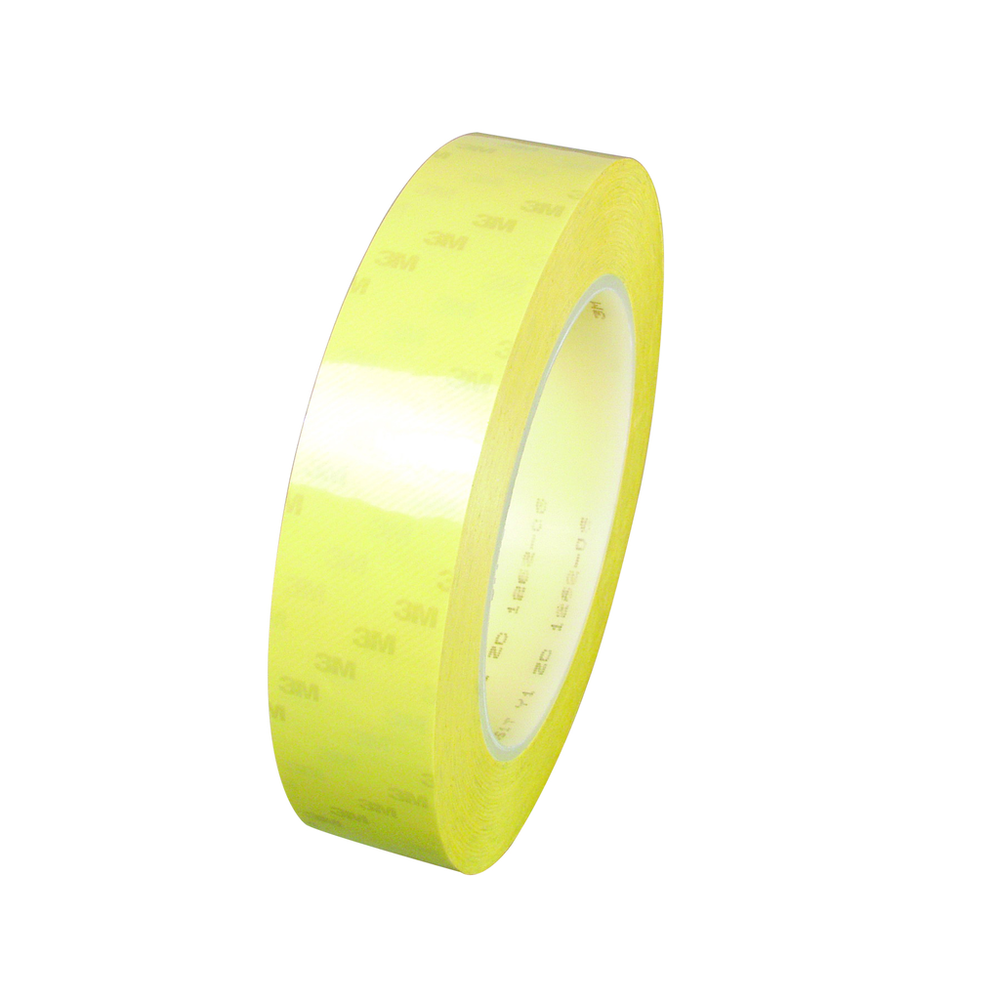

3M™ Polyester Film Electrical Tape 56, 1/2 in X 72 yd, Yellow, 72 Rolls/Case - 7000133148

Sold As: 72-Pack
SKU: 7000133148
MPN: 7000133148
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128562888
3M ID: 80611428766
5 Digit UPC: 56288
$982.27 ($13.64 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
  • Suitable for use as a coil cover and as layer insulation
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Maximum Operating Temperature (Fahrenheit)266.0
Dielectric Strength5000.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Fahrenheit)32.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)65.8
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialPolyester
Maximum Operating Temperature (Celsius)130.0
Overall Width (Imperial) UOMin
Overall Width (Metric)12.7
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
ApplicationInsulation
Product MarketsElectrical Equipment Manufacturing
Rolls per Case72.0
Shelf Life UOMYear
Dielectric Strength UOMV
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Tape GradeProfessional
Overall Length (Imperial)72.0
Overall Width (Metric) UOMmm
