3M Products & Supplies

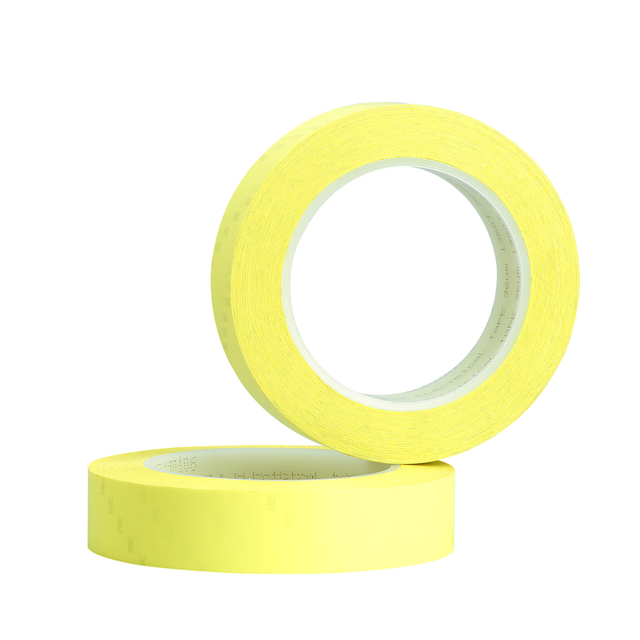

3M™ Polyester Film Electrical Tape 56, 1 in x 72 yd, Yellow, 36 Rolls/Case - 7000133150

Sold As: 36-Pack
SKU: 7000133150
MPN: 7000133150
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128562918
3M ID: 80611428790
5 Digit UPC: 56291
$989.55 ($27.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Suitable for use as a coil cover and as layer insulation
  • Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)0.0
Overall Width (Metric) UOMmm
Overall Width (Imperial)1.0
Backing (Carrier) MaterialPolyester
Overall Width (Metric)25.4
Rolls per Case36.0
Dielectric Strength5500.0
Shelf Life UOMYear
Dielectric Strength UOMV
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
ApplicationInsulation
Overall Length (Metric)65.8
Minimum Operating Temperature (Celsius) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Tape GradeProfessional
Maximum Operating Temperature (Celsius)130.0
Elongation at Break100
Overall Length (Imperial)72.0
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit)32.0
Maximum Operating Temperature (Fahrenheit)266.0
