3M Products & Supplies

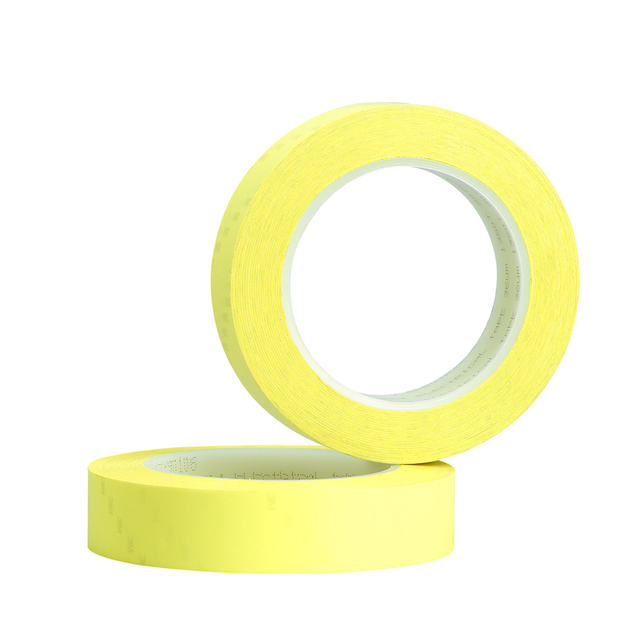

3M™ Polyester Film Electrical Tape 57, 1/4 in x 72 yd, Yellow, 144 Rolls/Case - 7010045321

Sold As: 144-Pack
SKU: 7010045321
MPN: 7010045321
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128567128
3M ID: 80611433006
5 Digit UPC: 56712
$1,740.13 ($12.08 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • General purpose polyester tape with thermosetting rubber adhesive
  • Withstands higher-temperature conditions than tapes with acetate cloth backings
  • Conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut-through and abrasion
  • 2-mil film thickness

Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Overall Width (Metric) UOMmm
Dielectric Strength7000.0
Minimum Operating Temperature (Fahrenheit)32.0
Dielectric Strength UOMV
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Imperial)3.5
Overall Length (Metric)65.8
ApplicationInsulation
Minimum Operating Temperature (Celsius)0.0
Total Tape Thickness without Liner (Metric)0.089
Product ColorYellow
Overall Width (Imperial)0.25
Maximum Operating Temperature (Celsius)130.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)6.35
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeThermosetting Rubber
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialPolyester
Overall Width (Imperial) UOMin
Insulation Resistance1 x 10^6 megohms
Elongation at Break110
Electrolytic Corrosion Factor1.0
Overall Length (Imperial)72.0
Overall Length (Metric) UOMm
Rolls per Case144.0
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Shelf Life UOMYear
Maximum Operating Temperature (Fahrenheit)266.0
