3M Products & Supplies

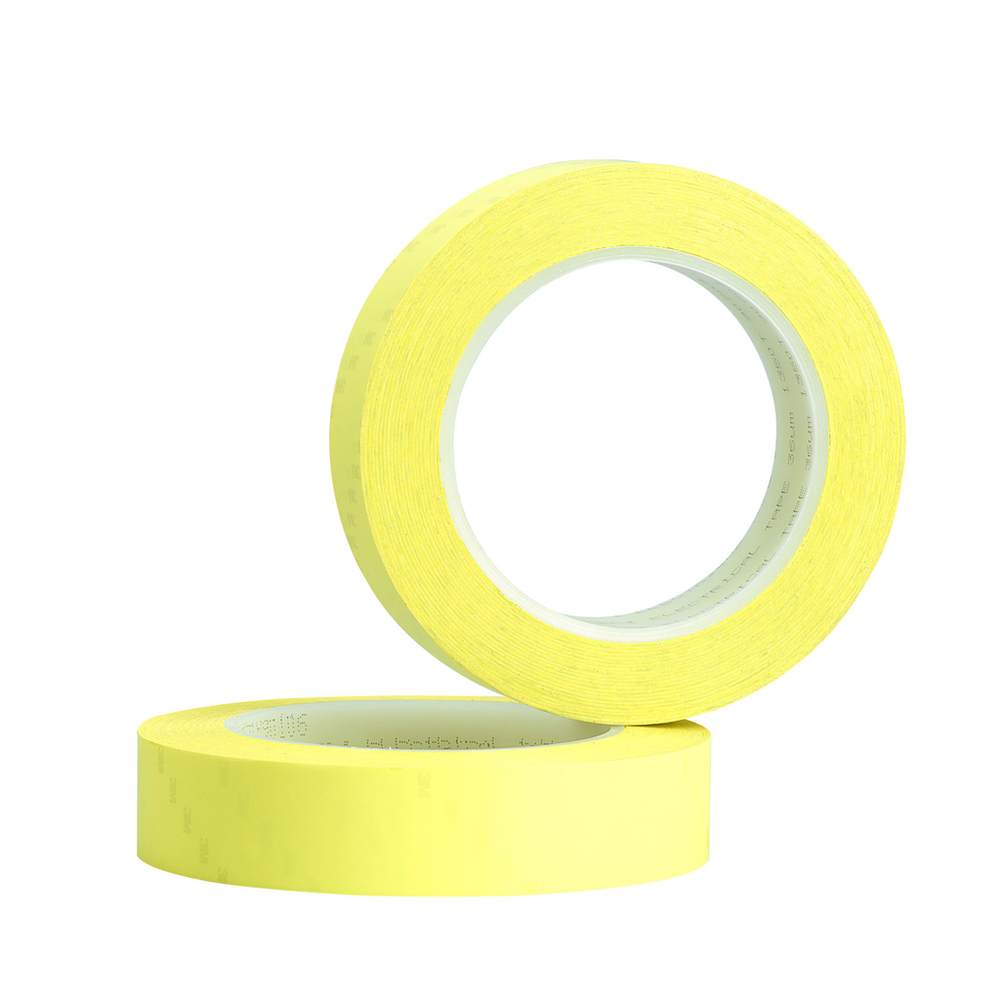

3M™ Polyester Film Electrical Tape 57, 3/4 in x 72 yd, Yellow, 48 Rolls/Case - 7100094882

Sold As: 192-Pack
SKU: 7100094882
MPN: 7100094882
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128567180
3M ID: 80611433063
5 Digit UPC: 56718
$6,976.38 ($36.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • General purpose polyester tape with thermosetting rubber adhesive
  • 2-mil film thickness
  • Conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut-through and abrasion
  • Withstands higher-temperature conditions than tapes with acetate cloth backings

Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Overall Length (Imperial) UOMyd
Product ColorYellow
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive TypeThermosetting Rubber
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)19.0
ApplicationInsulation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)0.0
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)3.5
Maximum Operating Temperature (Celsius)130.0
Product MarketsElectrical Equipment Manufacturing
Elongation at Break110
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Insulation Resistance1 x 10^6 megohms
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Imperial) UOMmil
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Electrolytic Corrosion Factor1.0
Overall Length (Metric)65.8
Minimum Operating Temperature (Fahrenheit)32.0
Dielectric Strength UOMV
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Metric)0.089
Rolls per Case48.0
Dielectric Strength7000.0
Shelf Life UOMYear
Overall Length (Imperial)72.0
Overall Width (Metric) UOMmm
