3M Products & Supplies

3M™ Polyester Film/Mat Composite Film Tape 55, 23-1/2 in x 72 yd, 3 in Plastic Core, Log Roll, 1 Roll/Case - 7010304062

SKU: 7010304062
MPN: 7010304062
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128530467
3M ID: 80611213564
5 Digit UPC: 53046
$920.06 each
Hurry up! Current stock:

Product Description

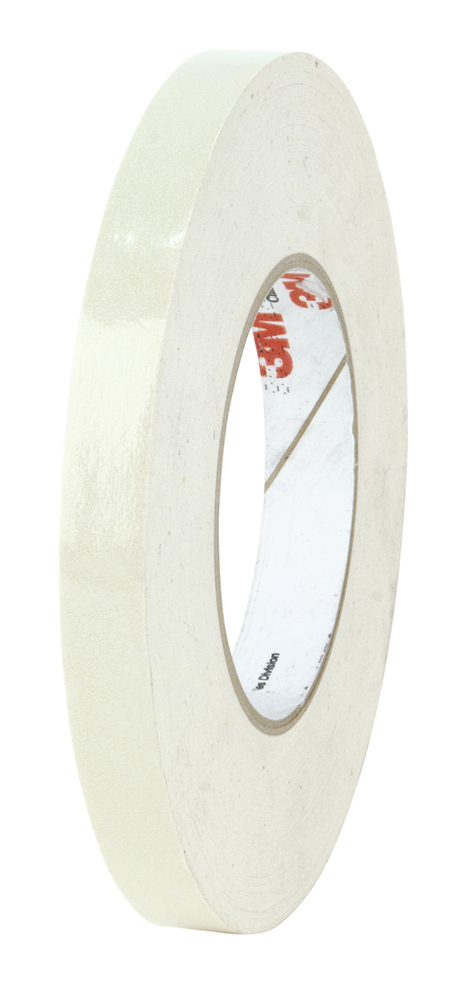

3M™ 55 Composite Film Electrical Tape is polyester web reinforced polyester film coated with a rubber pressure sensitive adhesive. Edge tear and puncture resistant with excellent electrical properties, it is tough and conformable. It is .0055 inch thick and is best used for coil cover, lead pad and core, layer and crossover insulation.

Features

  • High puncture and abrasion resistance
  • Class B (130°C)
  • High edge-tear resistance
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Metric) UOMmm
Adhesive TypeThermosetting Rubber
Total Tape Thickness without Liner (Metric) UOMmm
Electrolytic Corrosion Factor1.0
ApplicationInsulation
Product ColorWhite
Maximum Operating Temperature (Celsius) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)596.9
Maximum Operating Temperature (Celsius)130.0
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Metric)0.18
Total Tape Thickness without Liner (Imperial)7.25
Shelf Life UOMYear
Overall Width (Imperial)23.5
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
