3M Products & Supplies

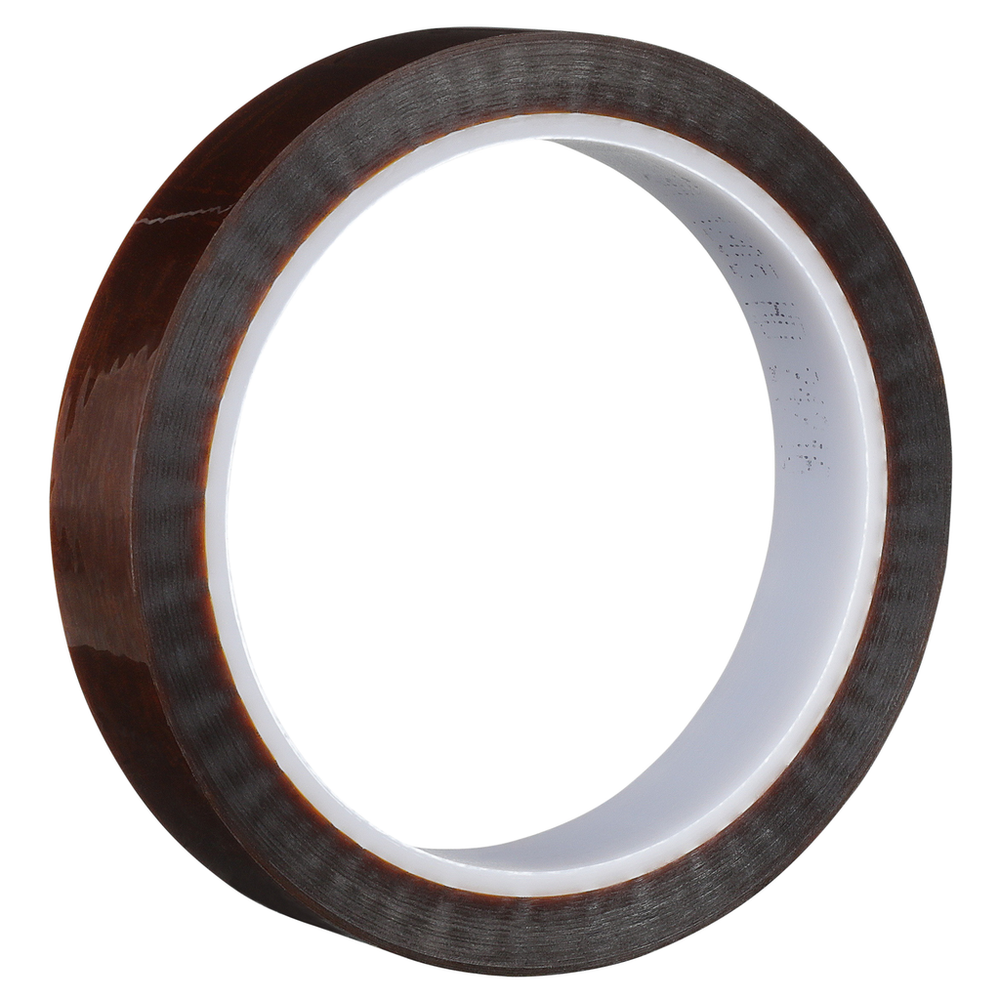

3M™ Polyimide Film Electrical Tape 1205, Amber, Acrylic Adhesive, 1 mil film, 3/8 in x 36 yd (9,52 mm x 33 m), 24/Case - 7000132650

Sold As: 24-Pack
SKU: 7000132650
MPN: 7000132650
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007274742
3M ID: 80610841118
5 Digit UPC: 27474
$656.64 ($27.36 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • UL Listed and RoHS Compliant
  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
  • Flame-retardant and has polyimide backing
  • Designed for anchoring leads and terminal boards
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Highly conformable with a pressure-sensitive, acrylic adhesive
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Adhesive TypeAcrylic
Tensile Strength (Metric) UOMN/cm
Maximum Operating Temperature (Fahrenheit)311.0
Backing (Carrier) MaterialPolyimide Film
ApplicationInsulation
Maximum Operating Temperature (Celsius) UOMDegree
Dielectric Strength UOMV
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)3.2
Total Tape Thickness without Liner (Imperial) UOMmil
Specifications MetRoHS 2011/65/EU, UL Recognized
Electrolytic Corrosion Factor1
Overall Width (Imperial)0.375
Tensile Strength (Metric)53.0
Adhesive MaterialAcrylic
Product MarketsElectrical Equipment Manufacturing
Overall Width (Imperial) UOMin
Elongation at Break55%
Total Tape Thickness without Liner (Metric)0.081
Maximum Operating Temperature (Celsius)155.0
Product ColorAmber
Overall Length (Imperial)36.0
Overall Width (Metric)9.525
Overall Length (Metric)33.0
Overall Width (Metric) UOMmm
Dielectric Strength7500.0
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
