3M Products & Supplies

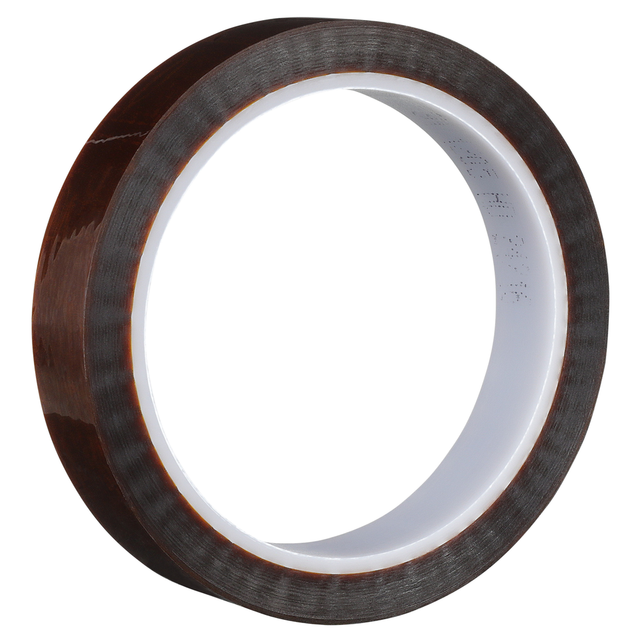

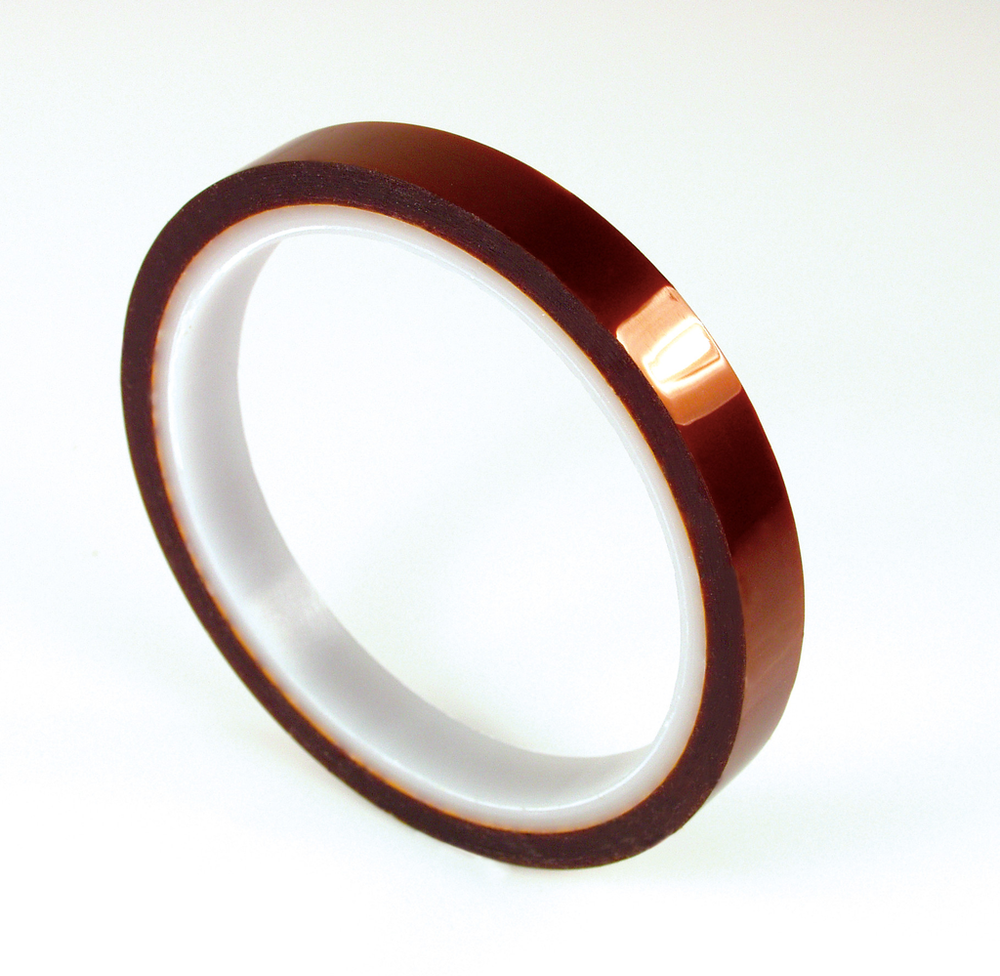

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1 mil film, 1/2 in x 36 yd (12,70 mm x 33 m), 18/Case - 7000132180

Sold As: 18-Pack
SKU: 7000132180
MPN: 7000132180
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007275381
3M ID: 80018001174
5 Digit UPC: 27538
$732.79 ($40.71 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Highly conformable with a pressure-sensitive, silicone adhesive
  • UL Listed and RoHS Compliant
  • Designed for anchoring leads and terminal boards
  • Flame-retardant and has polyamide backing
  • Withstands a temperature rating of 0°C to 180°C
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Product ColorAmber
Overall Width (Metric)12.7
Total Tape Thickness without Liner (Metric)0.07
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break40%
Overall Width (Imperial)0.5
Overall Width (Imperial) UOMin
Adhesive TypeSilicone
Adhesive MaterialThermosetting Silicone
Insulation Resistance1 x 10^6 megohms
Overall Width (Metric) UOMmm
Shelf Life UOMYear
Dielectric Strength7500.0
Tensile Strength (Metric) UOMN/cm
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius)-40.0
Product MarketsElectrical Equipment Manufacturing
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Dielectric Strength UOMV
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Length (Metric)33.0
Maximum Operating Temperature (Celsius)180.0
Backing (Carrier) MaterialPolyimide Film
ApplicationInsulation
Maximum Operating Temperature (Fahrenheit)356.0
Tensile Strength (Metric)53.0
Electrolytic Corrosion Factor1
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)2.75
