3M Products & Supplies

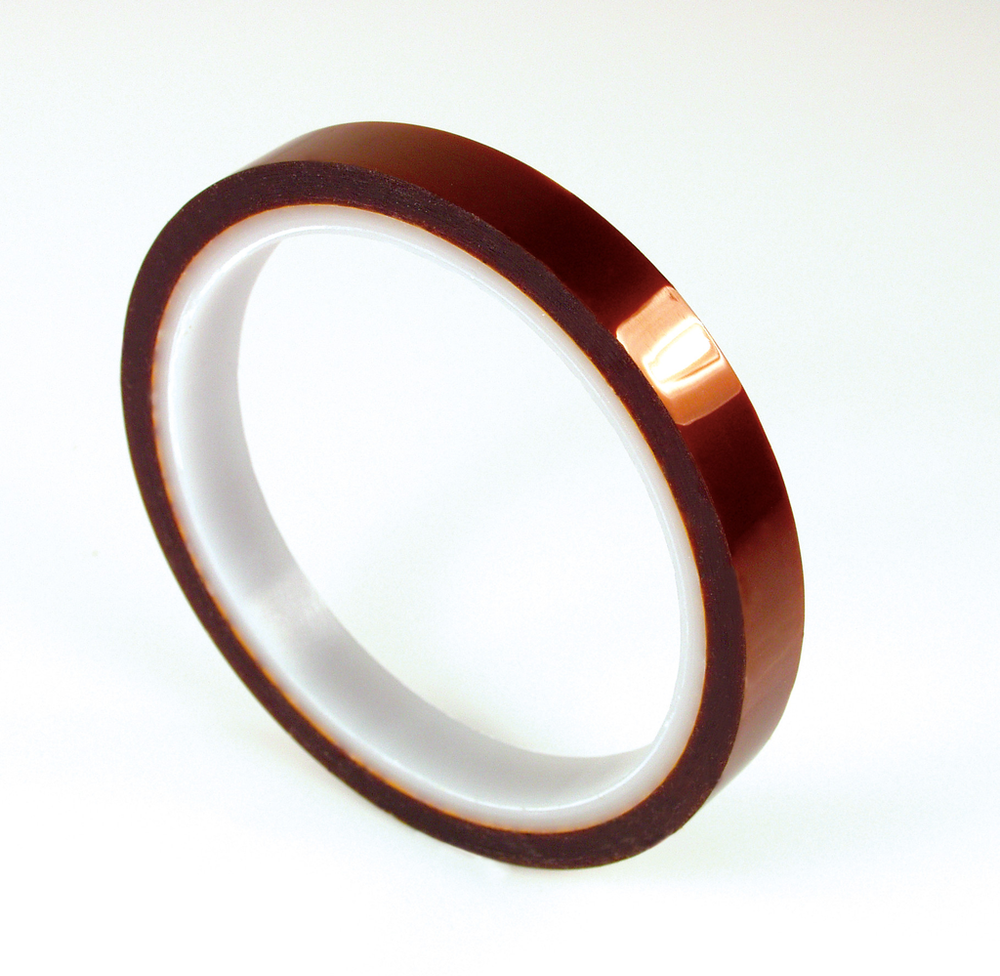

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1 mil film, 7/8 in x 36 yd (22,23 mm x 33 m), 11/Case - 7010350295

Sold As: 11-Pack
SKU: 7010350295
MPN: 7010350295
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138497514
3M ID: 80610883300
5 Digit UPC: 49751
$892.09 ($81.10 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Highly conformable with a pressure-sensitive, silicone adhesive
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Designed for anchoring leads and terminal boards
  • Flame-retardant and has polyamide backing
  • Withstands a temperature rating of 0°C to 180°C
  • UL Listed and RoHS Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Elongation at Break40%
Electrolytic Corrosion Factor1.0
Adhesive TypeSilicone
Tensile Strength (Metric)53.0
Maximum Operating Temperature (Celsius)180.0
Insulation Resistance1 x 10^6 megohms
Overall Width (Imperial)0.875
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)2.75
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)33.0
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
Adhesive MaterialThermosetting Silicone
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Shelf Life UOMYear
Dielectric Strength UOMV
Specifications MetRoHS 2011/65/EU, UL Recognized
Product ColorAmber
Backing (Carrier) MaterialPolyimide Film
Total Tape Thickness without Liner (Metric)0.07
Maximum Operating Temperature (Fahrenheit)356.0
Dielectric Strength7500.0
Overall Length (Imperial)36.0
ApplicationInsulation
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)22.225
Tensile Strength (Metric) UOMN/cm
