3M Products & Supplies

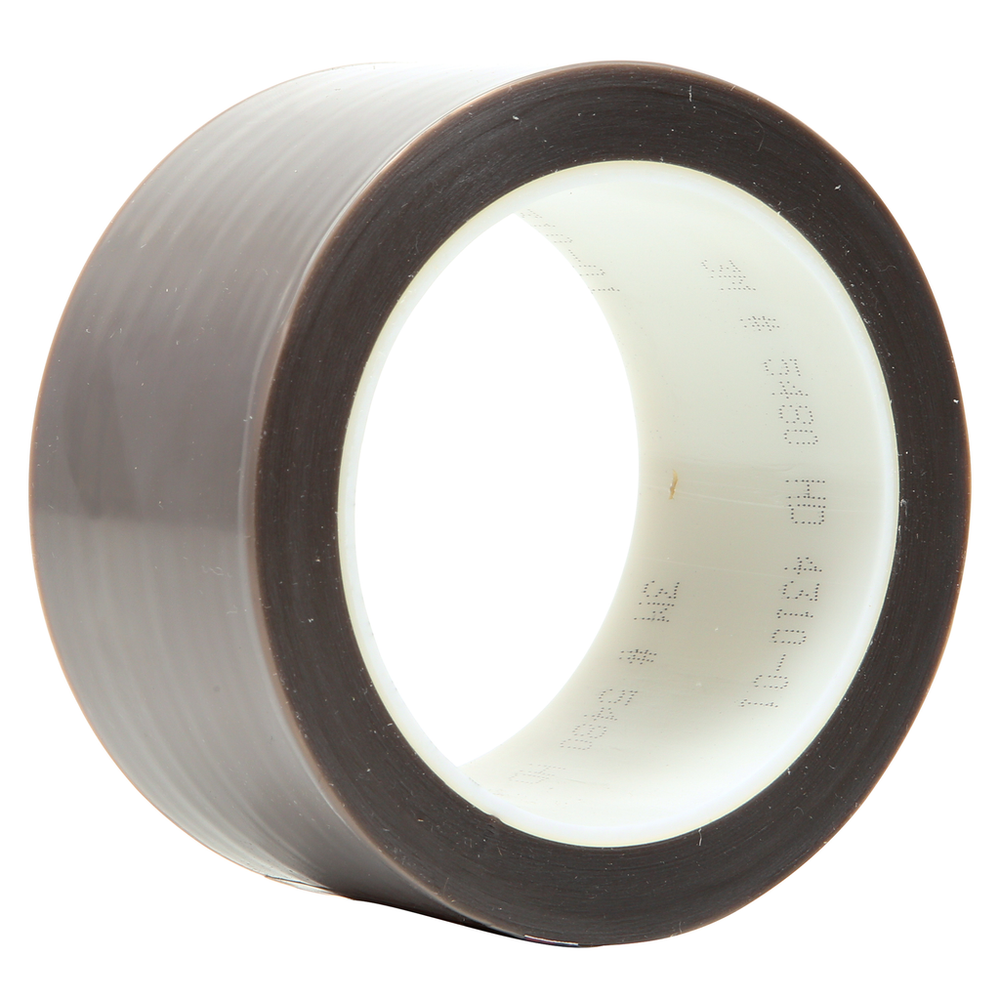

3M™ PTFE Film Tape 5480, Gray, 2 in x 36 yd, 3.7 mil, 6 Roll/Case - 7000029152

Sold As: 6-Pack
SKU: 7000029152
MPN: 7000029152
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200161681
3M ID: 70016054358
5 Digit UPC: 16168
$1,701.77 ($283.63 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Skived Film Tape 5480 uses a skived, polytetrafluoroethylene (PTFE), conformable film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of web materials in many types of roll-wrap applications.

Features

  • Wide temperature range for performance on heated machinery and equipment
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Skived 3M™ PTFE Film Tapes are more conformable than typical extruded PTFE film tapes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Units per Case6.0
Units per Case UOMRoll
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.09
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Tensile Strength (Metric)46.1
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)2.0
Backing (Carrier) Thickness (Metric)0.05
Backing (Carrier) MaterialSkived PTFE
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius)260.0
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorGray
Total Tape Thickness without Liner (Imperial) UOMmil
IndustriesAerospace
Maximum Operating Temperature (Fahrenheit)500.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)3.7
Overall Width (Imperial) UOMin
Overall Length (Metric)32.9
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-54.0
ApplicationCovering Wrapping Rollers; Paper & Film Tracking
Overall Width (Metric)51.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial) UOMlb/in
Adhesive TypeSilicone
Tensile Strength (Imperial)27.0
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial)2.0
