3M Products & Supplies

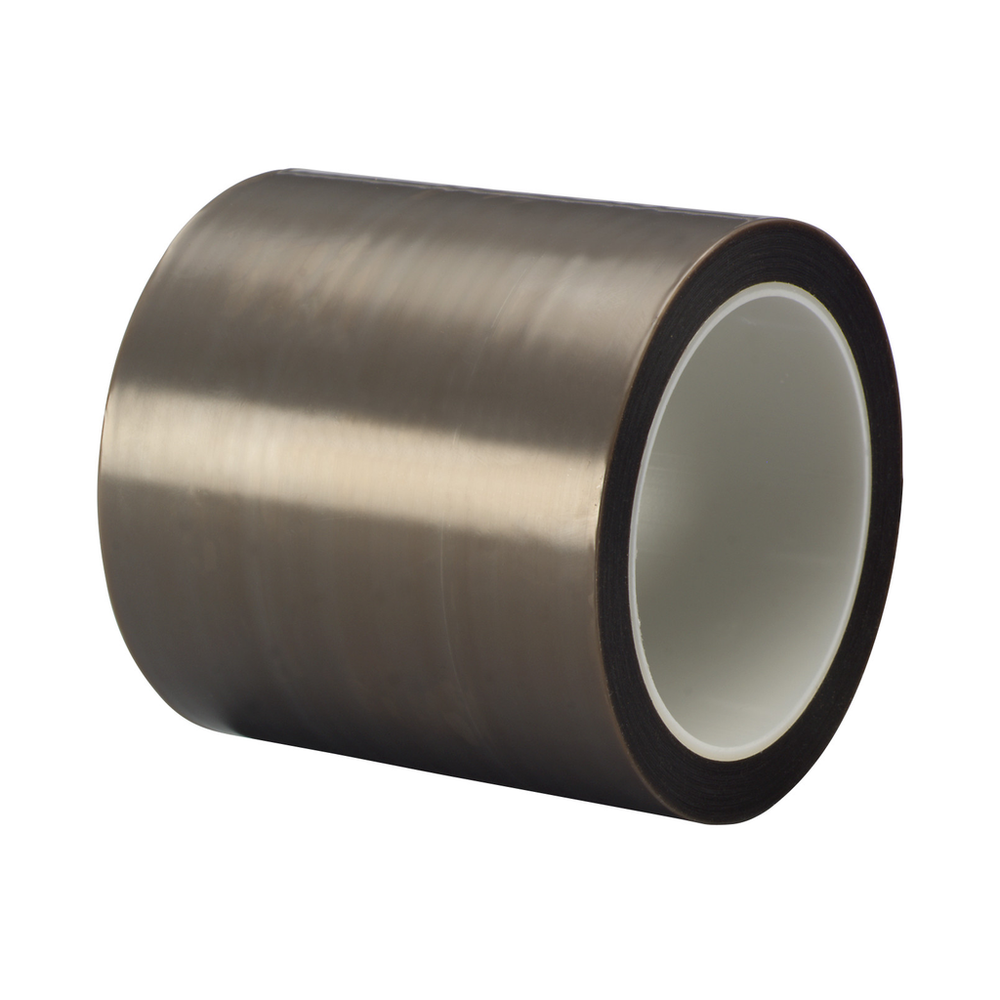

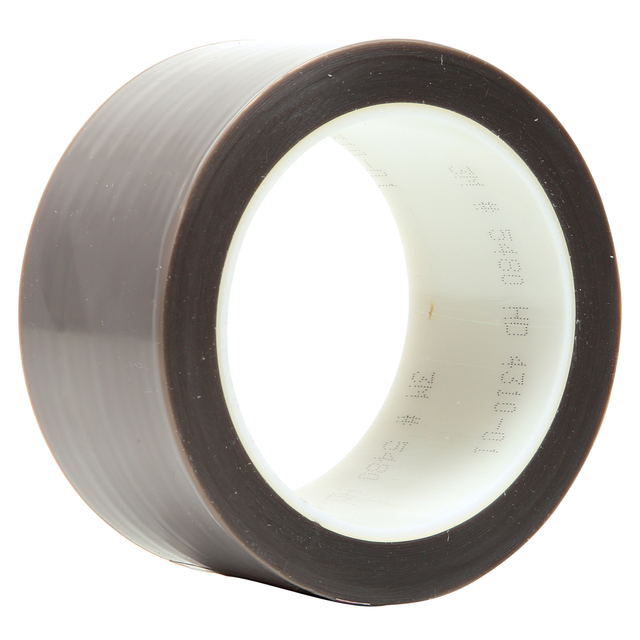

3M™ PTFE Film Tape 5480, Gray, 5 in x 36 yd, 3.7 mil, 2 Roll/Case - 7100128760

Sold As: 2-Pack
SKU: 7100128760
MPN: 7100128760
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138950262
3M ID: 70006383007
5 Digit UPC: 95026
$1,418.13 ($709.07 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Skived Film Tape 5480 uses a skived, polytetrafluoroethylene (PTFE), conformable film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of web materials in many types of roll-wrap applications.

Features

  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Wide temperature range for performance on heated machinery and equipment
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Skived 3M™ PTFE Film Tapes are more conformable than typical extruded PTFE film tapes
  • Silicone adhesive provides clean removal from a variety of surfaces
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMcm
Minimum Operating Temperature (Fahrenheit)-65.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)3.7
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialSkived PTFE
Units per Case2.0
Units per Case UOMRoll
Adhesive TypeSilicone
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)12.7
Overall Length (Metric)32.9
Maximum Operating Temperature (Fahrenheit)500.0
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.09
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)27.0
Backing (Carrier) Thickness (Metric) UOMmm
IndustriesAerospace
Maximum Operating Temperature (Celsius)260.0
Minimum Operating Temperature (Celsius)-54.0
ApplicationCovering Wrapping Rollers; Paper & Film Tracking
Backing (Carrier) Thickness (Metric)0.05
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)2.0
Tensile Strength (Metric)46.1
Overall Width (Imperial)5.0
Minimum Operating Temperature (Celsius) UOMDegree
