3M Products & Supplies

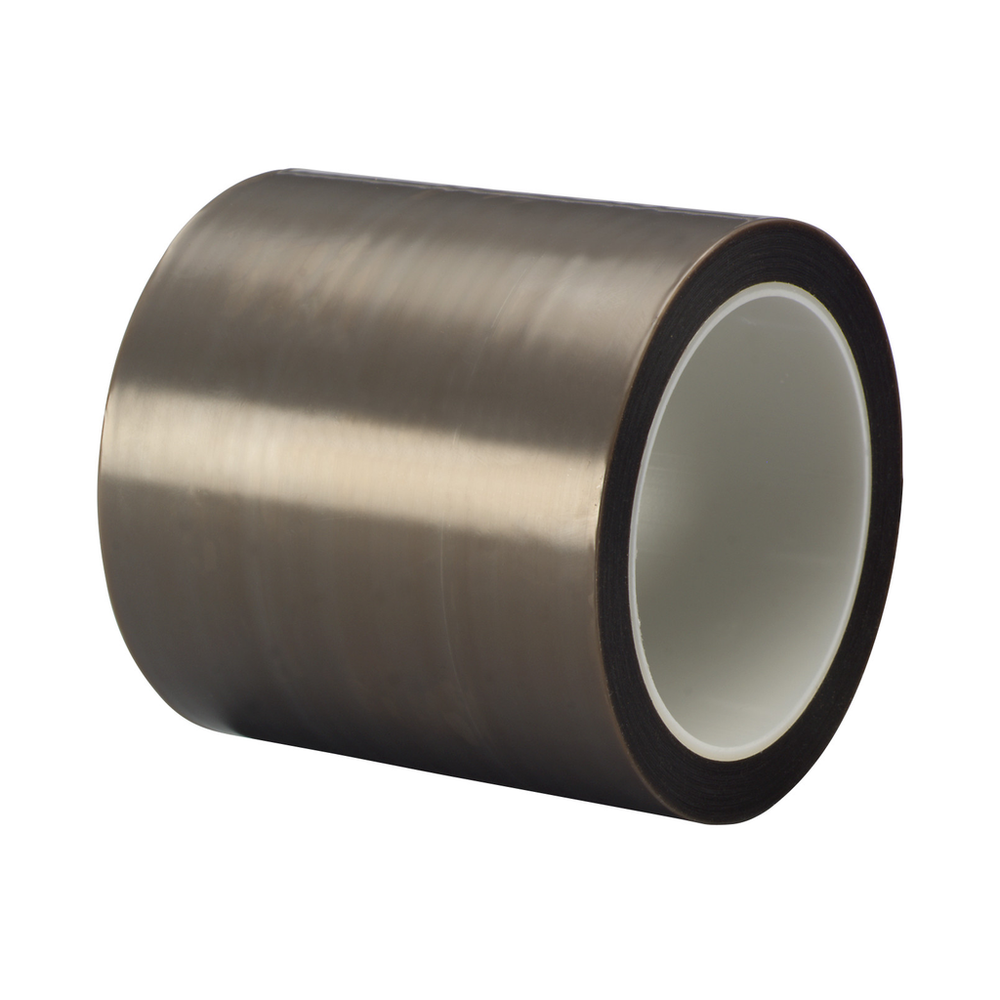

3M™ PTFE Film Tape 5480, Gray, 4 1/2 in x 36 yd, 3.7 mil, 3 Roll/Case - 7010374278

Sold As: 6-Pack
SKU: 7010374278
MPN: 7010374278
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138946845
3M ID: 70006381373
MPN: 5480
$3,828.30 ($638.05 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Skived Film Tape 5480 uses a skived, polytetrafluoroethylene (PTFE), conformable film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of web materials in many types of roll-wrap applications.

Features

  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Wide temperature range for performance on heated machinery and equipment
  • Skived 3M™ PTFE Film Tapes are more conformable than typical extruded PTFE film tapes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Metric)114.3
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)2.0
Minimum Operating Temperature (Celsius)-54.0
Minimum Operating Temperature (Fahrenheit)-65.0
Product ColorGray
Overall Width (Imperial) UOMin
Adhesive TypeSilicone
Units per Case UOMRoll
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)500.0
Maximum Operating Temperature (Celsius)260.0
Total Tape Thickness without Liner (Metric)0.094
Overall Width (Imperial)4.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
IndustriesAerospace
Tensile Strength (Imperial)27.0
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)3.7
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)36.0
Tensile Strength (Metric) UOMN/100mm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.05
Units per Case3.0
Backing (Carrier) MaterialSkived PTFE
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)46.1
Overall Length (Metric)32.91
ApplicationCovering Wrapping Rollers; Paper & Film Tracking
