3M Products & Supplies

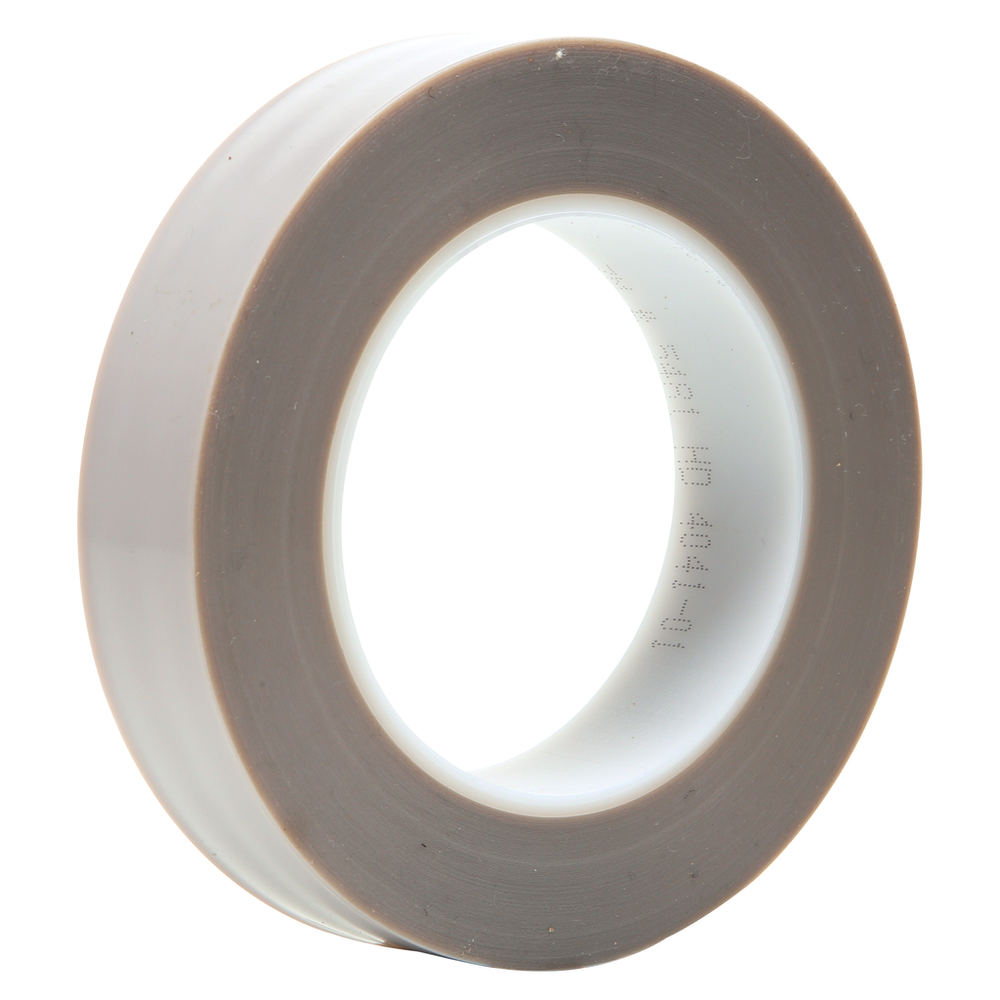

3M™ PTFE Film Tape 5481, Gray, 3/4 in x 36 yd, 6.8 mil, 6 Rolls/Case - 7100221352

Sold As: 12-Pack
SKU: 7100221352
MPN: 7100221352
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406564
3M ID: 70007543682
5 Digit UPC: 40656
$2,596.67 ($216.39 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Skived Film Tape 5481 uses a skived, polytetrafluoroethylene (PTFE), conformable film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of web materials in many types of roll-wrap applications.

Features

  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Thicker version of 3M™ PTFE Skived Film Tape 5480, providing more durability and longer wear
  • Skived 3M™ PTFE Film Tapes are more conformable than typical extruded PTFE film tapes
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Wide temperature range for performance on heated machinery and equipment
  • Silicone adhesive provides clean removal from a variety of surfaces
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Imperial)5.0
Overall Length (Metric)32.918
Minimum Operating Temperature (Celsius)-54.0
Maximum Operating Temperature (Celsius)260.0
Product ColorGray
Backing (Carrier) Thickness (Metric)0.13
Tensile Strength (Imperial)49.0
Maximum Operating Temperature (Fahrenheit)500.0
Overall Width (Imperial)0.75
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Adhesive TypeSilicone
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric)103.9
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.172
Overall Width (Metric) UOMmm
Overall Width (Metric)19.05
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)6.8
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit)-65.0
