3M Products & Supplies

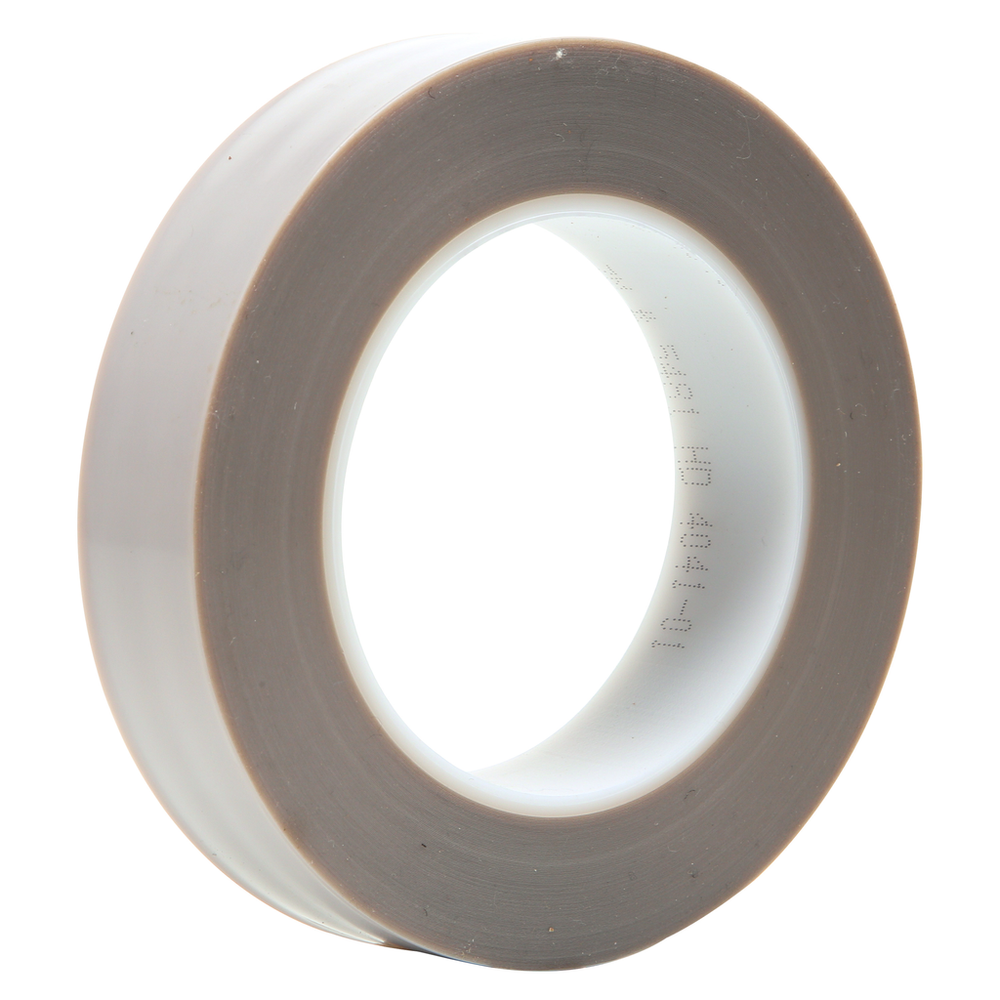

3M™ PTFE Film Tape 5481, Gray, 1 in x 36 yd, 6.8 mil, 7 Rolls/Case - 7100221351

Sold As: 14-Pack
SKU: 7100221351
MPN: 7100221351
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406571
3M ID: 70007543690
5 Digit UPC: 40657
$3,846.69 ($274.76 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Skived Film Tape 5481 uses a skived, polytetrafluoroethylene (PTFE), conformable film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of web materials in many types of roll-wrap applications.

Features

  • Skived 3M™ PTFE Film Tapes are more conformable than typical extruded PTFE film tapes
  • Thicker version of 3M™ PTFE Skived Film Tape 5480, providing more durability and longer wear
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Wide temperature range for performance on heated machinery and equipment
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric)103.9
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)260.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)25.4
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.172
Adhesive TypeSilicone
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Metric)0.13
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Length (Metric)32.918
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Overall Width (Imperial)1.0
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)5.0
Tensile Strength (Imperial)49.0
Maximum Operating Temperature (Fahrenheit)500.0
Minimum Operating Temperature (Celsius)-54.0
Backing (Carrier) Thickness (Metric) UOMmm
Product ColorGray
Total Tape Thickness without Liner (Imperial)6.8
