3M Products & Supplies

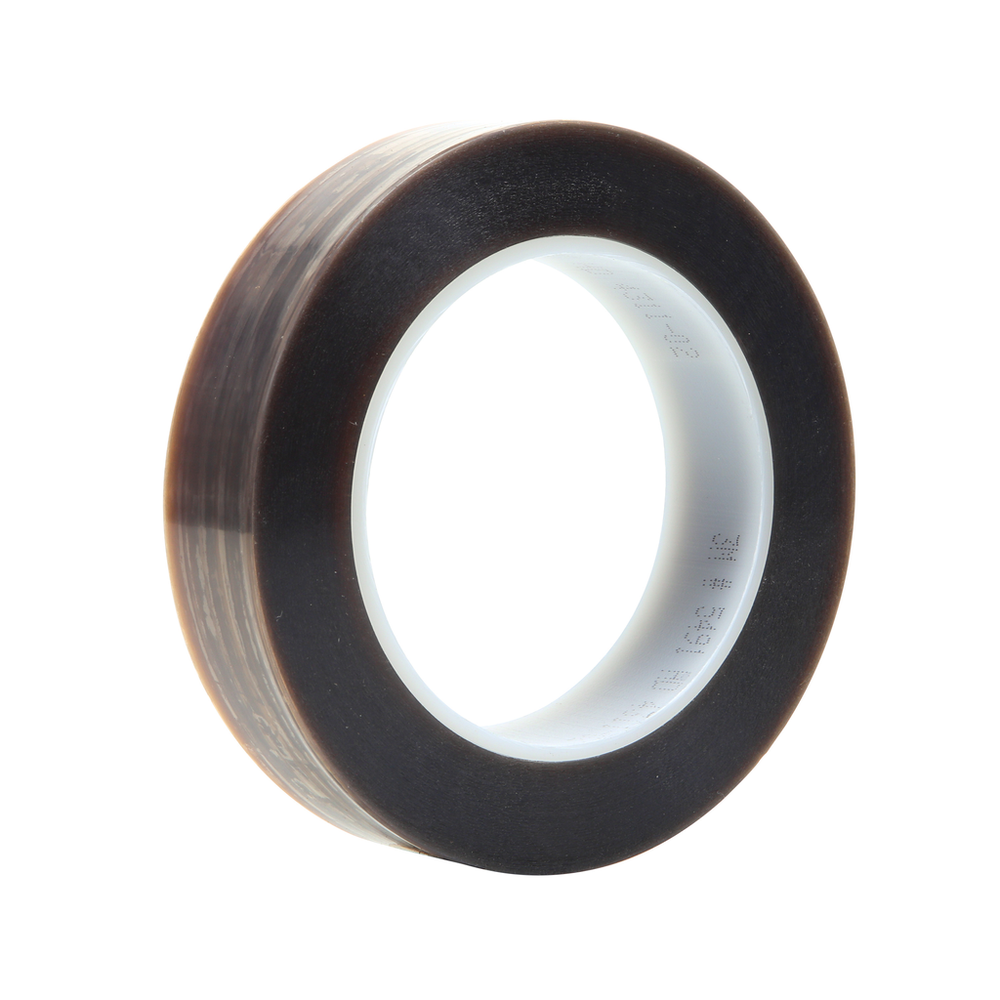

3M™ PTFE Film Tape 5491, Brown, 3/4 in x 36 yd, 6.7 mil, 6 Rolls/Case - 7100221272

Sold As: 20-Pack
SKU: 7100221272
MPN: 7100221272
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406663
3M ID: 70007543781
5 Digit UPC: 40666
$4,449.83 ($222.49 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5491 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Thicker version of 3M™ PTFE Film Tape 5490, providing more durability and longer wear
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Wide temperature range for performance on heated machinery and equipment
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Tensile Strength (Metric)72.7
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-54.0
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Imperial)5.0
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.17
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeSilicone
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)19.05
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)40.0
Maximum Operating Temperature (Fahrenheit)500.0
Total Tape Thickness without Liner (Imperial)6.7
Maximum Operating Temperature (Celsius)260.0
Backing (Carrier) Thickness (Metric)0.13
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)32.918
Minimum Operating Temperature (Fahrenheit)-65.0
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
