3M Products & Supplies

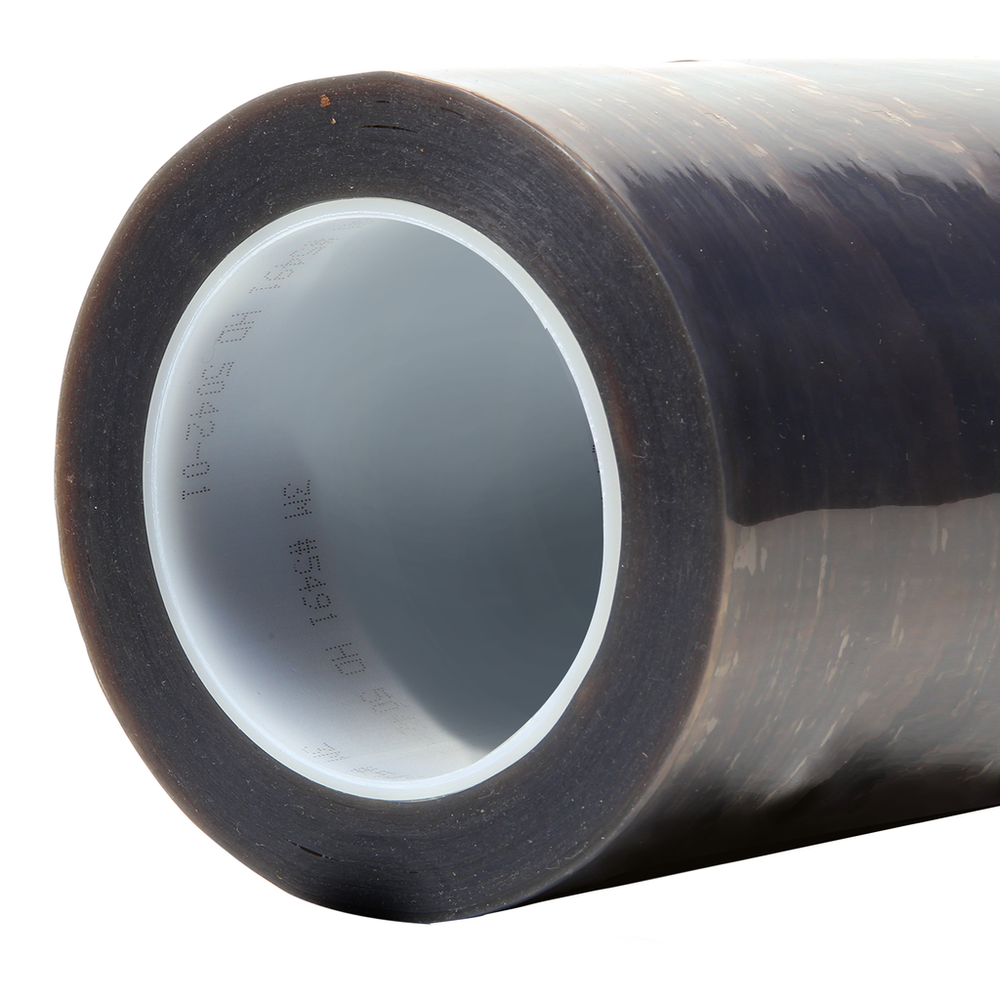

3M™ PTFE Film Tape 5491, Brown, 14 in x 36 yd, 6.7 mil, 1 Roll/Case - 7000048701

SKU: 7000048701
MPN: 7000048701
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200301131
3M ID: 70006197951
5 Digit UPC: 30113
$3,955.99 each
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5491 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Thicker version of 3M™ PTFE Film Tape 5490, providing more durability and longer wear
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Wide temperature range for performance on heated machinery and equipment
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)6.7
Total Tape Thickness without Liner (Metric)0.17
Maximum Operating Temperature (Celsius)260.0
Minimum Operating Temperature (Celsius)-54.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAerospace
Overall Width (Metric)355.6
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Imperial)14.0
Overall Width (Metric) UOMmm
Adhesive TypeSilicone
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Overall Length (Metric)32.91
Tensile Strength (Imperial)40.0
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Metric)0.13
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)5.0
Maximum Operating Temperature (Fahrenheit)500.0
Backing (Carrier) MaterialExtruded PTFE
Units per Case1.0
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case UOMRoll
Tensile Strength (Metric)72.7
Overall Length (Metric) UOMm
