3M Products & Supplies

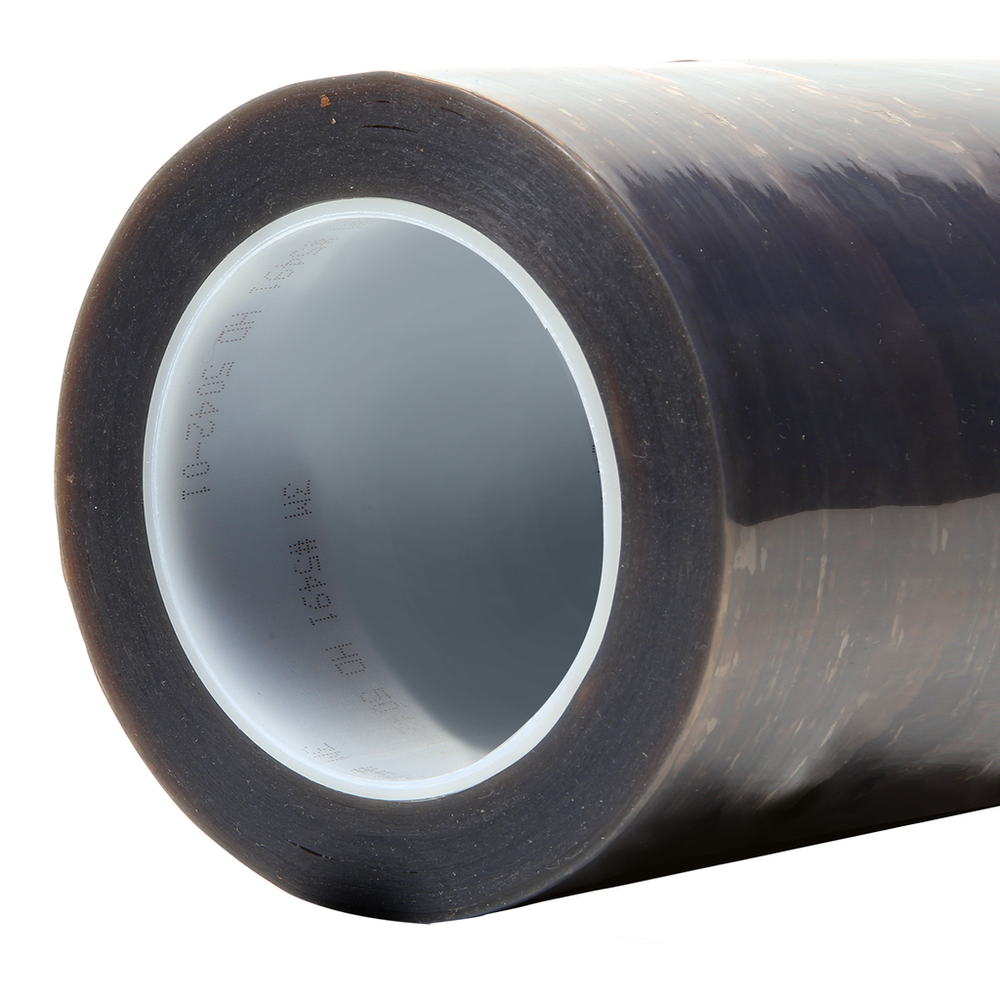

3M™ PTFE Film Tape 5491, Brown, 10 in x 36 yd, 6.7 mil, 1 Roll/Case - 7100115544

SKU: 7100115544
MPN: 7100115544
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200735288
3M ID: 70006197241
5 Digit UPC: 73528
$2,825.71 each
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5491 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Thicker version of 3M™ PTFE Film Tape 5490, providing more durability and longer wear
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Wide temperature range for performance on heated machinery and equipment
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Imperial)5.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric)72.7
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialExtruded PTFE
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Imperial)6.7
Units per Case UOMRoll
Overall Length (Metric)32.9
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Metric)0.13
Total Tape Thickness without Liner (Metric)0.17
Maximum Operating Temperature (Fahrenheit)500.0
Maximum Operating Temperature (Celsius)260.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeSilicone
IndustriesAerospace
Product ColorBrown
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)25.4
Units per Case1.0
Minimum Operating Temperature (Fahrenheit)-65.0
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Imperial)40.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMcm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Overall Width (Imperial)10.0
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-54.0
