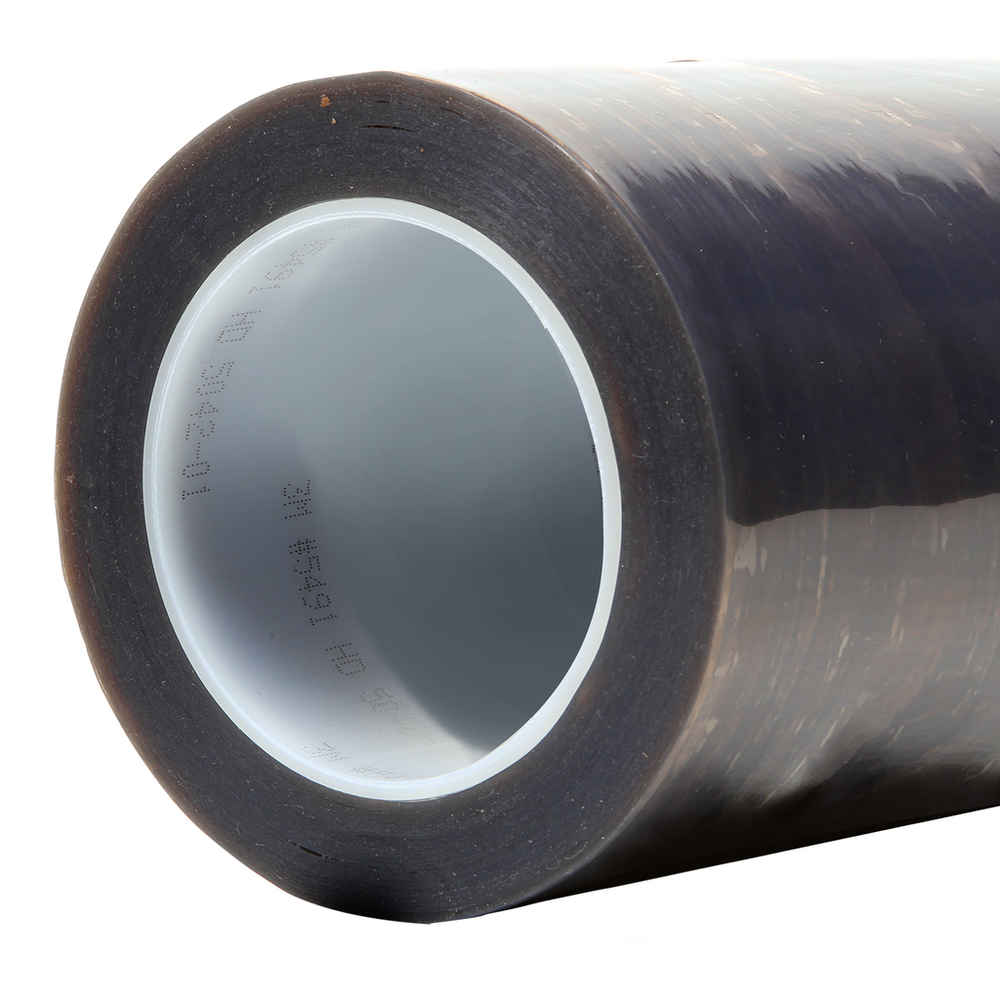

3M™ PTFE Film Tape 5491, Brown, 12 in x 36 yd, 6.7 mil, 1 Roll/Case - 7010333754

SKU: 7010333754
MPN: 7010333754
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200301506
3M ID: 70006211190
5 Digit UPC: 30150
$3,390.32 each
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5491 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Wide temperature range for performance on heated machinery and equipment
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Thicker version of 3M™ PTFE Film Tape 5490, providing more durability and longer wear
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)260.0
Minimum Operating Temperature (Celsius)-54.0
Total Tape Thickness without Liner (Metric)0.17
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)12.0
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive TypeSilicone
Overall Length (Imperial)36.0
Tensile Strength (Metric)72.7
Backing (Carrier) MaterialExtruded PTFE
Product ColorBrown
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Units per Case1.0
Units per Case UOMRoll
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)5.0
Overall Width (Imperial) UOMin
IndustriesAerospace
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)304.0
Overall Length (Metric)32.9
Maximum Operating Temperature (Fahrenheit)500.0
Tensile Strength (Imperial)40.0
Total Tape Thickness without Liner (Imperial)6.7
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric)0.13
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
