3M Products & Supplies

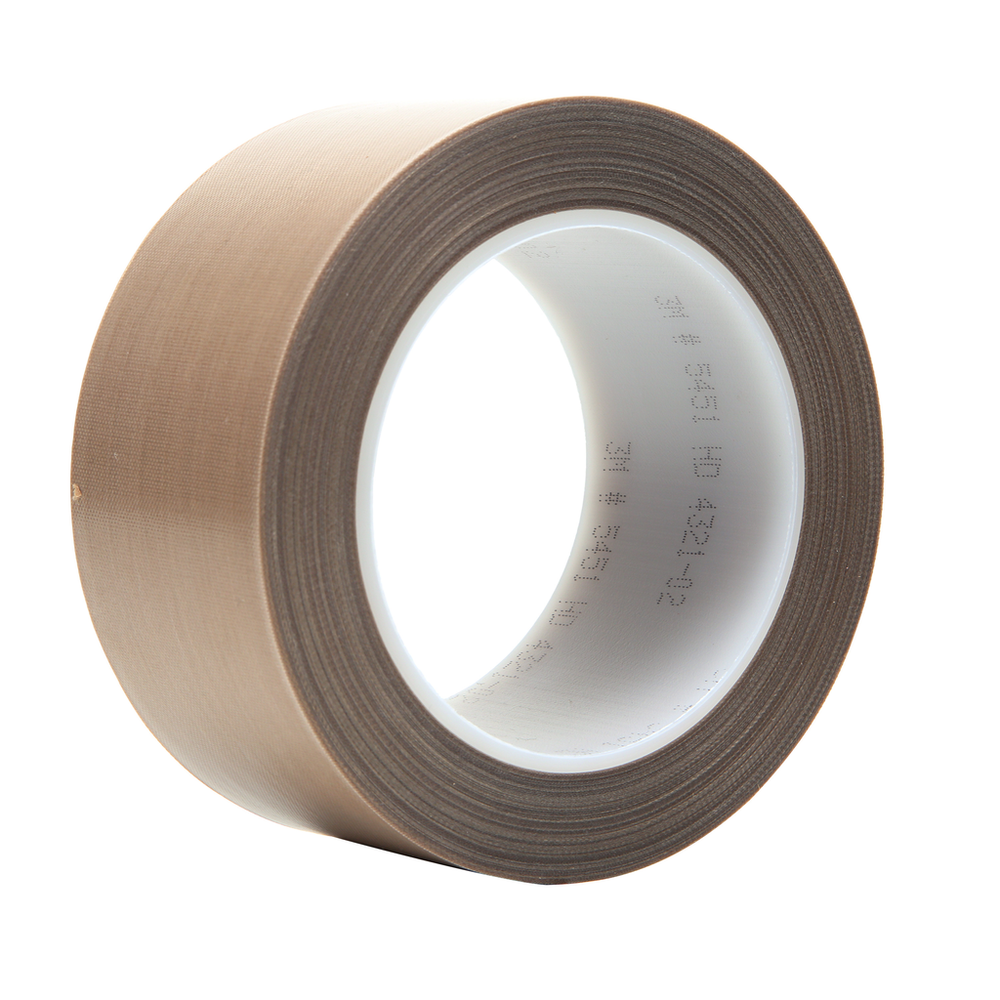

3M™ PTFE Glass Cloth Tape 5451, Brown, 2 in x 36 yd, 5.6 mil, 6 Roll/Case - 7000029153

Sold As: 6-Pack
SKU: 7000029153
MPN: 7000029153
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200161544
3M ID: 70016054515
5 Digit UPC: 16154
$2,421.75 ($403.63 / Count)
Hurry up! Current stock:

Product Description

This premium performance 3M™ PTFE Glass Cloth Tape 5451 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Excellent chemical resistance enables tape to withstand challenging applications
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Silicone adhesive offers high temperature performance and long aging
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Product CategorySpecialty Tapes
Minimum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)2.4
Overall Width (Metric)50.8
Total Tape Thickness without Liner (Imperial)5.6
Total Tape Thickness without Liner (Metric)0.14
Adhesive TypeSilicone
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)500.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) MaterialGlass Cloth/PTFE
Backing (Carrier) Thickness (Imperial) UOMmil
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
Shelf Life UOMMonth
Elongation at Break5
Overall Length (Metric)32.9
Overall Width (Imperial)2.0
Back Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.06
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)260.0
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial)1600.0
Minimum Operating Temperature (Fahrenheit)-100.0
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)3.2
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial)36.0
Product ColorBrown
Core Size (Imperial)3.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-73.0
Backing (Carrier) Thickness (Metric)0.08
Tensile Strength (Metric)1760.0
Core Size (Metric)7.62
Units per Case6.0
Overall Width (Imperial) UOMin
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Imperial) UOMoz/in
Core Size (Imperial) UOMin
Tensile Strength (Metric) UOMN/100mm
Core Size (Metric) UOMcm
Overall Width (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
