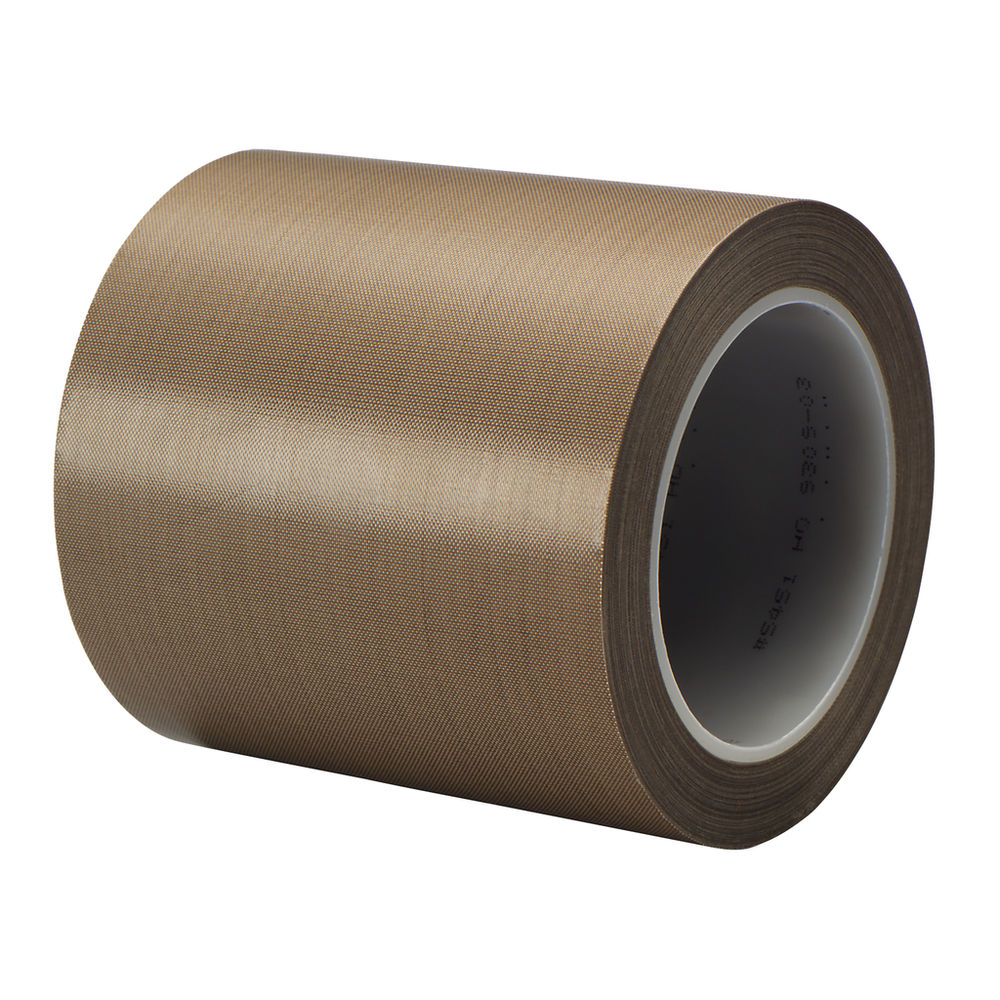

3M™ PTFE Glass Cloth Tape 5451, Brown, 6 in x 36 yd, 5.6 mil, 2 Roll/Case - 7000048699

Sold As: 8-Pack
SKU: 7000048699
MPN: 7000048699
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200735936
3M ID: 70006197704
5 Digit UPC: 73593
$9,685.63 ($1210.70 / Count)
Hurry up! Current stock:

Product Description

This premium performance 3M™ PTFE Glass Cloth Tape 5451 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Silicone adhesive offers high temperature performance and long aging
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Excellent chemical resistance enables tape to withstand challenging applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Back Side Adhesive Thickness (Metric)0.06
Overall Length (Imperial)36.0
Units per Case2.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Backing (Carrier) MaterialGlass Cloth/PTFE
Total Tape Thickness without Liner (Metric)0.14
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)3.2
Backing (Carrier) Thickness (Metric)0.08
Maximum Operating Temperature (Celsius)260.0
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeSilicone
Elongation at Break5
Overall Width (Metric) UOMmm
Product ColorBrown
Overall Length (Metric)32.91
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial)5.6
Overall Length (Imperial) UOMyd
Overall Width (Imperial)6.0
Maximum Operating Temperature (Fahrenheit)500.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Marine, Metalworking, Military, Military and Government, Specialty Vehicles, Transportation
Overall Width (Metric)152.4
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)1600.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-100.0
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial) UOMoz/in
Tensile Strength (Metric)176.0
Back Side Adhesive Thickness (Imperial)2.4
Core Size (Metric)7.62
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
Back Side Adhesive Thickness (Imperial) UOMmil
Product CategorySpecialty Tapes
Minimum Operating Temperature (Celsius) UOMDegree
Core Size (Imperial)3.0
Indoor/OutdoorIndoor/Outdoor
Core Size (Metric) UOMcm
Core Size (Imperial) UOMin
Minimum Operating Temperature (Celsius)-73.0
