3M Products & Supplies

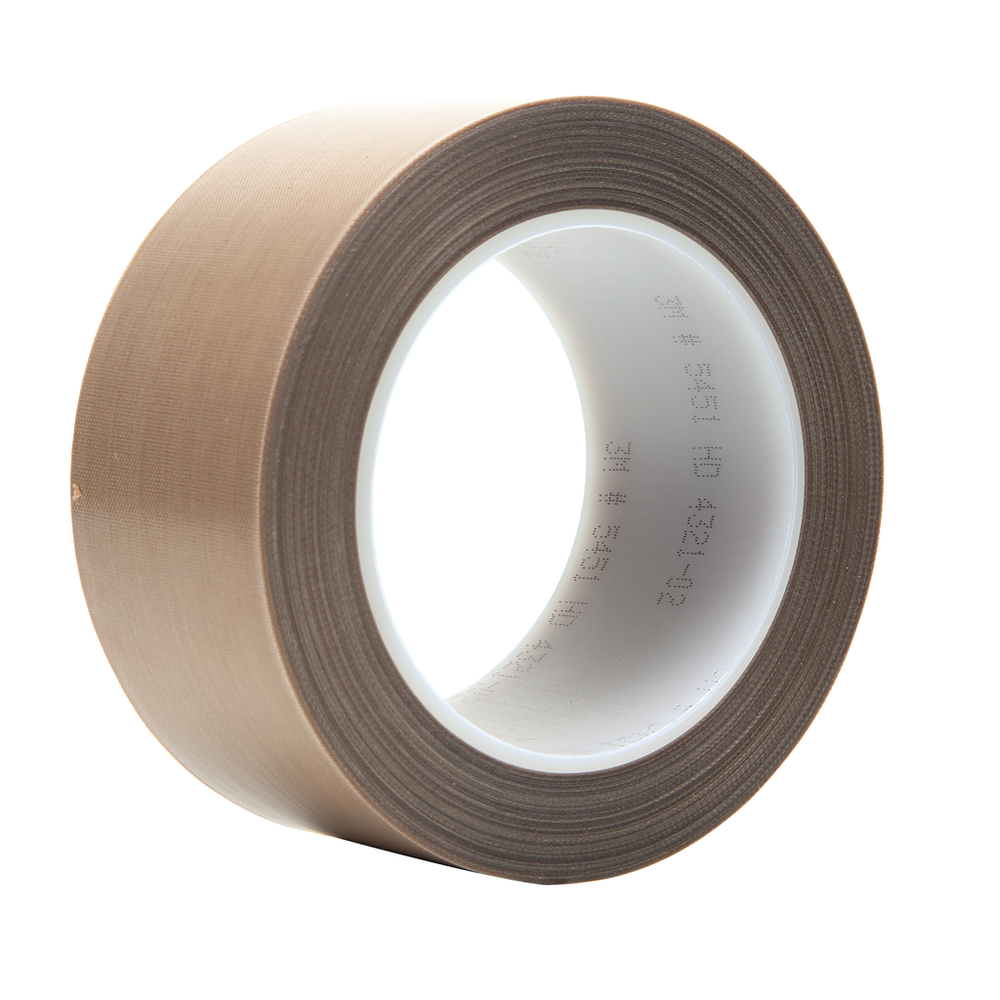

3M™ PTFE Glass Cloth Tape 5451, Brown, 3 in x 36 yd, 5.6 mil, 3 Roll/Case - 7100134760

Sold As: 16-Pack
SKU: 7100134760
MPN: 7100134760
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200161551
3M ID: 70016054507
5 Digit UPC: 16155
$9,687.12 ($605.45 / Count)
Hurry up! Current stock:

Product Description

This premium performance 3M™ PTFE Glass Cloth Tape 5451 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Excellent chemical resistance enables tape to withstand challenging applications
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Silicone adhesive offers high temperature performance and long aging
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Metric)1760.0
Overall Length (Imperial)36.0
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.08
Elongation at Break5
Maximum Operating Temperature (Celsius)260.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Tensile Strength (Imperial)1600.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)3.2
Backing (Carrier) Thickness (Metric)0.08
Backing (Carrier) Thickness (Imperial) UOMmil
Units per Case3.0
Overall Width (Metric)76.2
Minimum Operating Temperature (Fahrenheit)-100.0
Adhesive TypeSilicone
Product ColorBrown
Maximum Operating Temperature (Fahrenheit)500.0
Overall Width (Imperial)3.0
Total Tape Thickness without Liner (Metric)0.14
Overall Length (Metric) UOMm
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) MaterialGlass Cloth/PTFE
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial) UOMoz/in
Overall Length (Imperial) UOMyd
Overall Length (Metric)32.91
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/100mm
