3M Products & Supplies

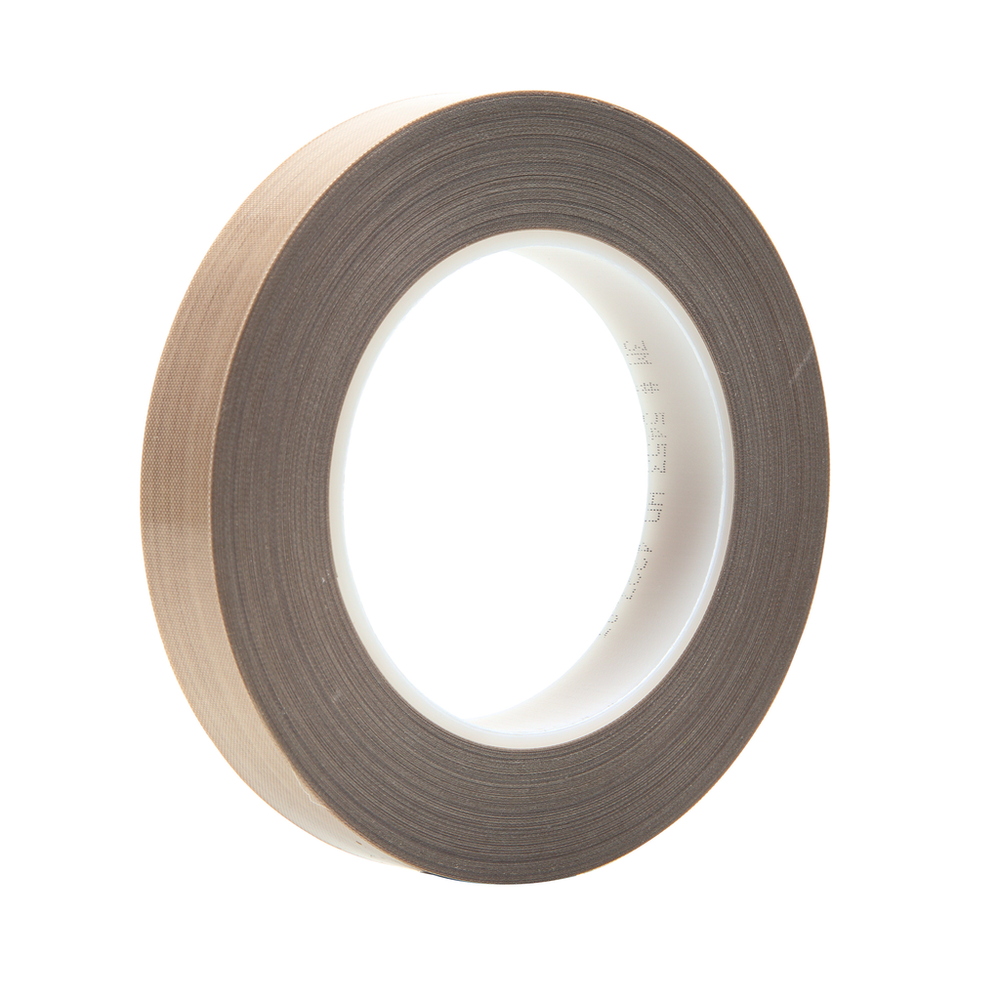

3M™ PTFE Glass Cloth Tape 5453, Brown, 1/2 in x 36 yd, 8.2 mil, 18 Roll/Case - 7010314431

Sold As: 18-Pack
SKU: 7010314431
MPN: 7010314431
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200161582
3M ID: 70016054481
5 Digit UPC: 16158
$2,892.60 ($160.70 / Count)
Hurry up! Current stock:

Product Description

Premium performance 3M™ PTFE Glass Cloth Tape 5453 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Silicone adhesive offers high temperature performance and long aging
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Back Side Adhesive Thickness (Metric)0.15
Backing (Carrier) Thickness (Imperial)6.0
Back Side Adhesive Thickness (Metric) UOMmm
Adhesive TypeSilicone
Total Tape Thickness without Liner (Imperial)8.2
Maximum Operating Temperature (Celsius)260.0
Maximum Operating Temperature (Fahrenheit)500.0
Product ColorBrown
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-100.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.15
Overall Length (Imperial)36.0
Tensile Strength (Imperial) UOMoz/in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)32.91
Overall Width (Metric)12.7
Overall Width (Imperial)0.5
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial) UOMmil
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial)2800.0
Units per Case18.0
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) MaterialGlass Cloth/PTFE
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric)0.21
Elongation at Break5
Tensile Strength (Metric)3065.0
