3M Products & Supplies

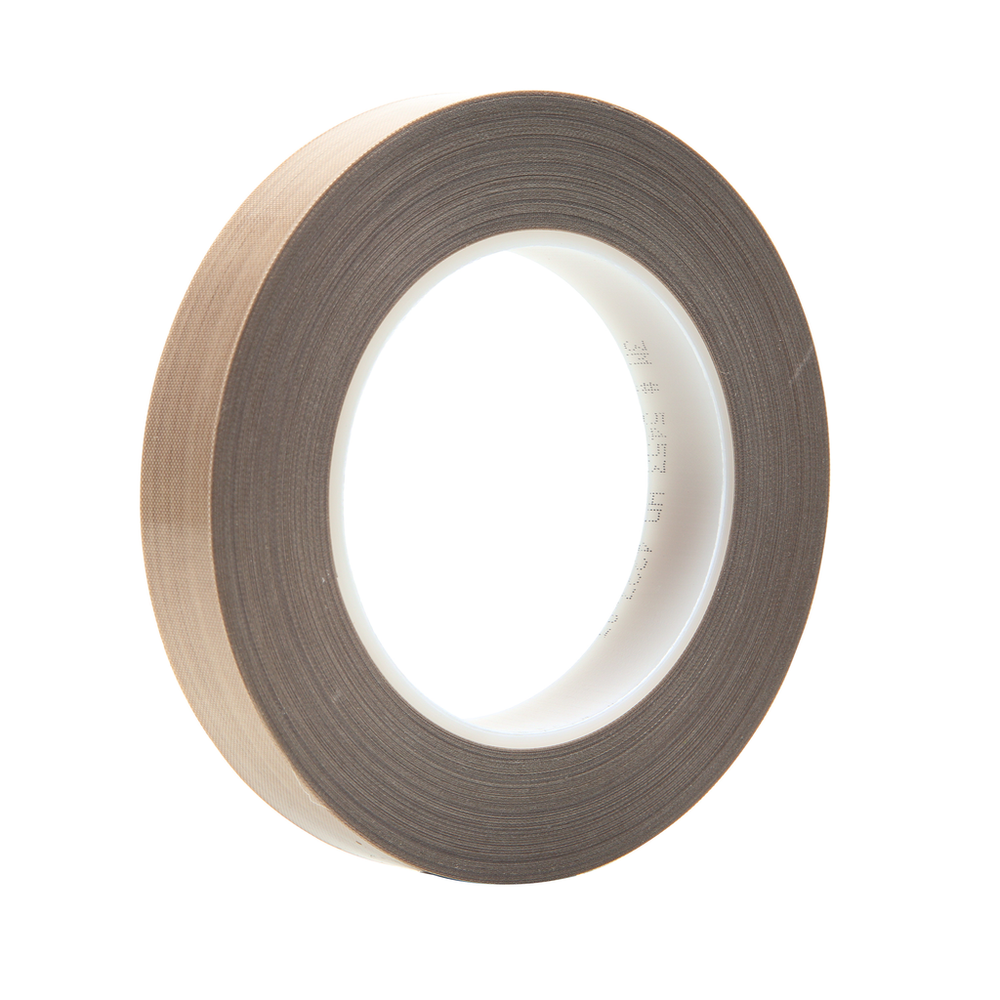

3M™ PTFE Glass Cloth Tape 5453, Brown, 3/4 in x 36 yd, 8.2 mil, 12 Roll/Case - 7000050132

Sold As: 12-Pack
SKU: 7000050132
MPN: 7000050132
For an accurate lead time please contact us
UPC: 00021200161599
3M ID: 70016054465
5 Digit UPC: 16159
$2,531.09 ($210.92 / Count)
Hurry up! Current stock:

Product Description

Premium performance 3M™ PTFE Glass Cloth Tape 5453 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Silicone adhesive offers high temperature performance and long aging
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear
  • Very low moisture absorption allows the tape to perform in many humid environments
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
Core Size (Imperial)3.0
Adhesive TypeSilicone
Overall Width (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Overall Width (Imperial)0.8
Core Size (Metric)7.62
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Metric) UOMmm
Product CategorySpecialty Tapes
Overall Length (Metric)32.9
Total Tape Thickness without Liner (Metric)0.21
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialGlass Cloth
Units per Case12.0
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)260.0
Overall Length (Metric) UOMm
Tensile Strength (Metric)60.0
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)2800.0
Minimum Operating Temperature (Celsius)-73.0
Maximum Operating Temperature (Fahrenheit)500.0
Back Side Adhesive Thickness (Imperial)2.3
Core Size (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)19.05
Overall Width (Metric) UOMmm
Core Size (Metric) UOMcm
Elongation at Break5
Product ColorBrown
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Metric)0.15
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-100.0
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMoz/in
Backing (Carrier) Thickness (Imperial)6.0
Total Tape Thickness without Liner (Imperial)8.2
Back Side Adhesive Thickness (Metric)0.06
