3M Products & Supplies

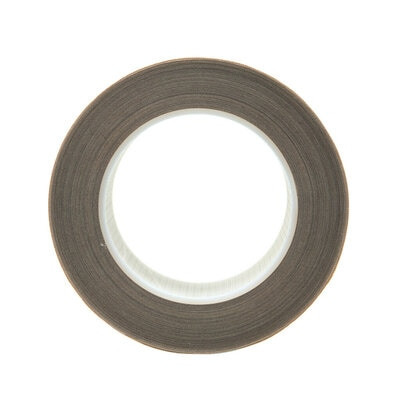

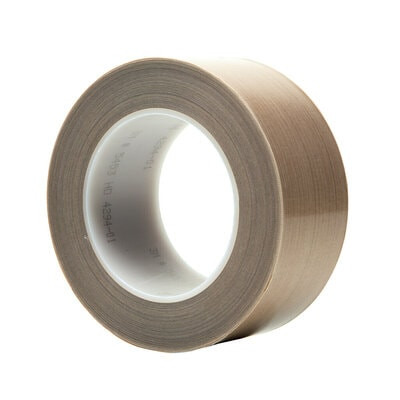

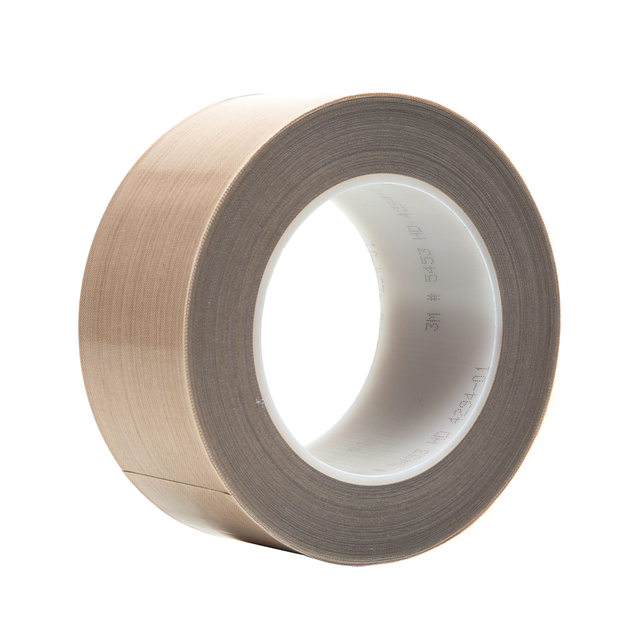

3M™ PTFE Glass Cloth Tape 5453, Brown, 3 in x 36 yd, 8.2 mil, 3 Roll/Case - 7000050130

Sold As: 15-Pack
SKU: 7000050130
MPN: 7000050130
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200161636
3M ID: 70016054424
5 Digit UPC: 16163
$12,054.58 ($803.64 / Count)
Hurry up! Current stock:

Product Description

Premium performance 3M™ PTFE Glass Cloth Tape 5453 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Silicone adhesive offers high temperature performance and long aging
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-100.0
Overall Width (Imperial)3.0
Total Tape Thickness without Liner (Imperial)8.2
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Units per Case3.0
Indoor/OutdoorIndoor/Outdoor
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)6.0
Tensile Strength (Imperial) UOMoz/in
Minimum Operating Temperature (Celsius) UOMDegree
Elongation at Break5
Core Size (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.21
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Metric) UOMcm
Shelf Life UOMMonth
Tensile Strength (Imperial)2800.0
Back Side Adhesive Thickness (Imperial)2.3
Overall Width (Imperial) UOMin
Adhesive TypeSilicone
Overall Length (Imperial)36.0
Tensile Strength (Metric)60.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Imperial)3.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorBrown
Backing (Carrier) MaterialGlass Cloth
Back Side Adhesive Thickness (Metric)0.06
Core Size (Metric)7.62
Maximum Operating Temperature (Celsius)260.0
Maximum Operating Temperature (Fahrenheit)500.0
Minimum Operating Temperature (Celsius)-73.0
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.15
Overall Length (Metric)32.9
Overall Width (Metric) UOMcm
Overall Width (Metric)7.6
