3M Products & Supplies

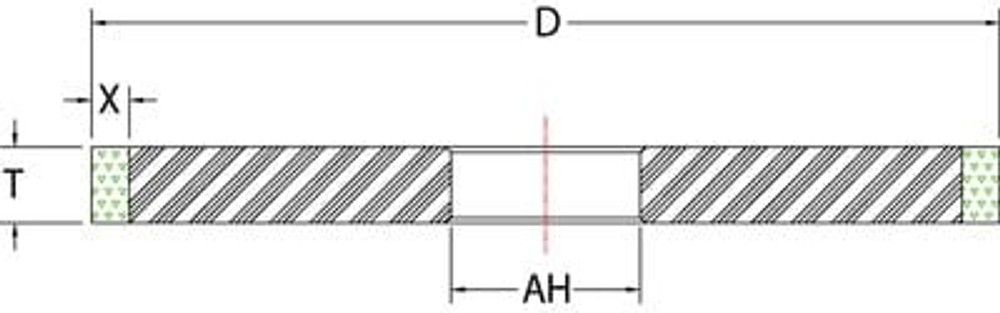

3M™ Resin Bond CBN Wheels and Tools, 6A2, 3X1-1/2X.7874, X=1/8, W=.188 B220 164BL - MMMRBBW36950 - 7000045334

SKU: 7000045334
MPN: 7000045334
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051141310855
3M ID: 60440264434
5 Digit UPC: 31085
$270.86 each
Hurry up! Current stock:

Product Description

3M™ CBN Resin Wheel 164BK wheels are used to generate the flute which is the helical or straight groove in the body of the cutting tools made of tool steel and high speed steel. This general purpose wheel offers high form retention and good cut rate during grinding operations.

Features

  • Cubic boron nitride abrasive mineral provides fast cut rates at high temperatures
  • Designed for water based coolants
  • Best used for grinding high speed steel, tool steels, and other hard to grind ferrous metals
  • The resin bond system is designed to provide high form retention when fluting
  • Arbor holes are made to customer specifications, so you get exactly the size you need

Downloads

Specifications

Country of OriginUnited States
Bond TypeResin
Overall Thickness (Imperial) UOMin
Overall Thickness (Metric) UOMmm
Center Hole Diameter (Metric)20.0
Product FormWheel
Overall Diameter (Imperial) UOMin
Overall Diameter (Metric) UOMmm
Overall Thickness (Metric)38.1
Center Hole Diameter (Imperial) UOMin
Center Hole Diameter (Imperial)0.7874
Center Hole Diameter (Metric) UOMmm
Overall Diameter (Metric)76.2
Overall Thickness (Imperial)1.5
Overall Diameter (Imperial)3.0
Shape Code6A2
Abrasive MaterialCBN
