3M Products & Supplies

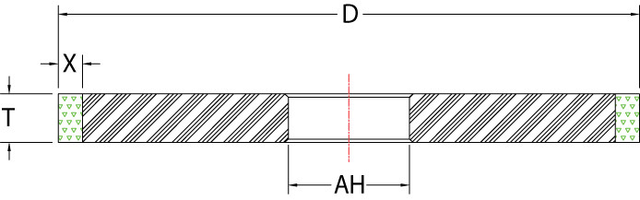

3M™ Resin Bond CBN Wheels and Tools, 6A2, 3X1-1/2X.7874, X=1/8, W=3/16 B220 164BL - MMMRBBW47114 - 7010492103

SKU: 7010492103
MPN: 7010492103
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308238957
3M ID: 65500357747
5 Digit UPC: 23895
$367.96 each
Hurry up! Current stock:

Product Description

3M™ CBN Resin Wheel 164BL is used for grinding primary and secondary relief angles on cutting tools made of tool steel and high speed steel. This general purpose wheel offers high cut rates, great form retention and increased thermal stability during higher temperature grinding operations.

Features

  • Best used for grinding high speed steel, tool steels and ferrous metals
  • Arbor holes are made to customer specifications, so you get exactly the size you need
  • Resin bonding provides great thermal stability during high temperature grinding operations
  • High form retention for precise cutting action and stock removal
  • Cubic boron nitride abrasive mineral provides fast cut rates at high temperatures

Specifications

Country of OriginUnited States
Center Hole Diameter (Metric) UOMmm
Overall Diameter (Metric) UOMmm
Product FormWheel
Overall Thickness (Metric) UOMmm
Overall Diameter (Imperial)3.0
Overall Diameter (Imperial) UOMin
Center Hole Diameter (Imperial)0.7874
Overall Thickness (Imperial)1.5
Abrasive MaterialDiamond
Overall Diameter (Metric)76.2
Bond TypeResin
Center Hole Diameter (Metric)20.0
Overall Thickness (Imperial) UOMin
Shape Code6A2
Overall Thickness (Metric)38.1
Center Hole Diameter (Imperial) UOMin
