3M Products & Supplies

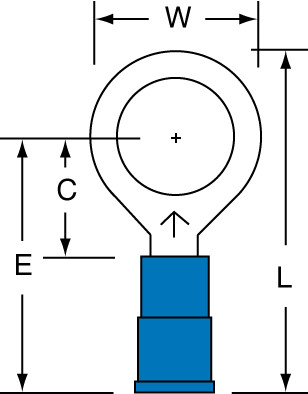

3M™ Ring Tongue, Nylon Insulated w/Insulation Grip 16-14, 94732, 12-38-NB - 7010397276

Sold As: 10-Pack
SKU: 7010397276
MPN: 7010397276
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947325
3M ID: 80611252323
MPN: 94732
$373.39 ($37.34 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Metric)9.525
Connection TypeCrimp
Country of OriginUnited States
Terminal TypeRing
Ring TypeStandard
Barrel StyleBrazed
UL File NumberE23438
Terminal StyleStandard
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Metric)1.31 mm²
Minimum Stud Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Size0.375 in
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius)175.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)14 AWG
Insulation MaterialNylon with Insulation Grip
Minimum Conductor Size (Imperial)16 AWG
