3M Products & Supplies

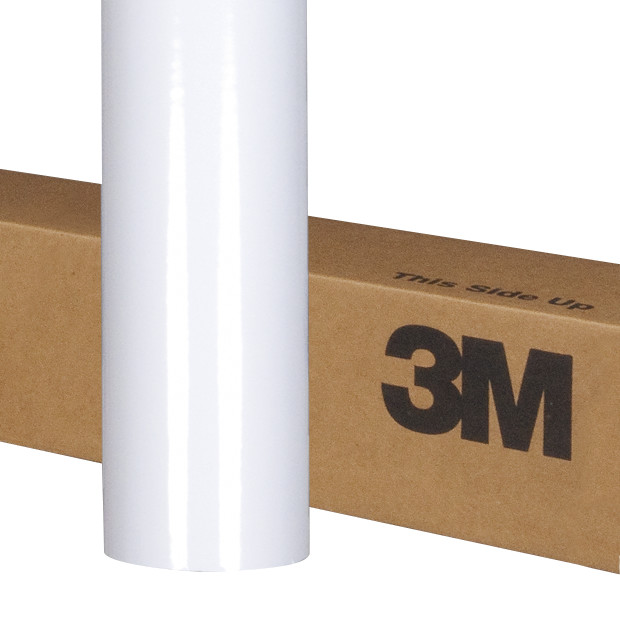

3M™ Scotchcal™ Graphic Film 3650-10, White, (12 in x 15 in, Box), Double Butt Splice, 12 in x 250 yd - 7010303216

SKU: 7010303216
MPN: 7010303216
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128789896
3M ID: 75347091987
5 Digit UPC: 78989
$1,258.86 each
Hurry up! Current stock:

Product Description

A premium cast film (50 µm) with a permanent, clear, pressure sensitive adhesive. This film can be used with gasoline vapors and spills as long as those are not able to penetrate the edges of the film. Available in white, black and transparent version. Suitable for application on to flat surfaces with or without rivets, but not corrugations. Up to 10 years durability.

Features

  • Available in white, black and transparent and resists gasoline and vapor spills
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Warranty Coverage3M Basic Product Warranty
Minimum Service Temperature (Celsius)-60.0
RemovabilityRemovable with Heat
Maximum Service Temperature (Fahrenheit)224.6
Film Thickness (Metric)50.0 Micron
Overall Width (Metric) UOMm
Service Life6.0 Year
SubstrateFiberglass Reinforced Plastic; Glass; Metal
Product ColorWhite
Minimum Service Temperature (Fahrenheit)-76.0
Film TypeCast
Overall Width (Imperial)12.0
Converting ProcessElectrocut
OpacityTransparent
Film Thickness (Imperial)2.0 mil
Overall Length (Metric)229.0
Overall Length (Imperial) UOMyd
ApplicationLabeling
Overall Width (Imperial) UOMin
FeaturesAir Release Adhesive; Pressure-sensitive Adhesive
Interior/ExteriorExterior
Overall Width (Metric)0.31
Application SurfaceFlat
Overall Length (Imperial)250.0
Imaging MethodSolvent Screenprint; UV Screenprint
Overall Length (Metric) UOMm
Adhesive TypeSolvent Acrylic
Adhesive ColorTransparent
Maximum Service Temperature (Celsius)107.0
Product UsageBuildings; Buses; Illuminated Signage; Metros; Public transport; Specialty Lighting; Trailers; Trams; Trucks; Vehicles; Walls; Windows
