3M™ Scotchcast™ 3-Cond Non-Shielded Splice 5753 (2131), 1 Kits/Case - 7100009634

SKU: 7100009634
MPN: 7100009634
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128591710
3M ID: 80611468309
5 Digit UPC: 59171
$2,265.17 each
Hurry up! Current stock:

Product Description

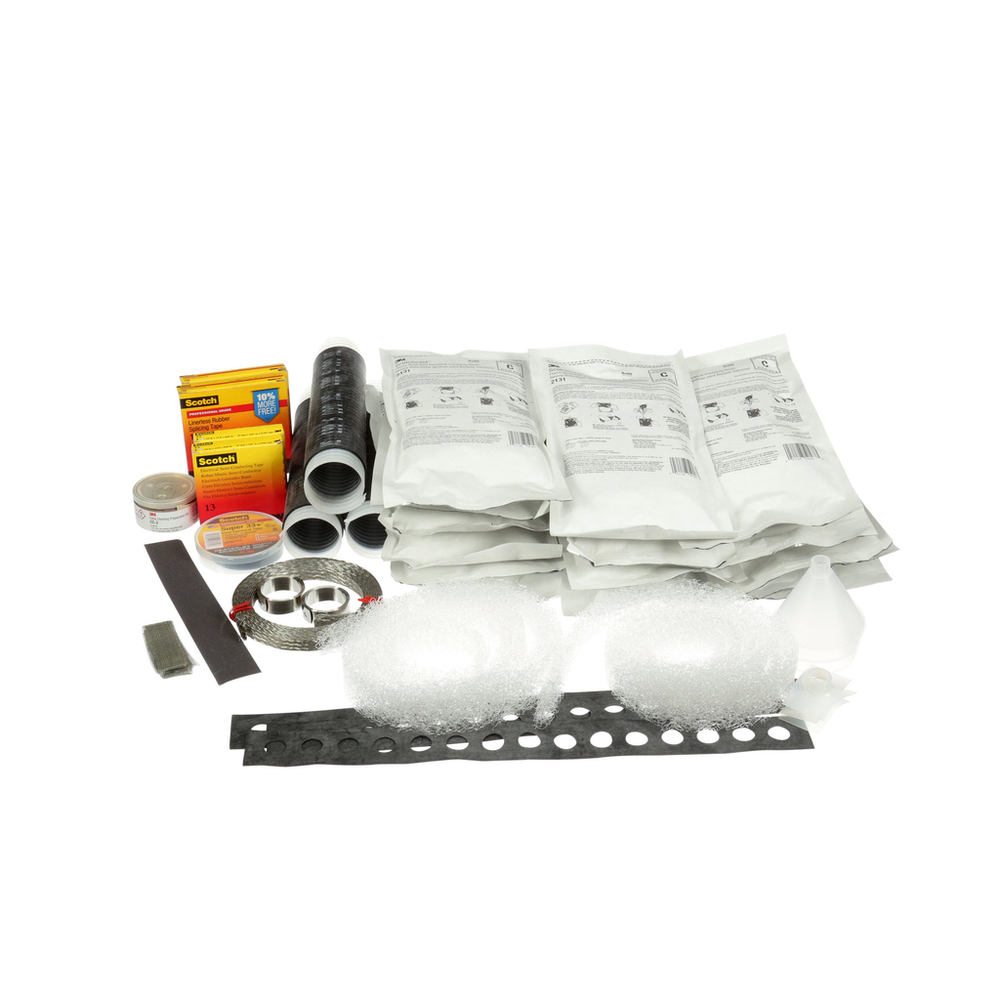

3M™ Scotchcast™ Cold Shrink Inline Splice Kits 5750 Series with 3M™ Scotchcast™ Flame-Retardant Compound 2131 is designed for non shielded, armored or non armored solid dielectric cables. This kit is suitable for use with cable trays, junction boxes, weather exposed, aerial and wet or dry locations. This kit is used with 10000 and 20000 Series aluminium or copper inline compression connectors.

Features

  • For use with non-shielded, solid dielectric cables and indoor/outdoor applications
  • MSHA Approved and RoHS 2011/65/EU Compliant
  • Includes Scotch® Electrical Grounding Braid 25, 3M™ Constant Force Springs, Scotch® Super 33+™ Vinyl Electrical Tape, Scotch® Electrical Shielding Tape 24 and more
  • 3M™ Scotchcast™ Flame-Retardant Compound 2131 is used as an insulating material for cable splices
  • 1 kV-rated for multiple and 5 kV-rated for single-cable applications
Spec Sheet



Downloads

Specifications

Shelf Life1080
Country of OriginUnited States
Maximum Conductor Size (Imperial)750 kcmil
Conductor Sizes (Imperial)350 kcmil
Voltage1 kV
Number of Conductors3.0
Insulation Outer Diameter (Metric) UOMmm
Splice TypeResin
Insulation Outer Diameter (Imperial) UOMin
Conductor MaterialAluminum
Cable ShieldingNon-shielded
Insulation Outer Diameter (Imperial)0.95
Insulation Outer Diameter (Metric)24.13
Minimum Conductor Size (Imperial)350 kcmil
