3M Products & Supplies

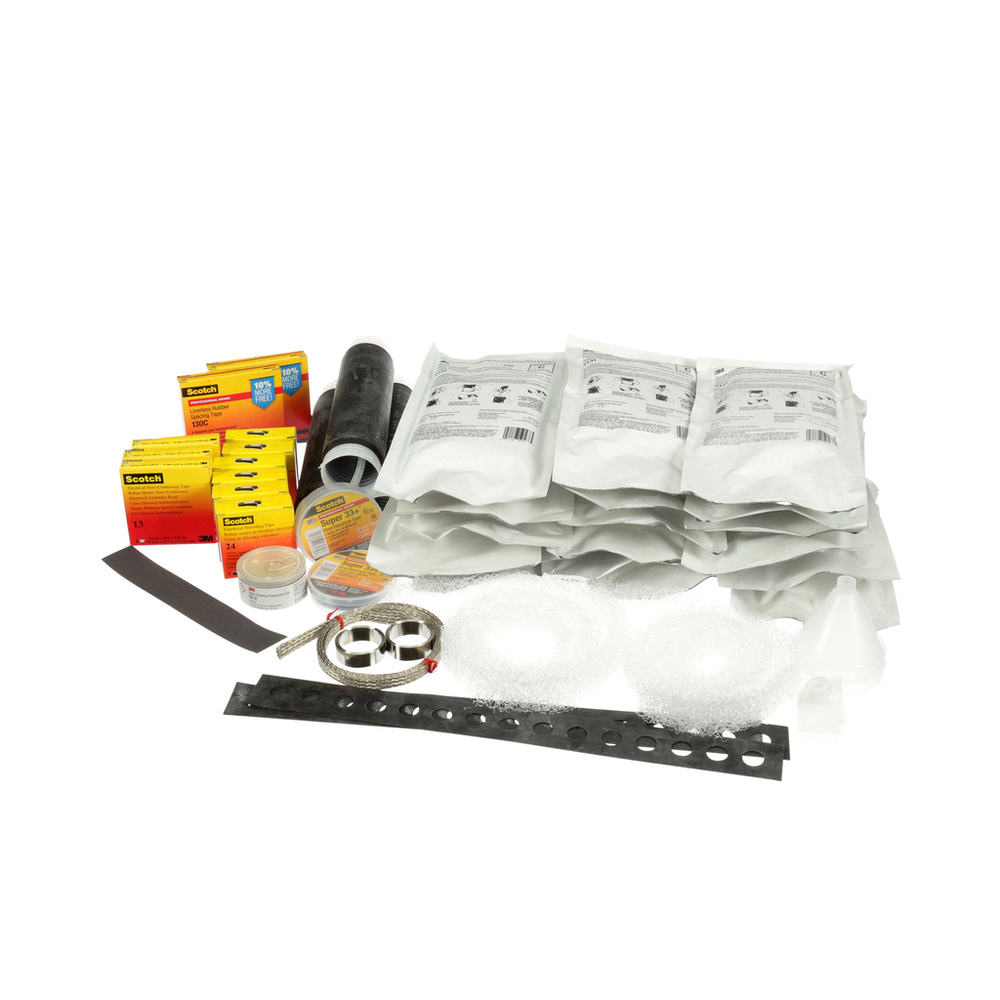

3M™ Scotchcast™ 3-Cond Shielded Splice 5762 (2131), 1 Kits/Case - 7100009642

SKU: 7100009642
MPN: 7100009642
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128591703
3M ID: 80611468291
5 Digit UPC: 59170
$3,853.00 each
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Cold Shrink Inline Splice Kits 5760 Series with 3M™ Scotchcast™ Flame-Retardant Compound 2131 is designed for splicing shielded, 5/8 kV and 15 kV armored or non armored cables. It is used in cable trays, junction boxes and cable racks/hangers, as well as aerial and wet or dry locations.

Features

  • The insulators are made of EPDM for a long-term seal and offer easy installation
  • The constant force springs provide a connection for ground braid jumpers
  • Rated for 5/8 kV and 15 kV applications
  • Includes 3M™ Scotchcast™ Flame-Retardant Compound 2131
  • Splices shielded cables
  • Withstands a temperature range of 90 °C to 130 °C (194 °F to 266 °F)
Spec Sheet



Downloads

Specifications

Shelf Life1080
Country of OriginUnited States
Maximum Connector O.D. (Metric)35.5 mm
Product Series5760 Series
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
ApplicationCable Connection
Insulation Outer Diameter (Imperial)0.93
Insulation O.D. Range0.93 - 1.94 Inch
Insulation Outer Diameter (Metric)23.622
Number of Conductors3.0
Maximum Connector O.D.1.40 in
Cable ShieldingTape Shield
Maximum Connector Length5.0 inch
Insulation Outer Diameter (Metric) UOMmm
Splice TypeInline
Insulation Outside Diameter Range (Metric)23.6 - 49.3 mm
Maximum Connector Length (Metric)127.0 mm
Product TechnologyCold Shrink, Resin
Typical Splice Length (Metric)1118 mm
Insulation Outer Diameter (Imperial) UOMin
