3M™ Scotchcast™ Mining Splice 8096-4 (2131), 1 Kits/Case - 7000133443

SKU: 7000133443
MPN: 7000133443
For an accurate lead time please contact us
UPC: 00051128591796
3M ID: 80611468382
5 Digit UPC: 59179
$1,175.44 each
Hurry up! Current stock:

Product Description

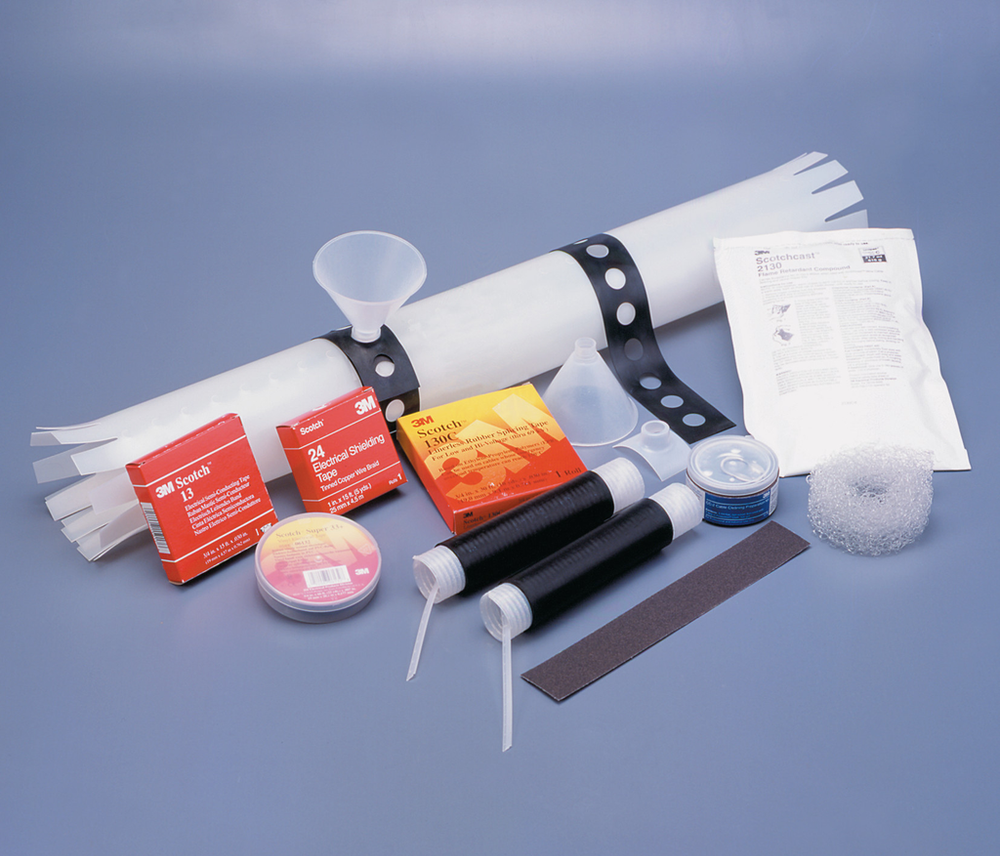

3M™ 8096 Series Cold Shrink Resin Mine and Portable Cable Splice Kit with flame retardant compound 2131 is designed for splicing SHD GC, MPF GC and MPF non shielded cables that are 5 to 15 kV rated. It provides splicing on draglines, power shovels, drills, type MPF underground power feeder cables and select trailing cables.

Features

  • Perfect for use on draglines, power shovels, drills and type MPF underground power feeder cables used in mining applications
  • Rated for 5 to 15 kV applications
  • 3M™ Scotchcast™ Flame-Retardant Compound 2131 is used as an insulating material for cable splices
  • Designed for splicing SHD-GC, MPF-GC and MPF non-shielded cables
  • MSHA Approved and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Cable TypeMPF
Flame RetardantYes
MaterialEPDM Rubber
Maximum Conductor Size (Imperial)300 kcmil
Conductor MaterialAluminum
Minimum Conductor Size (Imperial)4 AWG
Product ColorBlack
Number of Conductors3.0
Conductor Sizes (Imperial)1 AWG
Voltage ApplicationMedium Voltage
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mining Sector ApprovalYes
ApplicationCable Connection
Indoor/OutdoorBoth
Voltage15 kV
