3M Products & Supplies

3M™ Scotchcast™ Flexible Splice 82-BF1 (2131), 10 Kits/Case - 7100011582

Sold As: 10-Pack
SKU: 7100011582
MPN: 7100011582
For an accurate lead time please contact us
UPC: 00051128591758
3M ID: 80611468341
5 Digit UPC: 59175
$1,153.52 ($115.35 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Flexible Power Cable Splicing Kits 82-BF Series Resin Compression C Tap Cable Splice Kit with flame retardant compound 2131 is designed for tap splices on non shielded portable power cables and cords. This kit is suitable for use on single or multi conductor cables using a compression C tap connector. The tap splice can accommodate cables and cords that are rated up to 1 kV.

Features

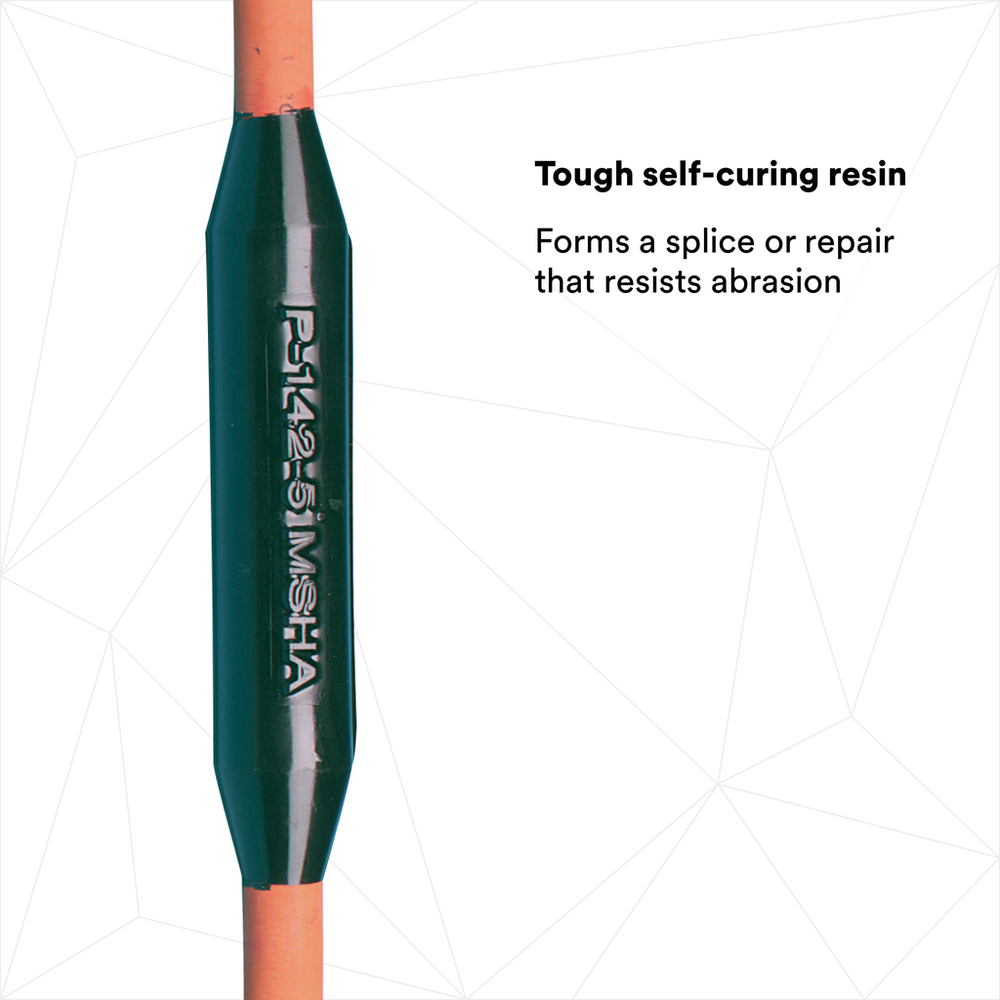

  • The self-curing resin forms a splice or repair that resists abrasion

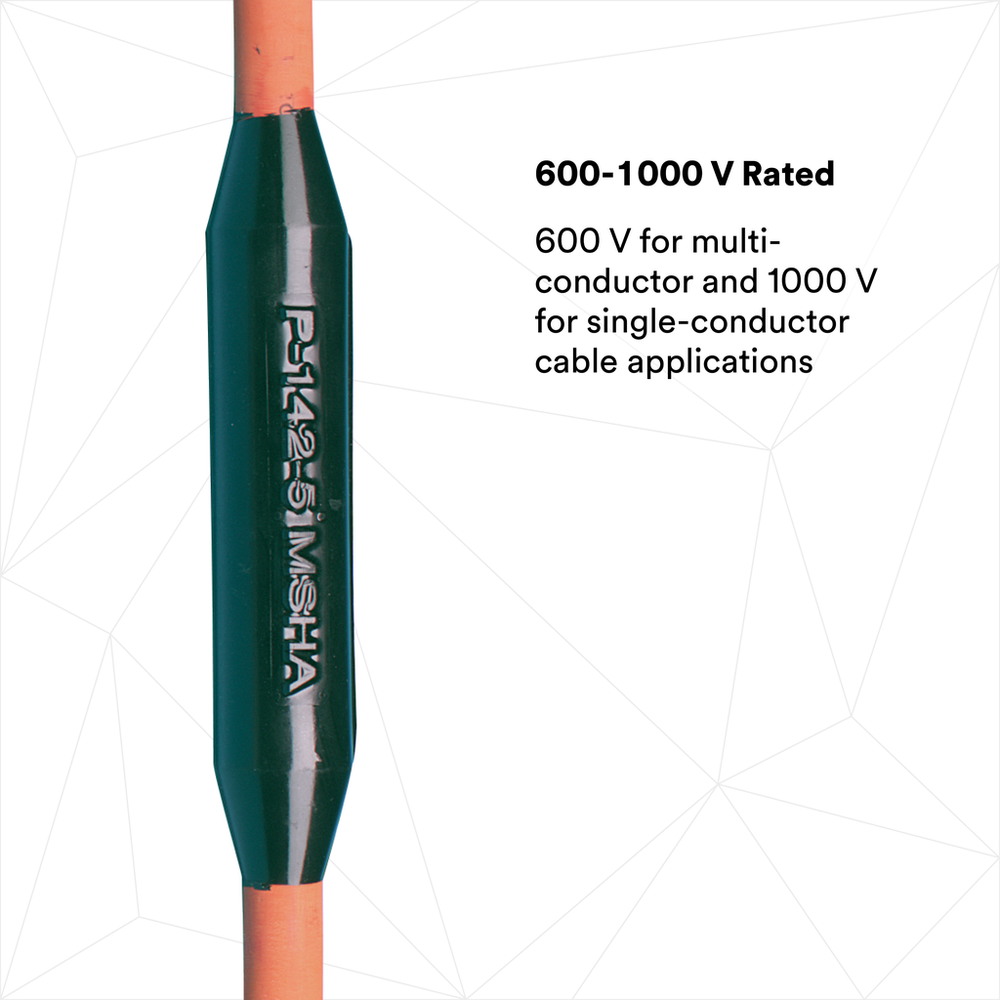

  • Rated for up to 1 kV applications
  • Suitable for use with compression C-tap connectors

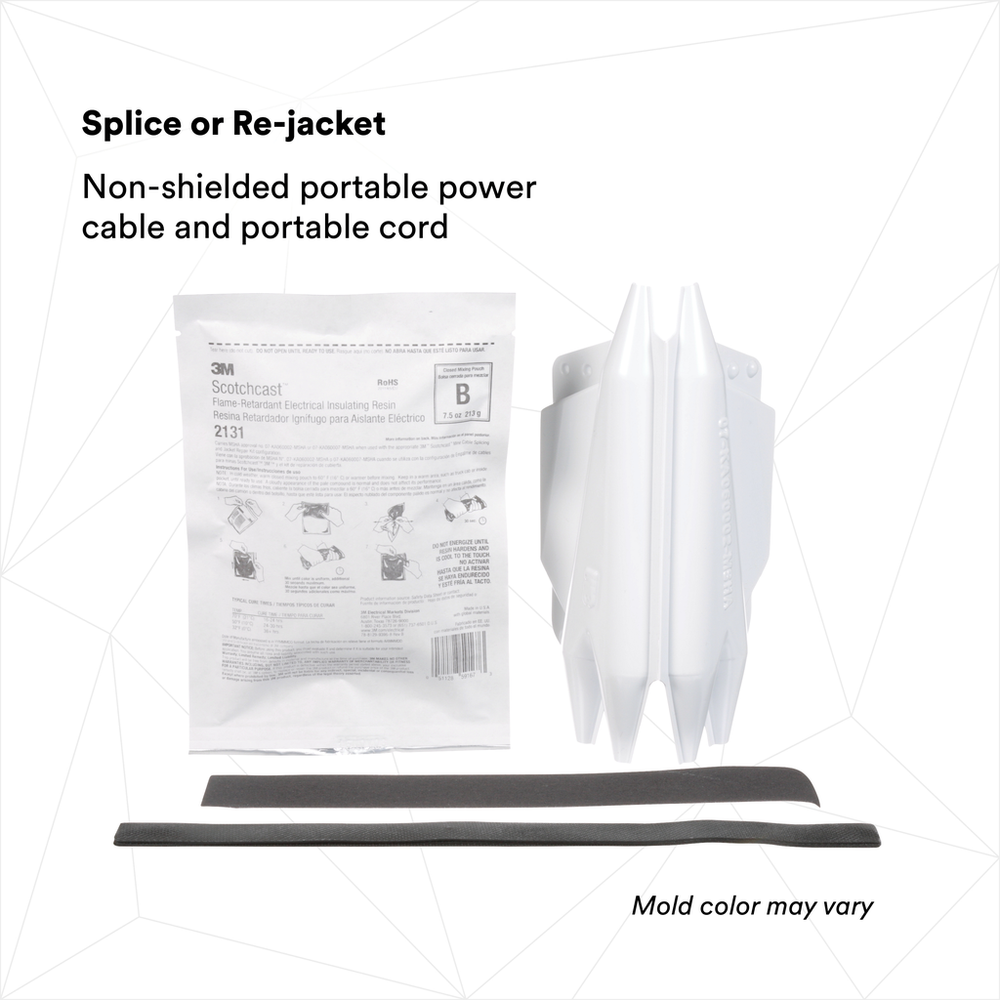

  • Designed to splice or re-jacket non-shielded portable power cable and portable cord

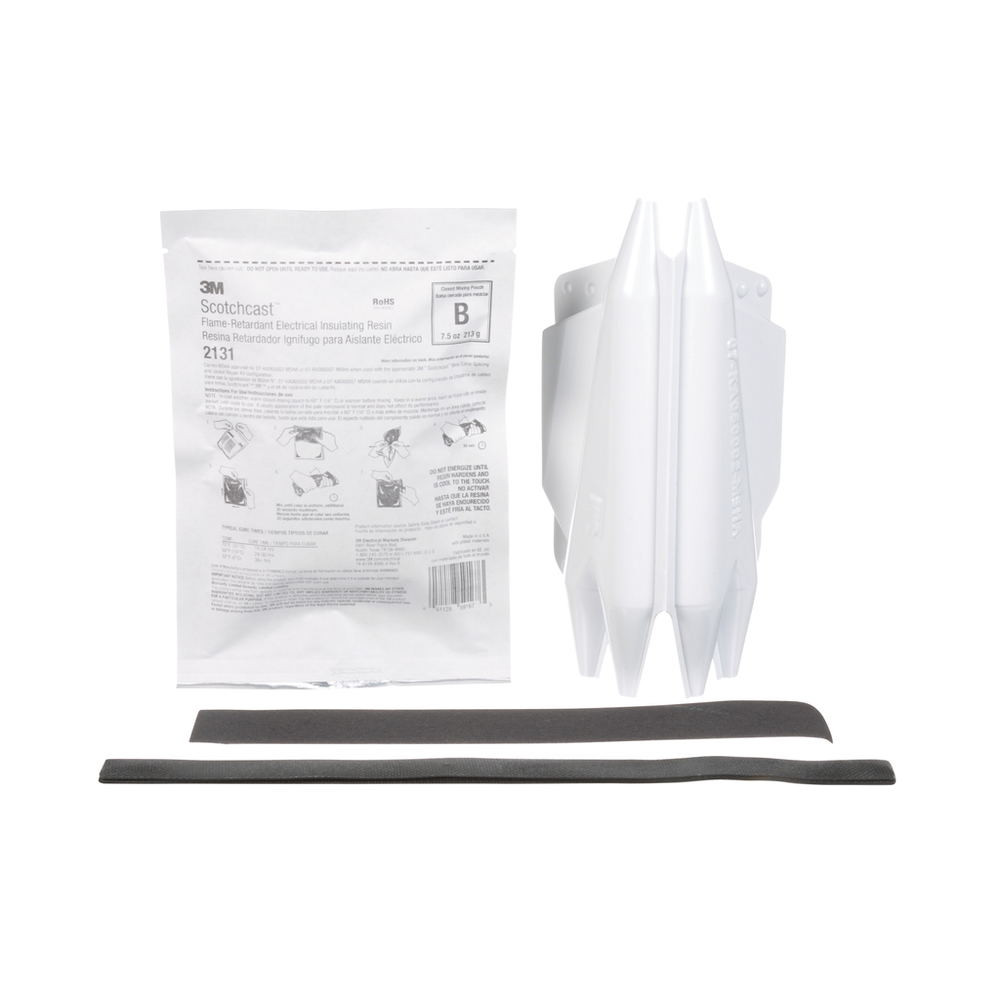

  • Kit includes 3M™ Scotchcast™ Flame-Retardant Compound 2131
  • MSHA Approved and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Product TypeResin Splice
Mining Sector ApprovalYes
ModelCast Resin
Product Series82-B Series
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation O.D. Range0.25 - 0.80 Inch
Conductor AmountSingle
Product ColorBlack
Maximum Operating Voltage5 Kilovolt
Dielectric Strength (V/mil)343 V/mil
Cable Typemulti core, non shielded, rubber insulated reeling cables
Shelf Life UOMMonth
Hardness82 Shore A
With Screw ConnectorsNo
Product TechnologyResin
Voltage5 kV
Indoor/OutdoorBoth
Voltage Rating0.6/1 kV
