3M™ Scotchcast™ Flexible Splice 82-F2 (2131), 10 Kits/Case - 7100010200

Name: 3M™ Scotchcast™ Flexible Splice 82-F2 (2131), 10 Kits/Case - 7100010200
Brand: 3M Products & Supplies
SKU: 7100010200
Price: 1711.88 USD
Availability: InStock

Sold As: 10-Pack

SKU: 7100010200

MPN: 7100010200

For an accurate lead time please contact us

UPC: 00051128591772

3M ID: 80611468366

5 Digit UPC: 59177

$1,711.88 ($171.19 / Count)

Hurry up! Current stock:

Quantity:

Product Description

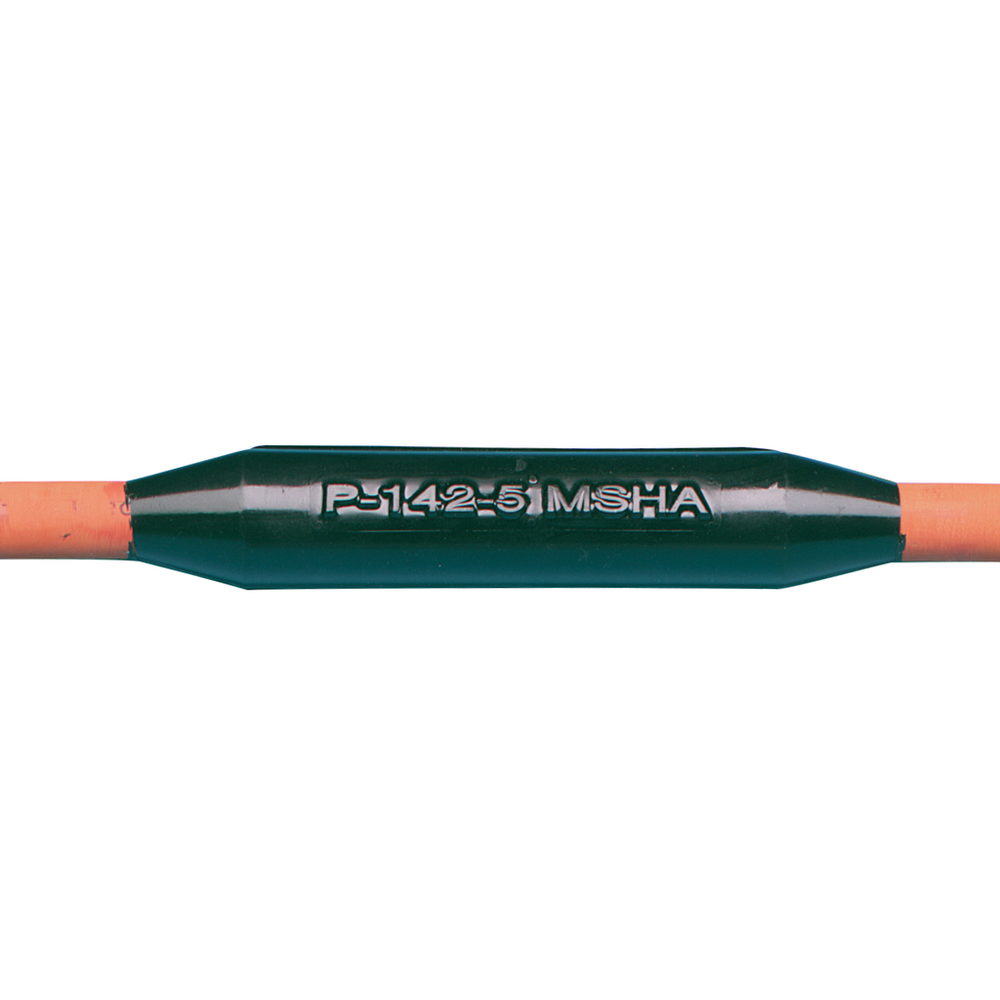

3M™ Scotchcast™ Flexible Power Cable Splicing Kits 82-F Series with3M™ Scotchcast™ Flame-Retardant Compound 2131, is designed for inline splicing on non shielded portable power cables and cords. The wet/dry flexible power cable splice kit is suitable for use on single and multi conductor cables, depending on the voltage rating.

Features

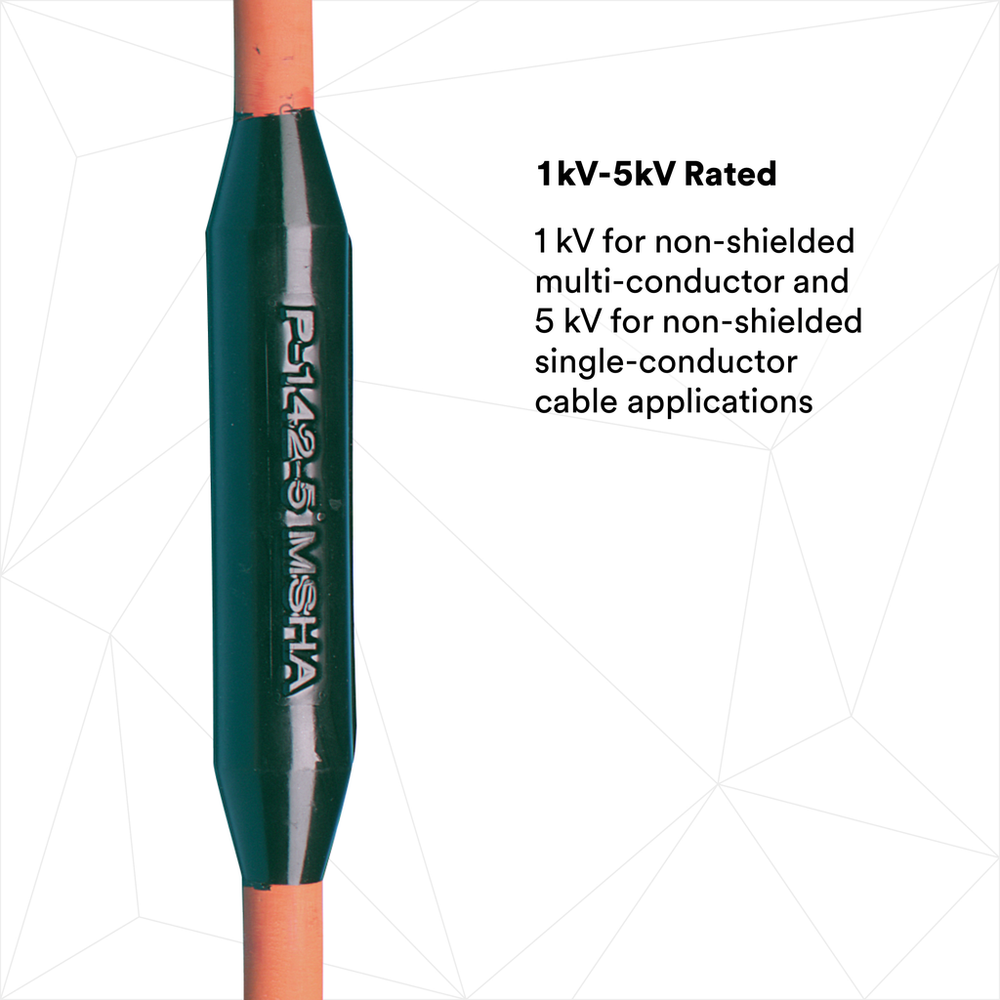

1 kV-rated for multi-conductor and 5 kV-rated for single-conductor cable applications
Flame-retardant

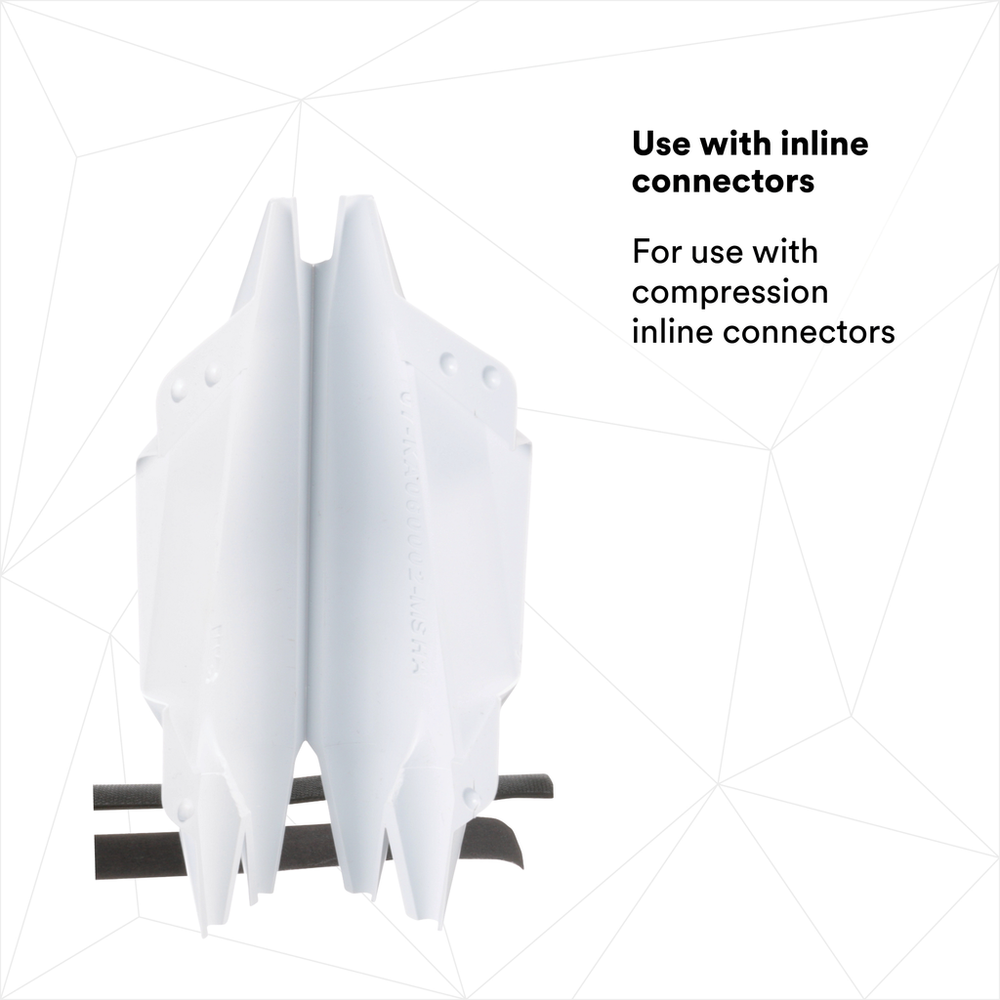

Suitable for use with compression inline connectors
Tough, yet flexible (semi-flexible)
Designed to splice or re-jacket non-shielded portable power cable and portable cord

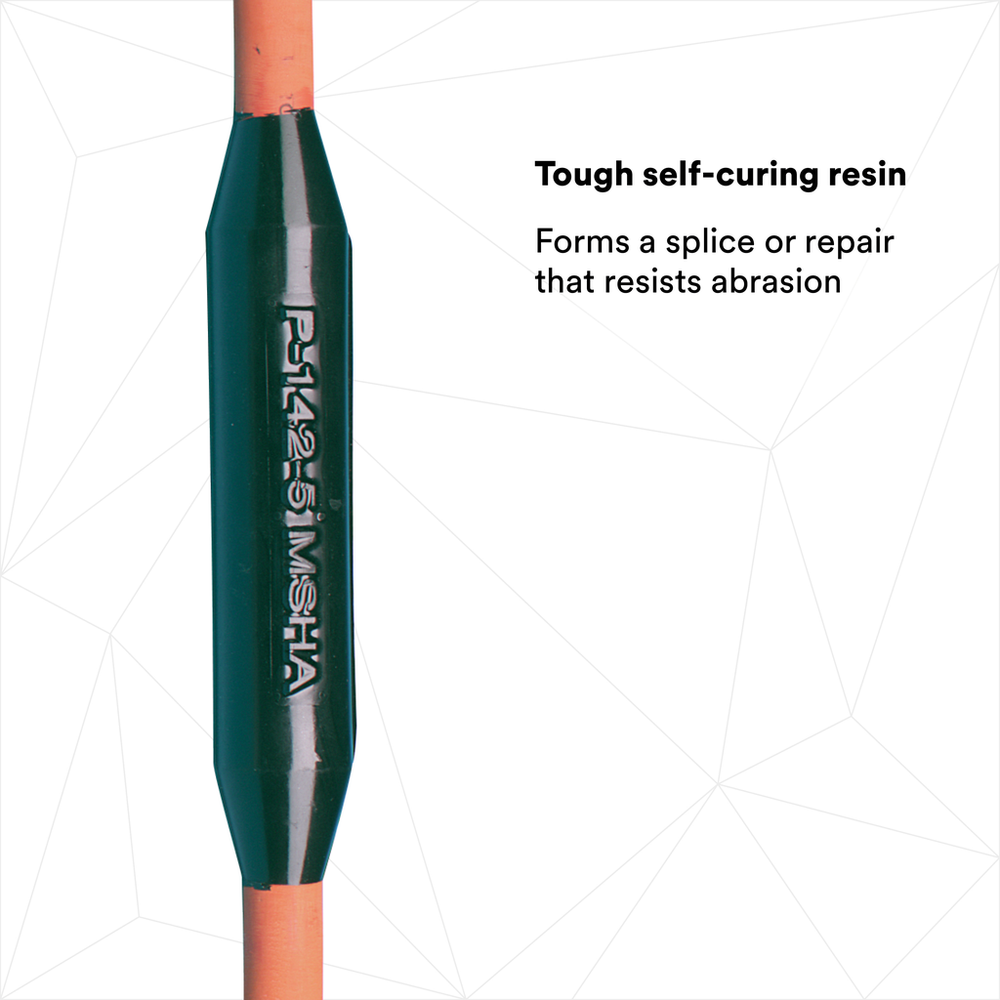

Self-curing resin for cable splice or repair

Spec Sheet

Downloads

Document Instructions

Specifications

Country of Origin	United States
Indoor/Outdoor	Both
Maximum Operating Voltage	5 Kilovolt
Voltage Application	Low Voltage
Maximum Insulation Outer Diameter (Imperial) UOM	in
Dielectric Strength (V/mil)	343 V/mil
Product Technology	Resin
Product Type	Resin Splice
Minimum Insulation Outer Diameter (Metric) UOM	mm

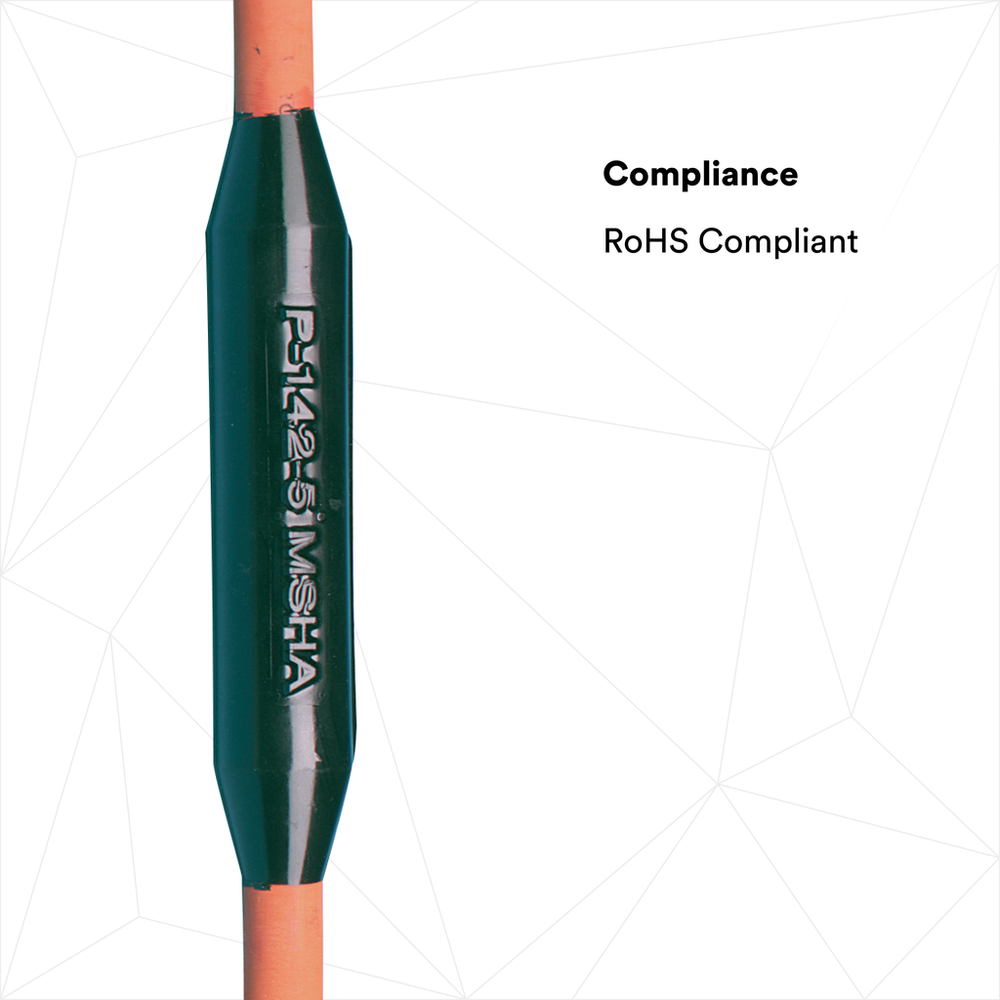

RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Hardness	82 Shore A
Mining Sector Approval	Yes
Cable Type	multi core, non shielded, rubber insulated reeling cables
Product Series	82-B Series
Minimum Insulation Outer Diameter (Metric)	20.0
Insulation Outside Diameter Range (Metric)	20.0 - 30.0 mm
Minimum Insulation Outer Diameter (Imperial) UOM	in
Shelf Life UOM	Month
Minimum Conductor Size (Metric)	70 mm²
Maximum Conductor Size (Imperial)	4/0 AWG
Insulation O.D. Range	0.80 - 1.20 Inch
Minimum Insulation Outer Diameter (Imperial)	0.8
Voltage	5 kV (single), 1 kV (multiple)
Cable Shielding	Non-shielded
Product Color	Black
Voltage Rating	0.6/1 kV
Maximum Insulation Outer Diameter (Imperial)	1.2
Maximum Insulation Outer Diameter (Metric)	30.0
Connection Max Outside Diameter	Multiple Conductors - 1.30 inch
Cable Outside Diameter Range	0.80-1.20 inch
Maximum Conductor Size (Metric)	95 mm²
Model	Cast Resin
Maximum Insulation Outer Diameter (Metric) UOM	mm
Insulation Outside Diameter Range	0.80 - 1.20 Inch
Minimum Conductor Size (Imperial)	2/0 AWG
