3M Products & Supplies

3M™ Scotchcast™ Electrical Resin 260, 44.1 lb(20 kg), CG GR-45, 1 Drum - 7100269244

Sold As: 1936-Pack
SKU: 7100269244
MPN: 7100269244
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060452689
3M ID: XA003900173
5 Digit UPC: 45268
$56,812.73 ($29.35 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Electrical Resin 260 is a 1 part, powder resin used for coating flat surfaces, corners and high points. This general purpose epoxy based, powder resin has a very low viscosity property, which makes it easy to infuse on any surface. The resin melts when it's heated, it flows to a controlled extent and then cures, bonding to the surface in a uniform, thick coating.

Features

  • Heat-, chemical- and moisture-resistant
  • Has 12 to 16-second gel time at 380 °F (193 °C)

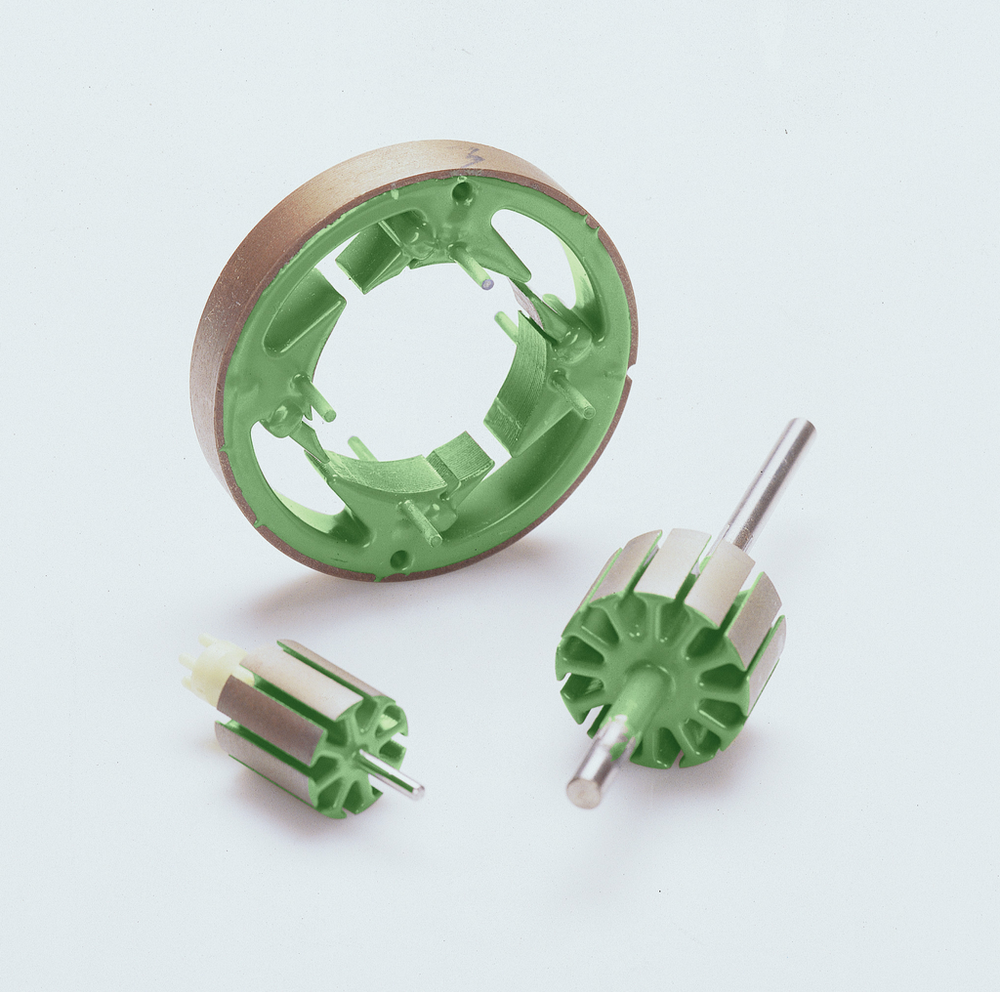

  • Useful for moisture-proofing and insulating armatures, stators, buss bars and toroid cores
  • Withstands temperatures of 356 °F (180 °C)
  • UL Listed, EIS Approved and RoHS 2011/65/EU Compliant
  • Compatible with electrostatic spray, fluid bed dip and venturi spray
Spec Sheet



Downloads

Specifications

Country of OriginChina
Applicable by Electrostatic SprayYes
ApplicationUtilities & Power: Coatings for Insulation
Cure MethodOven
Product ColorOlive
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Temperature RatingClass H (
Applicable by Fluid Bed DipYes
What Needs to be CoatedBus Bar
Product TypeElectrical Resin
Applicable by Electrostatic Fluid BedYes
Applicable by Venturi SprayYes
MaterialEpoxy
Maximum Operating Temperature (Celsius)180.0
FlexibilityRigid
Flame RetardantNo
Mining Sector ApprovalNo
Storage Time in Months24.0
Resin TypePowder
Voltage RatingInsulating
Maximum Operating Temperature (Celsius) UOMDegree
