3M™ Scotchcast™ Electrical Powder Resin 260, 44.1 lb(20 kg.), 1 Drum - 7100269245

Sold As: 1936-Pack
SKU: 7100269245
MPN: 7100269245
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060452696
3M ID: XA003900165
5 Digit UPC: 45269
$48,371.51 ($24.99 / Count)
Hurry up! Current stock:

Product Description

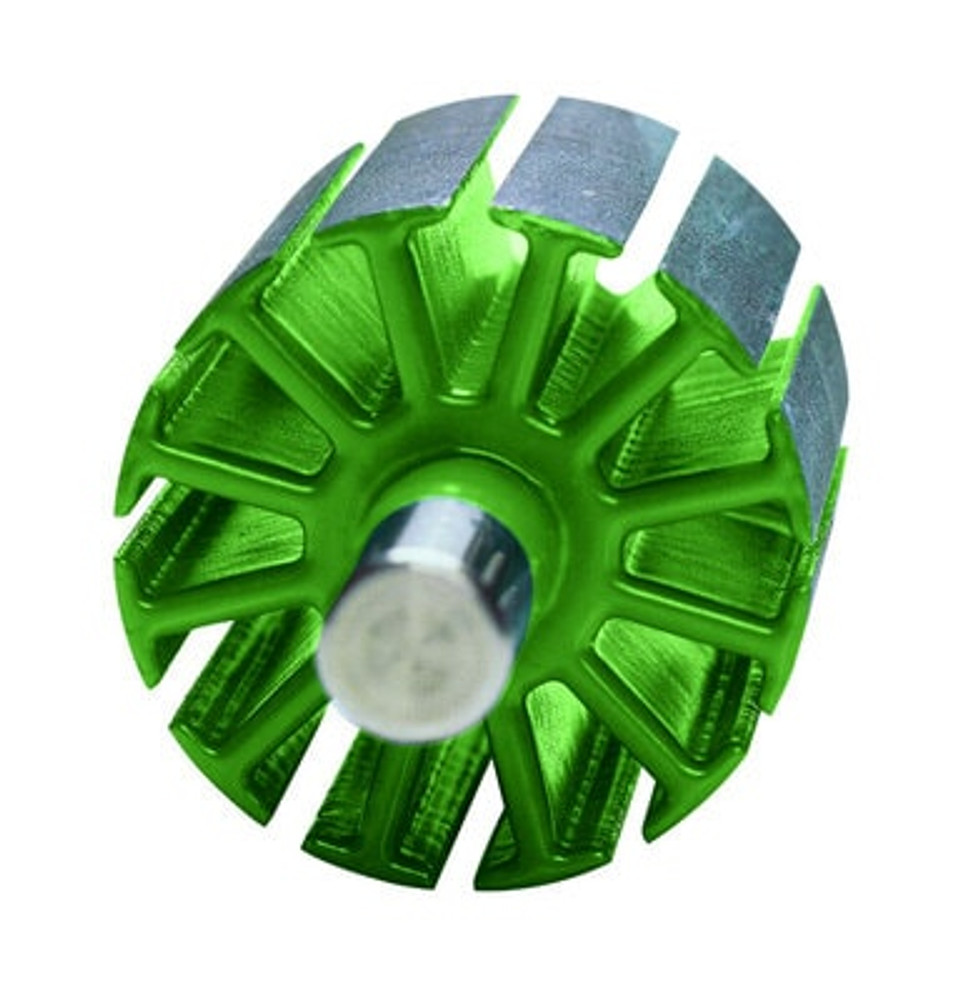

3M™ Scotchcast™ Electrical Resin 260 is a 1 part, powder resin used for coating flat surfaces, corners and high points. This general purpose epoxy based, powder resin has a very low viscosity property, which makes it easy to infuse on any surface. The resin melts when it's heated, it flows to a controlled extent and then cures, bonding to the surface in a uniform, thick coating.

Features

  • UL Listed, EIS Approved and RoHS 2011/65/EU Compliant
  • Useful for moisture-proofing and insulating armatures, stators, buss bars and toroid cores
  • Compatible with electrostatic spray, fluid bed dip and venturi spray
  • Withstands temperatures of 356 °F (180 °C)
  • Has 12 to 16-second gel time at 380 °F (193 °C)
  • Heat-, chemical- and moisture-resistant
Spec Sheet



Downloads

Specifications

Country of OriginChina
FlexibilityRigid
Applicable by Fluid Bed DipYes
Voltage RatingInsulating
Maximum Operating Temperature (Celsius)180.0
Maximum Operating Temperature (Celsius) UOMDegree
Storage Time in Months24.0
Mining Sector ApprovalNo
Applicable by Electrostatic SprayYes
What Needs to be CoatedBus Bar
ApplicationUtilities & Power: Coatings for Insulation
MaterialEpoxy
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product TypeElectrical Resin
Temperature RatingClass H (
Flame RetardantNo
Applicable by Electrostatic Fluid BedYes
Product ColorGreen
Cure MethodOven
Applicable by Venturi SprayYes
