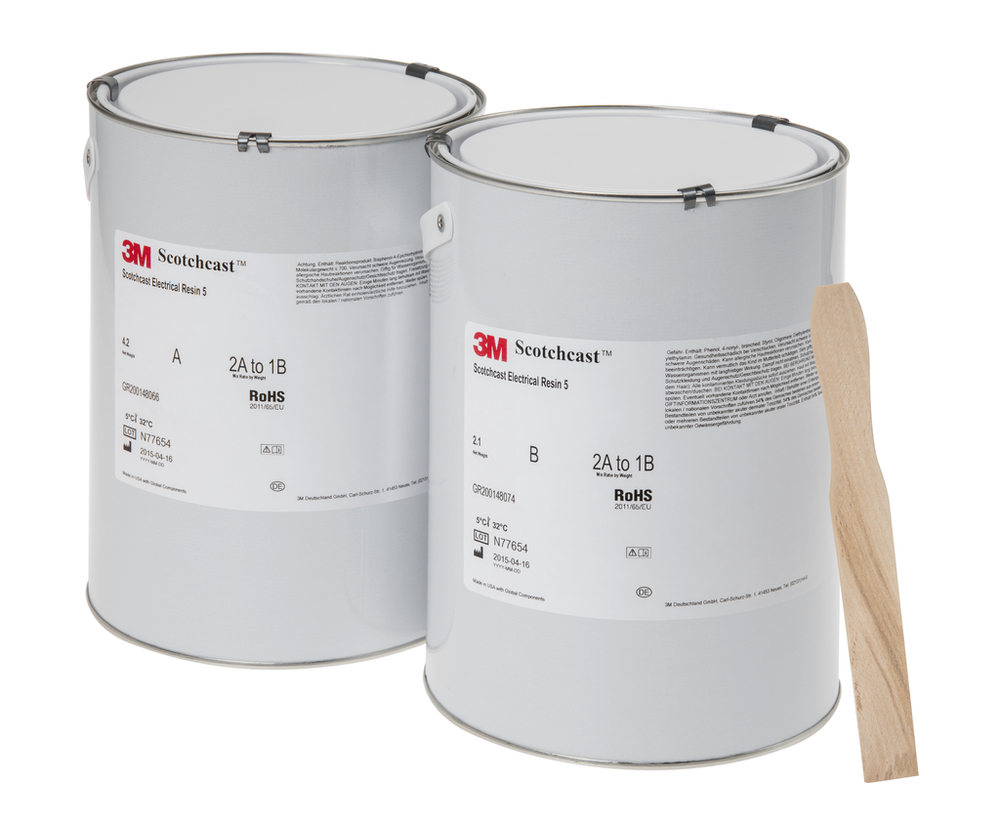

3M Scotchcast Electrical Resin 5N, part A, 47 lbs./pail

SKU: 7010410305
MPN: 7010410305
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50051128613578
3M ID: 80611616873
5 Digit UPC: 61357
Shelf Life: 730 Days
Country of Origin: USA
Manufacturer: 3M
Color: Clear Amber
$620.55 each
Hurry up! Current stock:
Product Description
3M Scotchcast Electrical Resin 5N is a 2 part, liquid resin used for electronic and electrical applications requiring the highest level of protection in the toughest environments. This unfilled epoxy based resin has a low viscosity and good adhesion property, which makes it easy to infuse on any surface. It is useful for applications that include filling, patching, insulating and more.3M Scotchcast Electrical Resin 5N has a low gel point rating to ensure curing at room temperature. Since it is resistant to reversion, the performance of the resin will not reduce after curing. This rigid resin is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers good electrical insulating property to the resin. It has a high flash point, helping prevent any fire hazard in electrical components due to quick ignition. Since the resin exhibits hydrolytic stability property, it minimizes quick chemical decomposition, thus providing long lasting usage. MIL I 16923E, MIL I 16923G Certified and RoHS 2011/65/EU Compliant.

Extra Details

  • 15 Barcol hardness
  • Chemical- and moisture-resistant
  • Elongates 7% longer than its original size for easy insulation or wrapping
  • Has 18-minute gel time at 140 ?? (60 ??)
  • MIL-I-16923E, MIL-I-16923G Certified and RoHS 2011/65/EU Compliant
  • Useful for coating coils, transformers, motors, modules, electrical and electronic components
  • Withstands a temperature range of 32 to 266 ?? (0 to 130 ??)

Data Sheet

  1. Tech Data Sheet
  2. Safety Data Sheet
