3M Products & Supplies

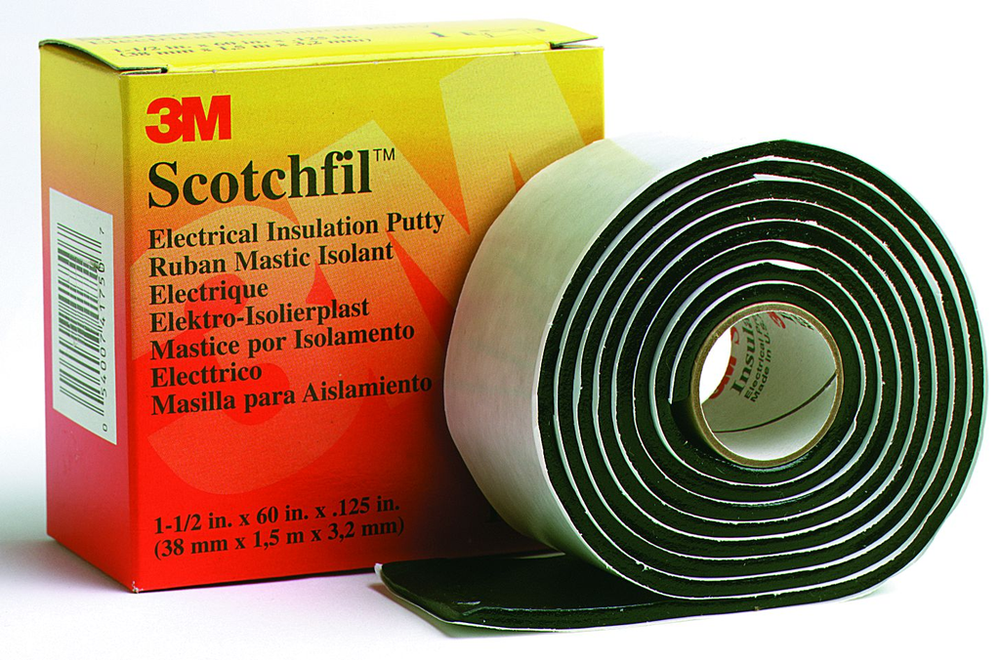

3M™ Scotchfil™ Electrical Insulation Putty, 1-1/2 in x 60 in, 1 roll/carton, 12 rolls/case - 7000006089

Sold As: 12-Pack
SKU: 7000006089
MPN: 7000006089
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007417507
3M ID: 80610833727
5 Digit UPC: 41750
$268.90 ($22.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchfil™ Electrical Insulation Putty comes in a tape form that is used to insulate irregular surfaces like fittings and valves. This self fusing, electrical grade tape can be stretched or wrapped and helps to insulate connections up to 600V. It withstands a wide temperature range of 32 to 176 °F (0 to 80 °C).

Features

  • Non-corrosive mastic adhesive in a flexible tape form
  • Suitable for temperatures from 32 to 176 °F (0 to 80 °C).
  • UL Listed and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric) UOMm
Temperature Protected Till80.0
Total Thickness UOMmm
Maximum Temperature Rating (Celsius) UOMDegree
Maximum Temperature Rating (Fahrenheit)176.0
Tape Length (Metric) UOMm
Backing Thickness (Metric) UOMmm
Elongation UOM%
Solution forWireless Network: Infrastructure Accessories
Tape Width (Metric) UOMmm
Shelf Life1825
InsulatedYes
ApplicationSealing
High Temperature Rating176°F (80°C)
Maximum Temperature Rating (Fahrenheit) UOMDegree
Overall Length (Metric)1.524
Self-extinguishingNo
Minimum Temperature Rating (Celsius)0.0
Operating Temperature (Fahrenheit)32 °F to 176 °F
Overall Width (Imperial) UOMin
Overall Width (Imperial)1.5
Overall Width (Metric) UOMmm
Low Temperature Rating32°F (0°C)
Total Thickness3.175
VulcanizingNo
Minimum Temperature Rating (Fahrenheit) UOMDegree
Dielectric Strength (V/mil)22000
Maximum Temperature Rating (Celsius)80.0
Suitable for High VoltageNo
Overall Width (Metric)38.1
Temperature Protected Till UOMDegree
Tape Width (Metric)38.0
Product ColorBlack
Overall Length (Imperial) UOMin
Tape GradePremium
Minimum Temperature Rating (Celsius) UOMDegree
Elongation at Break10%
Tape Length (Metric)1.5
UV ResistantYes
Adhesive MaterialMastic
Minimum Temperature Rating (Fahrenheit)32.0
Product TypeMastic tape
MaterialElectrical Grade Putty
Self-stickingYes
Backing MaterialElectrical Insulation Putty
Tape TypeSealing and Insulating Mastic
Voltage ApplicationLow Voltage
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)60.0
Shelf Life UOMYear
Backing Thickness (Metric)3.175
Product MarketsElectrical Construction
Operating Temperature (Celsius)0 to 80 Degree Celsius
