3M Products & Supplies

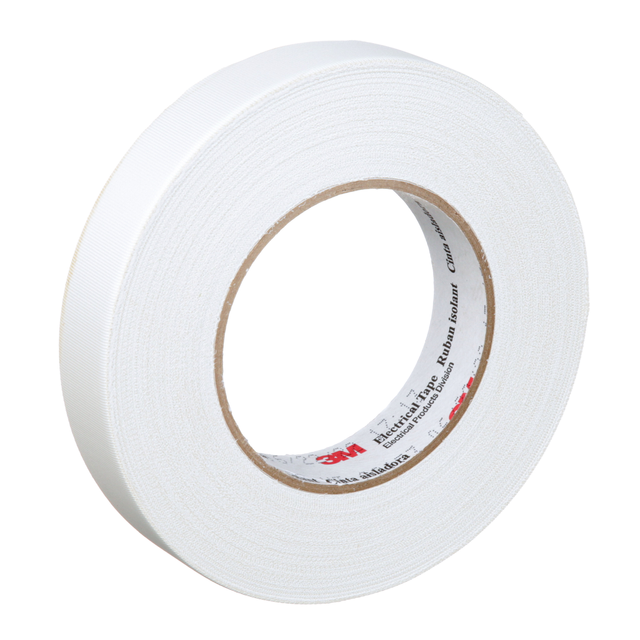

3M™ Glass Cloth Electrical Tape 27, 1 1/2 in x 60 yd, 24 Rolls/Case - 7100057261

Sold As: 24-Pack
SKU: 7100057261
MPN: 7100057261
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007274780
3M ID: 80012020154
5 Digit UPC: 27478
$1,734.57 ($72.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

  • 0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
  • Adhesive is specially designed and prepared to provide corrosion protection
  • For use as a coil cover, anchor, banding and core, layer and crossover insulation
  • Printable
  • Edge-tear resistant, conformable, and abrasion resistant
  • Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)7.0
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialGlass Cloth
Minimum Operating Temperature (Celsius)0.0
Tape GradeProfessional
ApplicationElectrical Maintenance; Insulation
Overall Width (Imperial)1.5
Overall Length (Metric)54.8
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)5.0
Overall Length (Imperial)60.0
Insulation Resistance5 x 10^1 megohms
Dielectric Strength UOMV
Product ColorWhite
Minimum Operating Temperature (Fahrenheit)32.0
Total Tape Thickness without Liner (Metric)0.178
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength2725.0
Overall Length (Imperial) UOMyd
Overall Width (Metric)38.1
Maximum Operating Temperature (Celsius)150.0
Units per Case24.0
Adhesive TypeRubber
Product MarketsElectrical Construction
Elongation at Break5
Maximum Operating Temperature (Fahrenheit)302.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.127
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial) UOMmil
Electrolytic Corrosion Factor0.9
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
