3M Products & Supplies

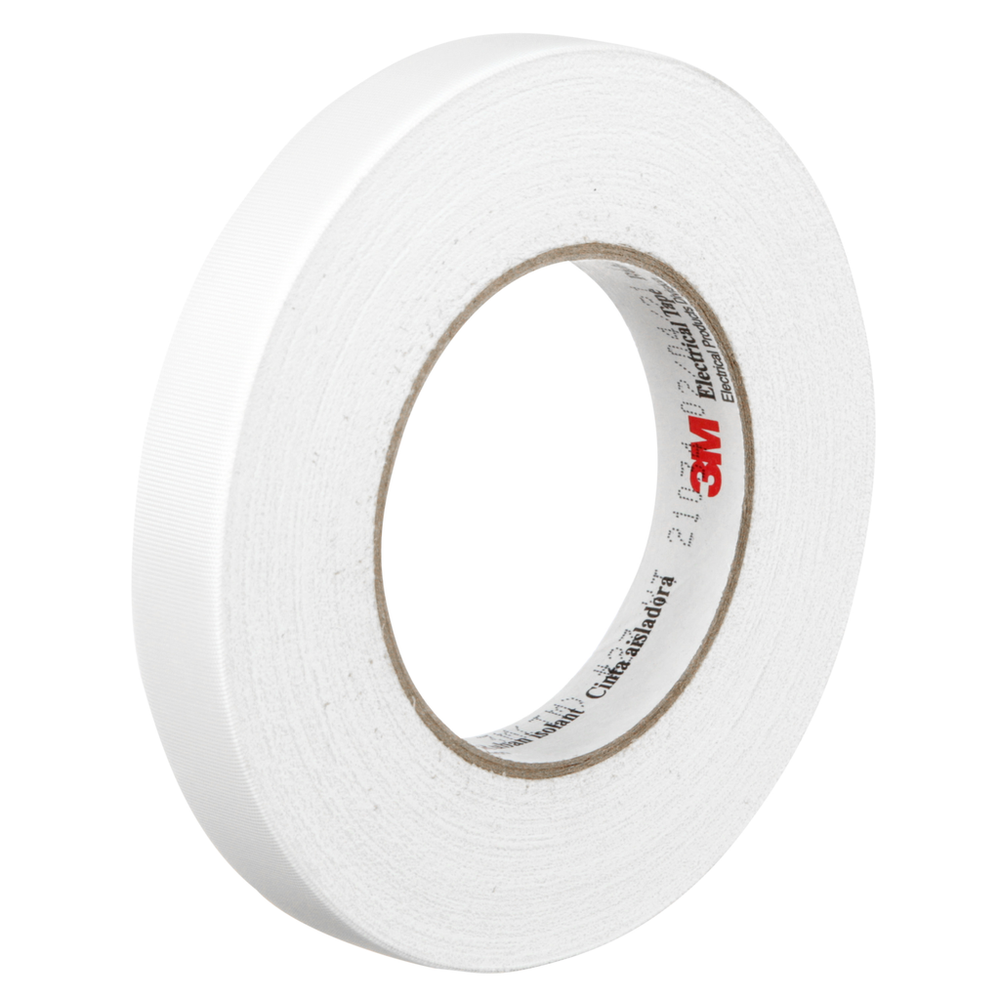

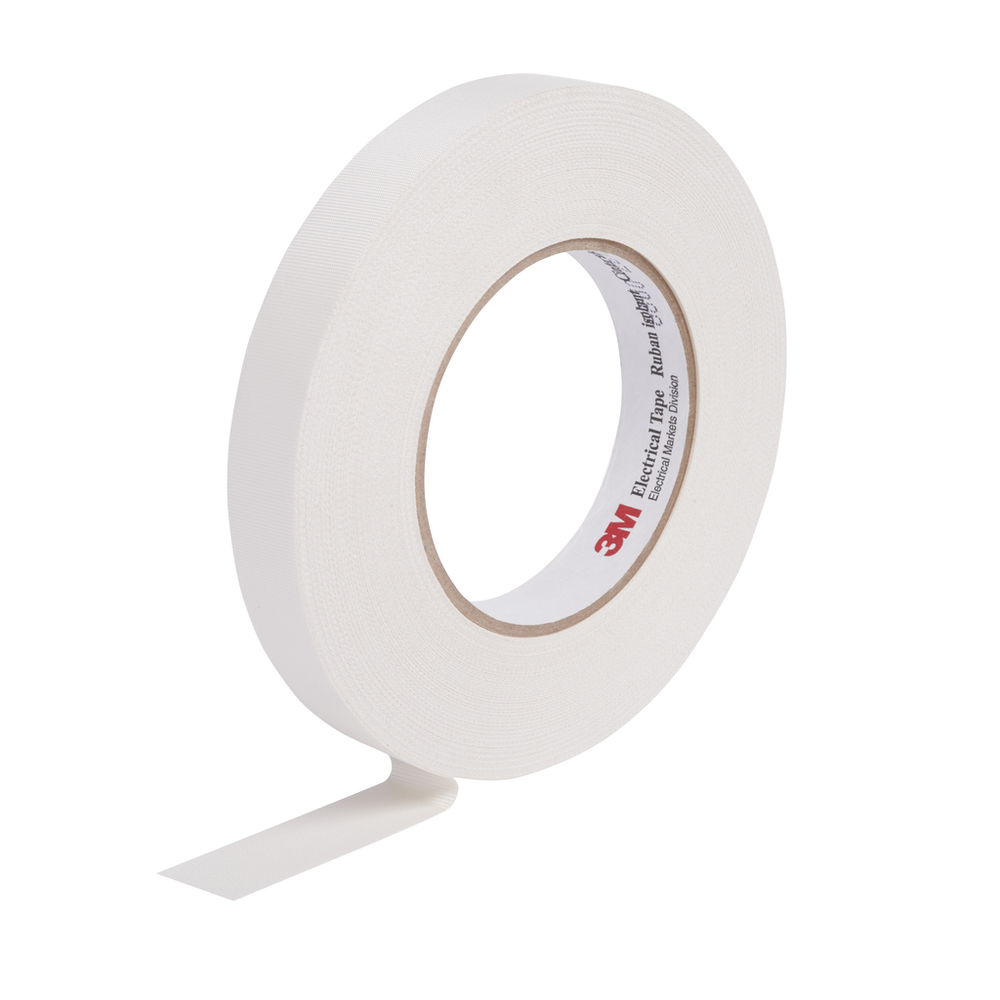

3M™ Glass Cloth Electrical Tape 27, 1/4 in x 60 yd - 7010297639

Sold As: 144-Pack
SKU: 7010297639
MPN: 7010297639
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138404475
3M ID: 80610841266
5 Digit UPC: 40447
$1,661.38 ($11.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

  • Printable
  • Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
  • For use as a coil cover, anchor, banding and core, layer and crossover insulation
  • Adhesive is specially designed and prepared to provide corrosion protection
  • Edge-tear resistant, conformable, and abrasion resistant
  • 0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Maximum Operating Temperature (Celsius)150.0
Electrolytic Corrosion Factor0.9
Total Tape Thickness without Liner (Imperial)7.0
Product ColorWhite
Product MarketsElectrical Construction
Dielectric Strength2725.0
Minimum Operating Temperature (Celsius)0.0
Dielectric Strength UOMV
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)6.35
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.127
Adhesive TypeRubber
Total Tape Thickness without Liner (Metric)0.178
Maximum Operating Temperature (Fahrenheit)302.0
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMYear
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial)5.0
Total Tape Thickness without Liner (Imperial) UOMmil
ApplicationElectrical Maintenance; Insulation
Elongation at Break5
Overall Length (Metric) UOMm
Backing (Carrier) MaterialGlass Cloth
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)32.0
Overall Width (Imperial) UOMin
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Overall Width (Imperial)0.25
Tape GradeProfessional
Overall Length (Imperial)60.0
Insulation Resistance5 x 10^1 megohms
Overall Length (Metric)54.8
