3M Products & Supplies

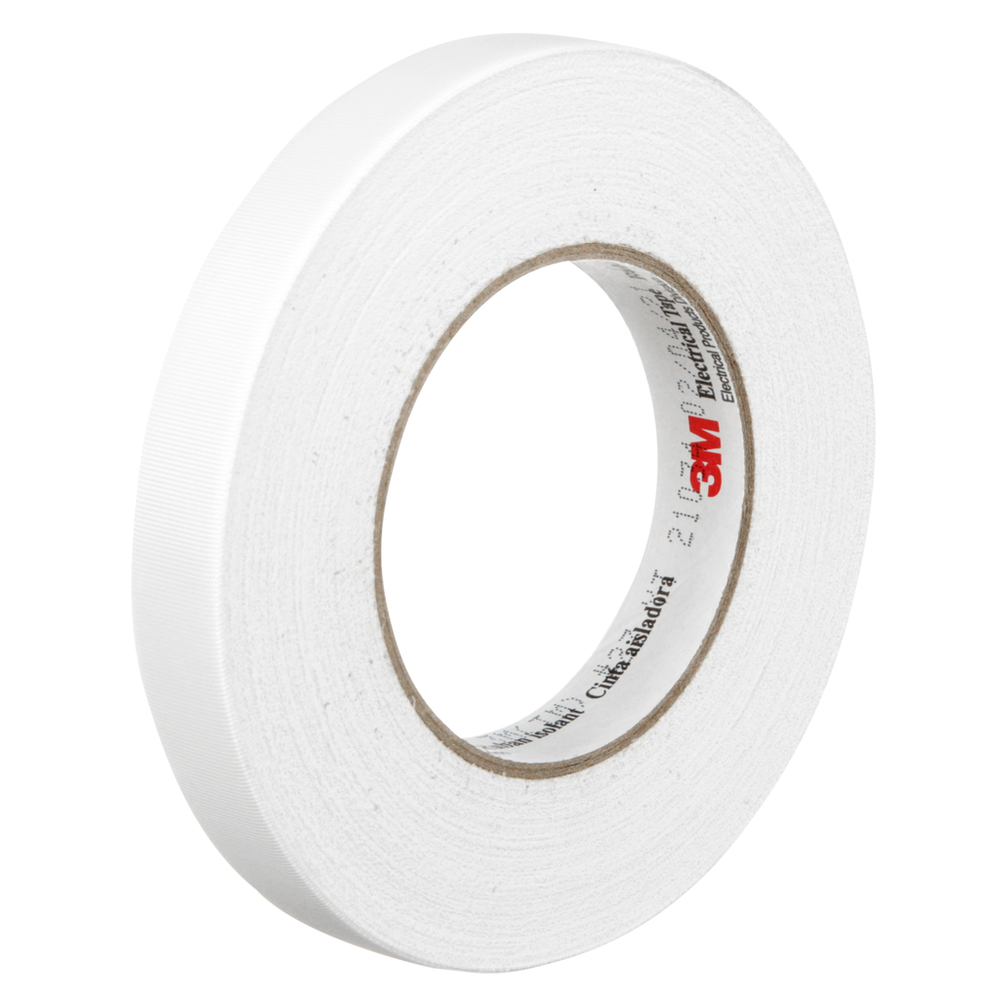

3M™ Glass Cloth Electrical Tape 27, 3/8 in x 60 yd - 7010319995

Sold As: 96-Pack
SKU: 7010319995
MPN: 7010319995
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138404062
3M ID: 80002020099
5 Digit UPC: 40406
$1,659.94 ($17.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

  • Printable
  • 0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
  • For use as a coil cover, anchor, banding and core, layer and crossover insulation
  • Adhesive is specially designed and prepared to provide corrosion protection
  • Edge-tear resistant, conformable, and abrasion resistant
  • Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Imperial) UOMyd
Tape GradeProfessional
Minimum Operating Temperature (Fahrenheit)32.0
Overall Length (Metric)54.8
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)7.0
Product MarketsElectrical Construction
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Backing (Carrier) Thickness (Imperial)5.0
Elongation at Break5
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorWhite
Maximum Operating Temperature (Celsius) UOMDegree
Electrolytic Corrosion Factor0.9
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Dielectric Strength UOMV
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)150.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)9.53
Overall Length (Imperial)60.0
Total Tape Thickness without Liner (Metric)0.178
Minimum Operating Temperature (Celsius)0.0
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) MaterialGlass Cloth
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeRubber
Overall Width (Imperial)0.375
Maximum Operating Temperature (Fahrenheit)302.0
ApplicationElectrical Maintenance; Insulation
Insulation Resistance5 x 10^1 megohms
Backing (Carrier) Thickness (Metric)0.127
Dielectric Strength2725.0
