3M Products & Supplies

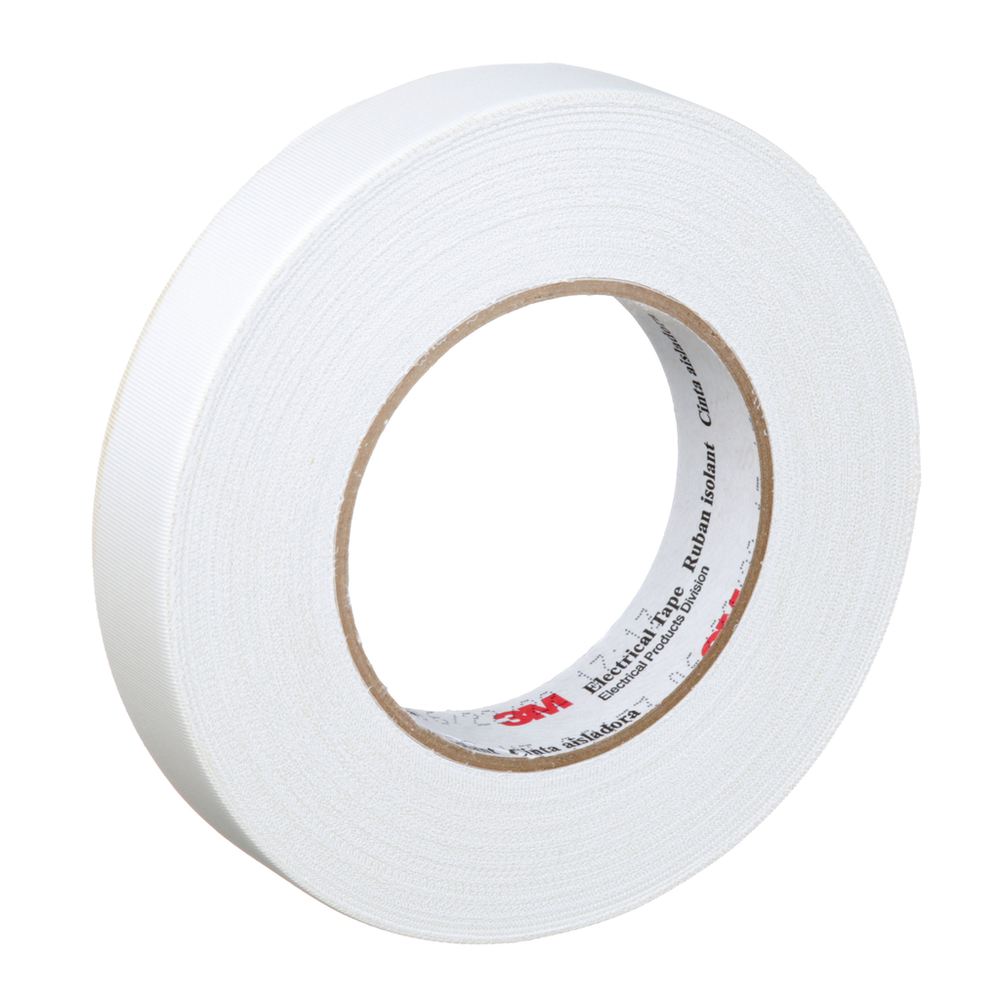

3M™ Glass Cloth Electrical Tape 27, 1 in x 60 yd, Bulk, Mini-case - 7000031347

Sold As: 9-Pack
SKU: 7000031347
MPN: 7000031347
For an accurate lead time please contact us
UPC: 00054007105701
3M ID: 80012020139
5 Digit UPC: 10570
$414.34 ($46.04 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

  • For use as a coil cover, anchor, banding and core, layer and crossover insulation
  • Edge-tear resistant, conformable, and abrasion resistant
  • Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
  • Adhesive is specially designed and prepared to provide corrosion protection
  • Printable
  • 0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)60.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationElectrical Maintenance; Insulation
Backing (Carrier) Thickness (Imperial) UOMmil
Adhesive TypeRubber
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)32.0
Product MarketsElectrical Construction
Backing (Carrier) Thickness (Metric)0.127
Dielectric Strength2725.0
Overall Width (Imperial)1.0
Backing (Carrier) Thickness (Imperial)5.0
Total Tape Thickness without Liner (Imperial)7.0
Shelf Life UOMYear
Backing (Carrier) MaterialGlass Cloth
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorWhite
Total Tape Thickness without Liner (Metric)0.178
Minimum Operating Temperature (Celsius)0.0
Maximum Operating Temperature (Fahrenheit)302.0
Overall Length (Metric)54.8
Tape GradeProfessional
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius)150.0
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Insulation Resistance5 x 10^1 megohms
Units per Case10.0
Overall Length (Metric) UOMm
Elongation at Break5
Electrolytic Corrosion Factor0.9
Overall Width (Metric)25.4
Overall Width (Imperial) UOMin
Dielectric Strength UOMV
