3M Products & Supplies

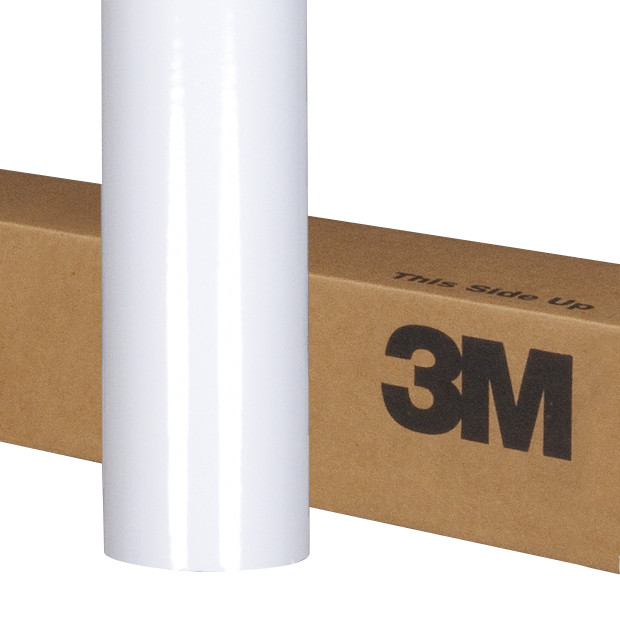

3M™ Scotchlite™ Reflective Graphic Film 680-10, White, 36 in x 100 yd, 1 Roll/Case - 7010344939

SKU: 7010344939
MPN: 7010344939
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051135277430
3M ID: 75030107504
5 Digit UPC: 27743
$5,453.96 each
Hurry up! Current stock:

Product Description

3M™ Scotchlite™ Reflective Graphic Film 680 is a 7mil, retroreflective, flexible engineer-grade film designed to provide 24/7 visibility for branding and promoting safety. This film has an expected performance life of up to 9 years and has a permanent, pressure activated adhesive. 3M™ MCS™ Warranty is available for this film. Recommended for commercial vehicles, rail & bus graphics, sign graphics and striping. Can be die cut into decals and shapes for specific areas of vehicle or wall. Shines through even when wet and at wide viewing angles. Available in multiple colors.

Features

  • Up to 9-year expected performance life
  • Pressure-activated adhesive for easy sliding and tacking
  • Provides 24/7 visibility (retro-reflective)
  • Available in multiple colors
  • Recommended for commercial vehicles, rail & bus graphics, sign graphics, striping and can be die cut into decals and shapes for specific areas.
  • Permanent Adhesive
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Metric) UOMm
Minimum Service Temperature (Fahrenheit)-29.2
Adhesive TypeSolvent Acrylic
Service Life7.0 Year
Overall Width (Imperial)36.0
Converting ProcessElectrocut
Product ColorWhite
Maximum Service Temperature (Celsius)93.0
Minimum Application Temperature (Celsius)13.0
Warranty CoverageEligible for 3M™ MCS™ Warranty
FeaturesPressure-sensitive Adhesive; Slideability
Overall Length (Imperial)100.0
Liner MaterialPE Coated Kraft Paper
Maximum Service Temperature (Fahrenheit)199.4
Minimum Application Temperature (Fahrenheit)55.4
Application MethodWet
Minimum Service Temperature (Celsius)-34.0
Surface FinishLuster
SubstrateAluminum; Automotive Paint
Adhesion to Substrate22 N/25mm to Aluminum
RemovabilityNot Removable
Interior/ExteriorExterior
Overall Width (Imperial) UOMin
Overall Width (Metric)0.91
Imaging MethodSolvent Screenprint; Thermal Transfer; UV Screenprint
OpacityRetroreflective
Application SurfaceCorrugation
Product UsageNon-illuminated Displays; Non-illuminated Signage; Public transport; Trailers; Trucks; Vehicles; Watercraft
Overall Length (Metric) UOMm
Product Series680
Film TypePVC
Overall Length (Metric)91.0
Overall Length (Imperial) UOMyd
