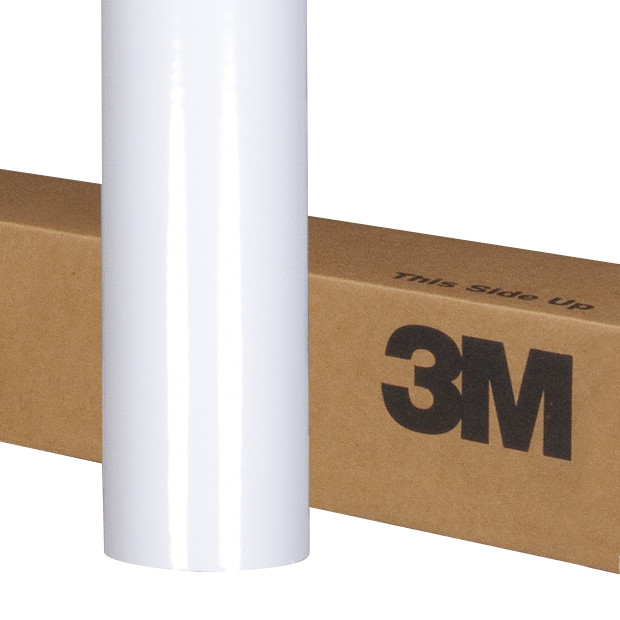

3M™ Scotchlite™ Reflective Graphic Film 680-10, White, 48 in x 200 yd, 1 Roll/Case - 7010535286

SKU: 7010535286
MPN: 7010535286
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060820582
3M ID: CY998630925
5 Digit UPC: 82058
$12,985.63 each
Hurry up! Current stock:

Product Description

3M™ Scotchlite™ Reflective Graphic Film 680 is a 7mil, retroreflective, flexible engineer-grade film designed to provide 24/7 visibility for branding and promoting safety. This film has an expected performance life of up to 9 years and has a permanent, pressure activated adhesive. 3M™ MCS™ Warranty is available for this film. Recommended for commercial vehicles, rail & bus graphics, sign graphics and striping. Can be die cut into decals and shapes for specific areas of vehicle or wall. Shines through even when wet and at wide viewing angles. Available in multiple colors.

Features

  • Permanent Adhesive
  • Up to 9-year expected performance life
  • Pressure-activated adhesive for easy sliding and tacking
  • Provides 24/7 visibility (retro-reflective)
  • Recommended for commercial vehicles, rail & bus graphics, sign graphics, striping and can be die cut into decals and shapes for specific areas.
  • Available in multiple colors
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Service Temperature (Fahrenheit)-29.2
Product Series680
Product ColorWhite
Application SurfaceCorrugation
Adhesion to Substrate22 N/25mm to Aluminum
Interior/ExteriorExterior
Film TypePVC
Adhesive TypeSolvent Acrylic
Overall Width (Metric) UOMmm
OpacityRetroreflective
SubstrateAluminum; Automotive Paint
Overall Width (Metric)1220.0
Minimum Application Temperature (Fahrenheit)55.4
Warranty CoverageEligible for 3M™ MCS™ Warranty
Minimum Service Temperature (Celsius)-34.0
Overall Length (Imperial) UOMyd
Liner MaterialPE Coated Kraft Paper
Maximum Service Temperature (Fahrenheit)199.4
Maximum Service Temperature (Celsius)93.0
Service Life7.0 Year
RemovabilityNot Removable
Overall Width (Imperial) UOMin
Overall Width (Imperial)48.0
Surface FinishLuster
Minimum Application Temperature (Celsius)13.0
Overall Length (Imperial)200.0
Imaging MethodSolvent Screenprint; Thermal Transfer; UV Screenprint
Product UsageNon-illuminated Displays; Non-illuminated Signage; Public transport; Trailers; Trucks; Vehicles; Watercraft
FeaturesPressure-sensitive Adhesive; Slideability
Overall Length (Metric)182.9
Overall Length (Metric) UOMm
Converting ProcessElectrocut
Application MethodWet
