3M Products & Supplies

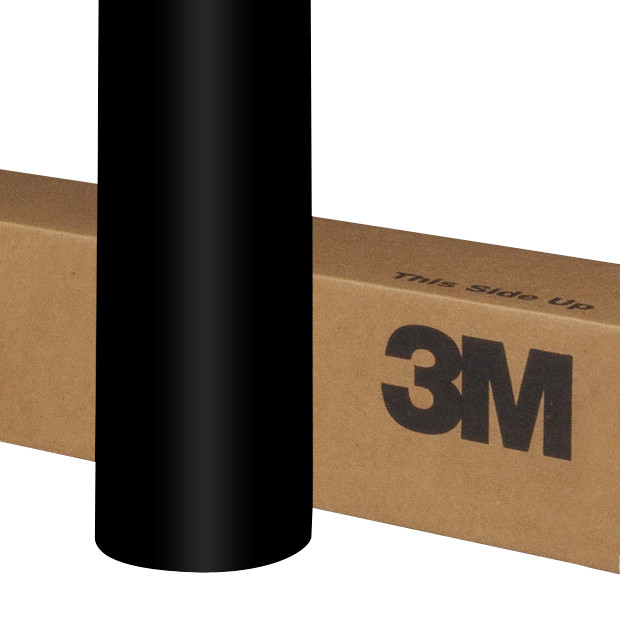

3M™ Scotchlite™ Reflective Graphic Film 680-85, Black, 48 in x 100 yd, 1 Roll/Case - 7010535287

SKU: 7010535287
MPN: 7010535287
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060820599
3M ID: CY998630933
5 Digit UPC: 82059
$7,041.69 each
Hurry up! Current stock:

Product Description

3M™ Scotchlite™ Reflective Graphic Film 680 is a 7mil, retroreflective, flexible engineer-grade film designed to provide 24/7 visibility for branding and promoting safety. This film has an expected performance life of up to 9 years and has a permanent, pressure activated adhesive. 3M™ MCS™ Warranty is available for this film. Recommended for commercial vehicles, rail & bus graphics, sign graphics and striping. Can be die cut into decals and shapes for specific areas of vehicle or wall. Shines through even when wet and at wide viewing angles. Available in multiple colors.

Features

  • Available in multiple colors
  • Up to 9-year expected performance life
  • Permanent Adhesive
  • Provides 24/7 visibility (retro-reflective)
  • Pressure-activated adhesive for easy sliding and tacking
  • Recommended for commercial vehicles, rail & bus graphics, sign graphics, striping and can be die cut into decals and shapes for specific areas.
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)48.0
Adhesion to Substrate22 N/25mm to Aluminum
Minimum Service Temperature (Fahrenheit)-29.2
Overall Width (Metric)1220.0
RemovabilityNot Removable
Service Life7.0 Year
Warranty CoverageEligible for 3M™ MCS™ Warranty
Application MethodWet
Imaging MethodSolvent Screenprint; Thermal Transfer; UV Screenprint
OpacityRetroreflective
Converting ProcessElectrocut
Overall Width (Metric) UOMmm
Product Series680
Surface FinishLuster
Application SurfaceCorrugation
FeaturesPressure-sensitive Adhesive; Slideability
Maximum Service Temperature (Fahrenheit)199.4
Overall Length (Imperial)100.0
Product ColorBlack
Overall Length (Metric)91.4
Maximum Service Temperature (Celsius)93.0
Minimum Application Temperature (Celsius)13.0
Interior/ExteriorExterior
Minimum Application Temperature (Fahrenheit)55.4
Product UsageNon-illuminated Displays; Non-illuminated Signage; Public transport; Trailers; Trucks; Vehicles; Watercraft
Film TypePVC
SubstrateAluminum; Automotive Paint
Adhesive TypeSolvent Acrylic
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Liner MaterialPE Coated Kraft Paper
Minimum Service Temperature (Celsius)-34.0
