3M Products & Supplies

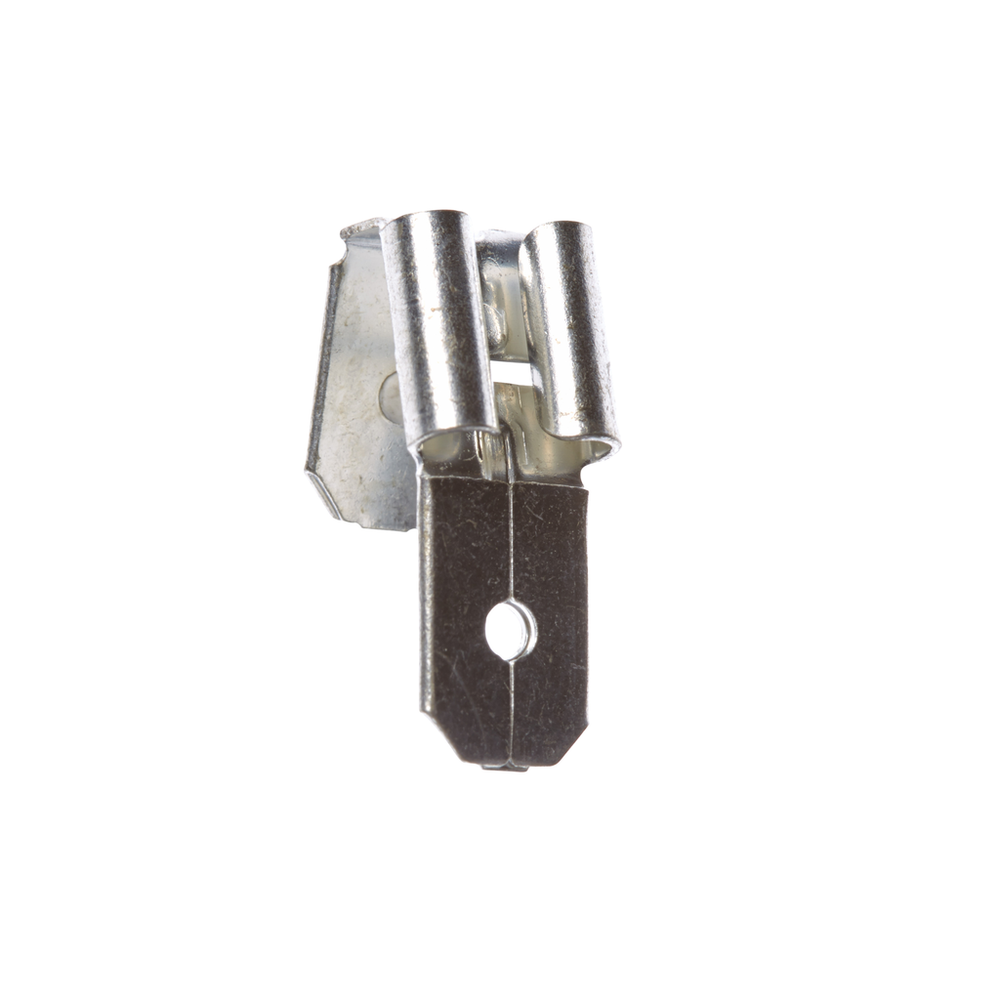

3M™ Scotchlok™ Adapter, Non-Insulated Double Male-Female, MA250DMFMK-A, Boxed, 500/Case - 7100165137

Sold As: 500-Pack
SKU: 7100165137
MPN: 7100165137
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128574515
3M ID: 80611440514
5 Digit UPC: 57451
$183.95 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Double Male-Female Adapters interconnects 2 disconnects that are already attached to wires. The adapter withstands a maximum temperature of 347 degrees F (175 degrees C). Durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Perfect for various wire tapping and splicing applications
  • Mates with 0.25-in wide female and male tab
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Interconnects two connectors that are already attached to wires
  • Features a non-insulated, butted-seam barrel
  • Made of durable brass for good conductivity and tin-plated for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Units per Case500.0
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.25
Insulation MaterialNon-insulated
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mates with Female & Male Tab Width (W')0.25 Inch
Barrel StyleButted
Disconnect TypeFemale|Male
Terminal StyleAdapter
Pad Width0.25
Terminal TypeDisconnect
Connection Width (Metric) UOMmm
Connection Width (Metric)6.35
Packaging500 per bulk box
Fastener OrientationDouble Male-Female
UL File NumberE70512
Overall Length (Imperial)0.7
Overall Length (Imperial) UOMin
