3M Products & Supplies

3M™ Scotchlok™ Adapter, Non-Insulated Double Male-Female, MA250DMMFK, 500/Case - 7000005897

Sold As: 500-Pack
SKU: 7000005897
MPN: 7000005897
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007022732
3M ID: 80610057087
5 Digit UPC: 2273
$153.56 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Double Male-Female Adapters interconnects 2 disconnects that are already attached to wires. The adapter withstands a maximum temperature of 347 degrees F (175 degrees C). Durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Features a non-insulated, butted-seam barrel
  • Perfect for various wire tapping and splicing applications
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Interconnects two connectors that are already attached to wires
  • Mates with 0.25-in wide female and male tab
  • Made of durable brass for good conductivity and tin-plated for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Pad Width0.25
Packaging500 per bulk box
Disconnect TypeFemale|Male
Barrel StyleButted
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal TypeDisconnect
Maximum Insulation Outside Diameter0.145 in
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Metric)3.7
Terminal StyleAdapter
Maximum Operating Temperature (Celsius) UOMDegree

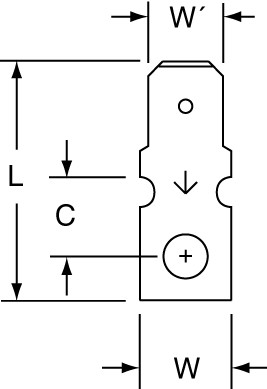

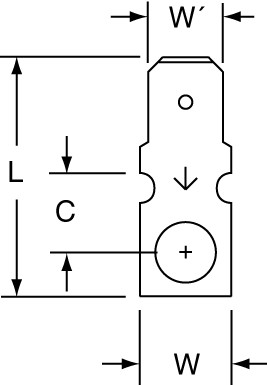

Mates with Female & Male Tab Width (W')0.25 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Connection Width (Metric)6.35
Fastener OrientationDouble Male-Female
MaterialPlastic
Connection Width (Imperial) UOMin
Overall Length (Imperial)0.76
Units per Case500.0
Product TypeConnector
Maximum Voltage Rating600 to 1000 V
Maximum Recommended Voltage Rating606.0
Connection Width (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)482.0
Maximum Operating Temperature (Celsius)250.0
UL File NumberE70512
Insulation MaterialNon-insulated
Overall Length (Imperial) UOMin
