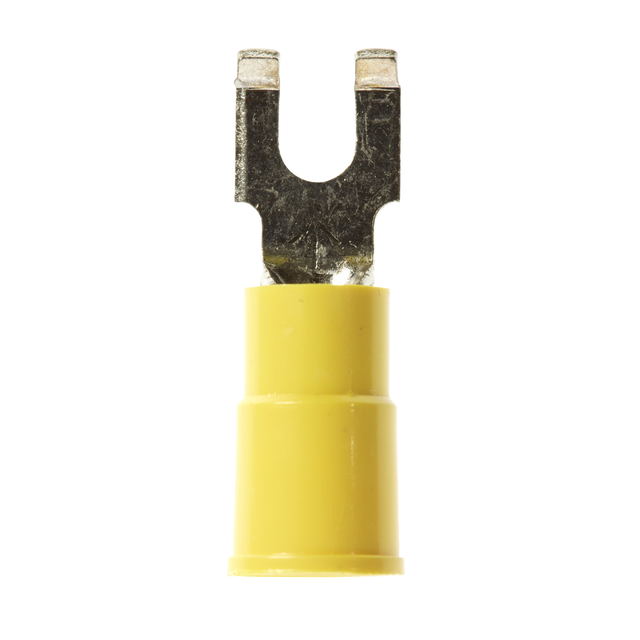

3M™ Scotchlok™ Block Flanged Fork, Vinyl Insulated Butted Seam MVU10-10FFBK, 12-10 AWG, 500/Case - 7100164125

Sold As: 500-Pack
SKU: 7100164125
MPN: 7100164125
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020400
3M ID: 80610050298
5 Digit UPC: 2040
$214.66 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Suitable for use in a terminal block
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)12 AWG
Barrel StyleButted
UL File NumberE23438
Insulation MaterialVinyl
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleFlanged Block
Terminal TypeFork
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)5.26 mm²
Overall Length (Imperial)1.03
Units per Case500.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Fork TypeFlanged Block
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial)0.32
Stud Size#10
Dimension E0.84 Inch
Maximum Conductor Size (Imperial)10 AWG
Clearance (C)0.29 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel Length (Imperial)0.25 Inch
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Packaging500 per bulk box
