3M Products & Supplies

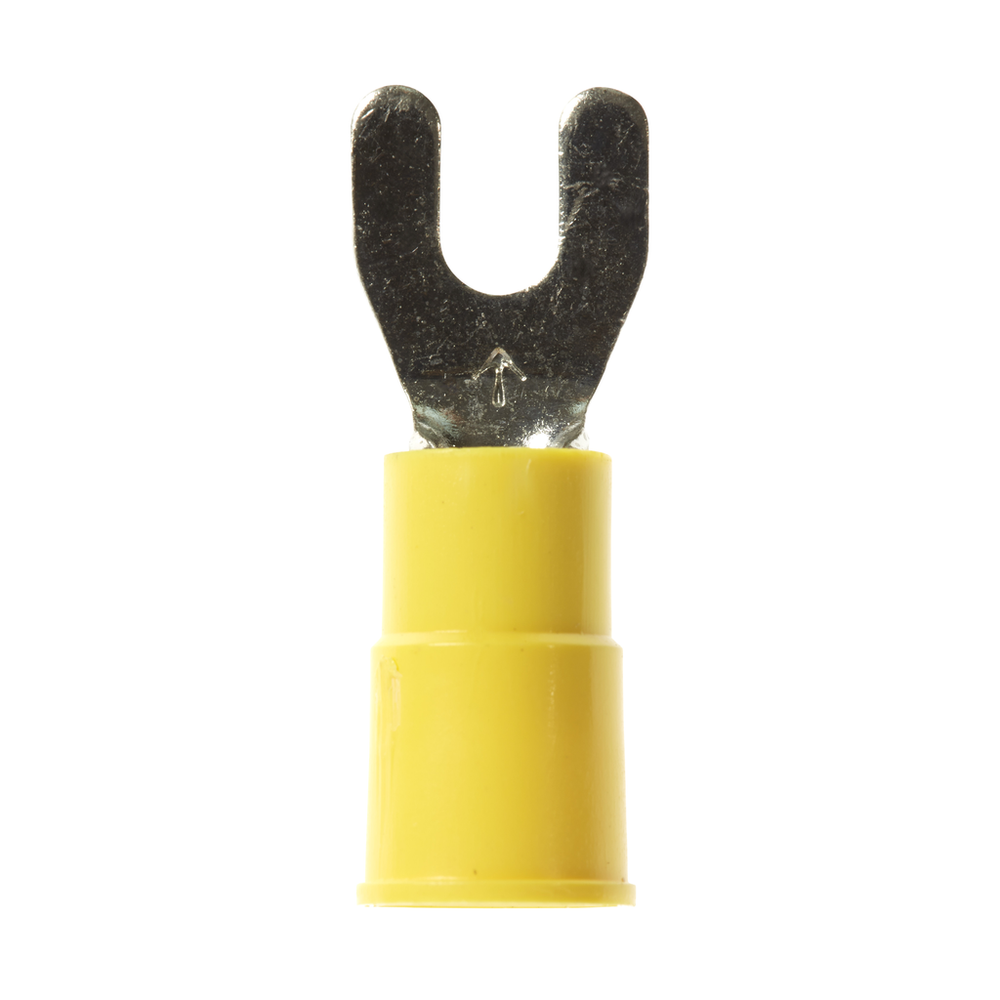

3M™ Scotchlok™ Fork, Vinyl Insulated Butted Seam MVU10-6FK, 12-10 AWG, 500/Case - 7100164104

Sold As: 500-Pack
SKU: 7100164104
MPN: 7100164104
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019848
3M ID: 80610049720
5 Digit UPC: 1984
$207.91 ($0.42 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Imperial)1.03
Overall Length (Imperial) UOMin
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Inside Diameter0.135 Inch
Packaging500 per bulk box
Overall Width (Imperial) UOMin
Fork TypeStandard
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.38
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case500.0
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel Length (Imperial)0.25 Inch
Stud Size#6
Clearance (C)0.29 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.84 Inch
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Imperial)12 AWG
Barrel StyleButted
Terminal TypeFork
Maximum Conductor Size (Metric)5.26 mm²
Insulation MaterialVinyl
